Overhaul

DISASSEMBLY

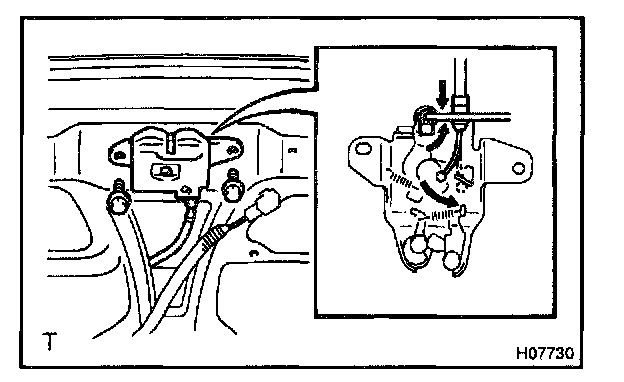

1. REMOVE DOOR LOCK




a. Remove the 2 bolts.
b. Disconnect the link and cable.
c. Remove the door lock.

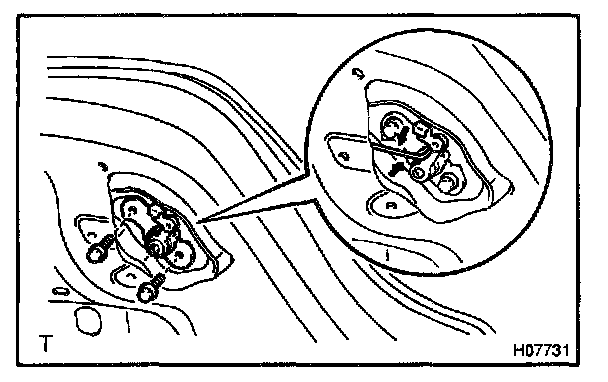

2. REMOVE KEY CYLINDER




a. Disconnect the link.
b. Remove the 2 bolts and key cylinder.

REASSEMBLY

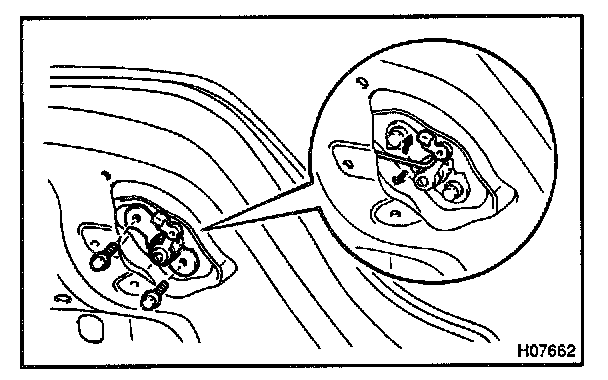

1. INSTALL KEY CYLINDER




a. Install the key cylinder with 2 bolts.
b. Connect the link.

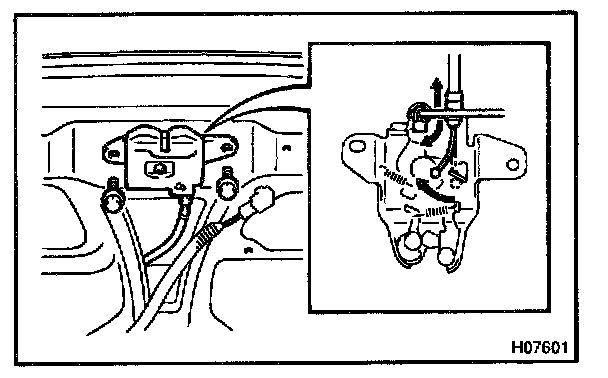

2. INSTALL DOOR LOCK




a. Connect the link and cable to the door lock.
b. Install the door lock with the 2 bolts.

Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)
