Cruise Control System

32 - Control Switch Circuit (Cruise Control Switch)

CIRCUIT DESCRIPTION

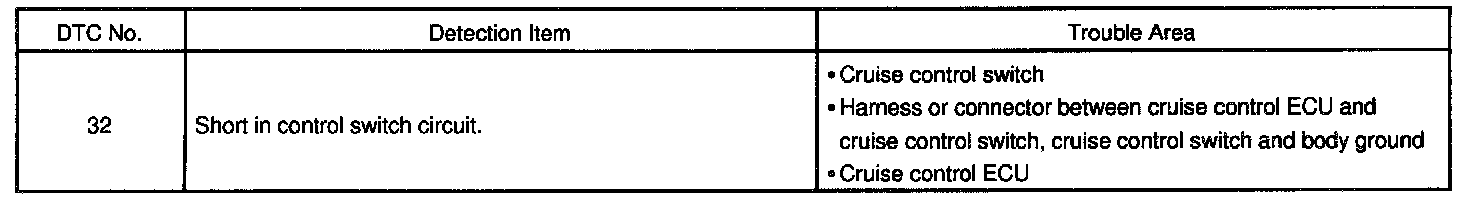

Detection Item:

This circuit carries the SET/COAST, RESUME/ACCEL and CANCEL signals (each voltage) to the ECU.

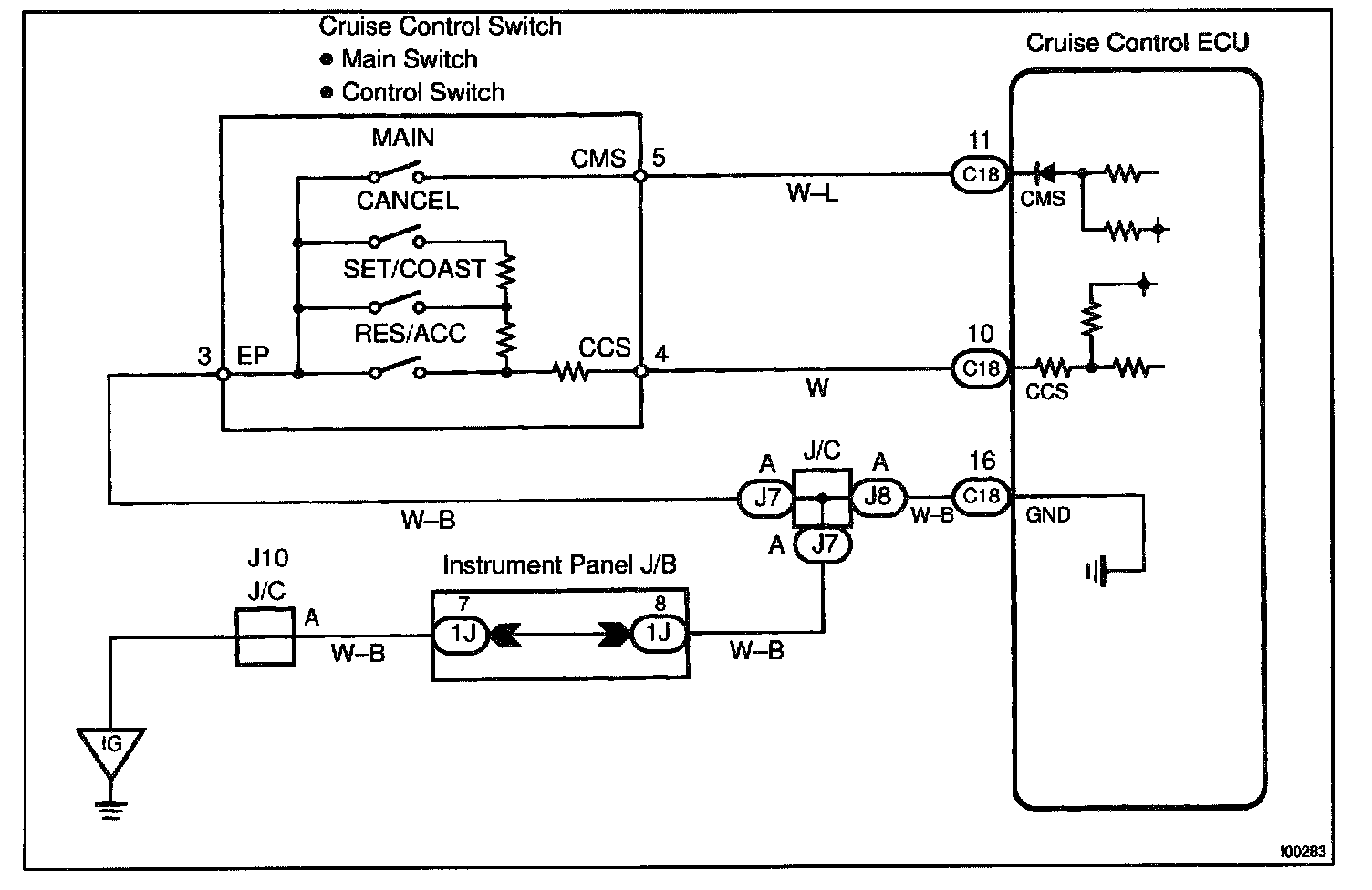

Wiring Diagram:

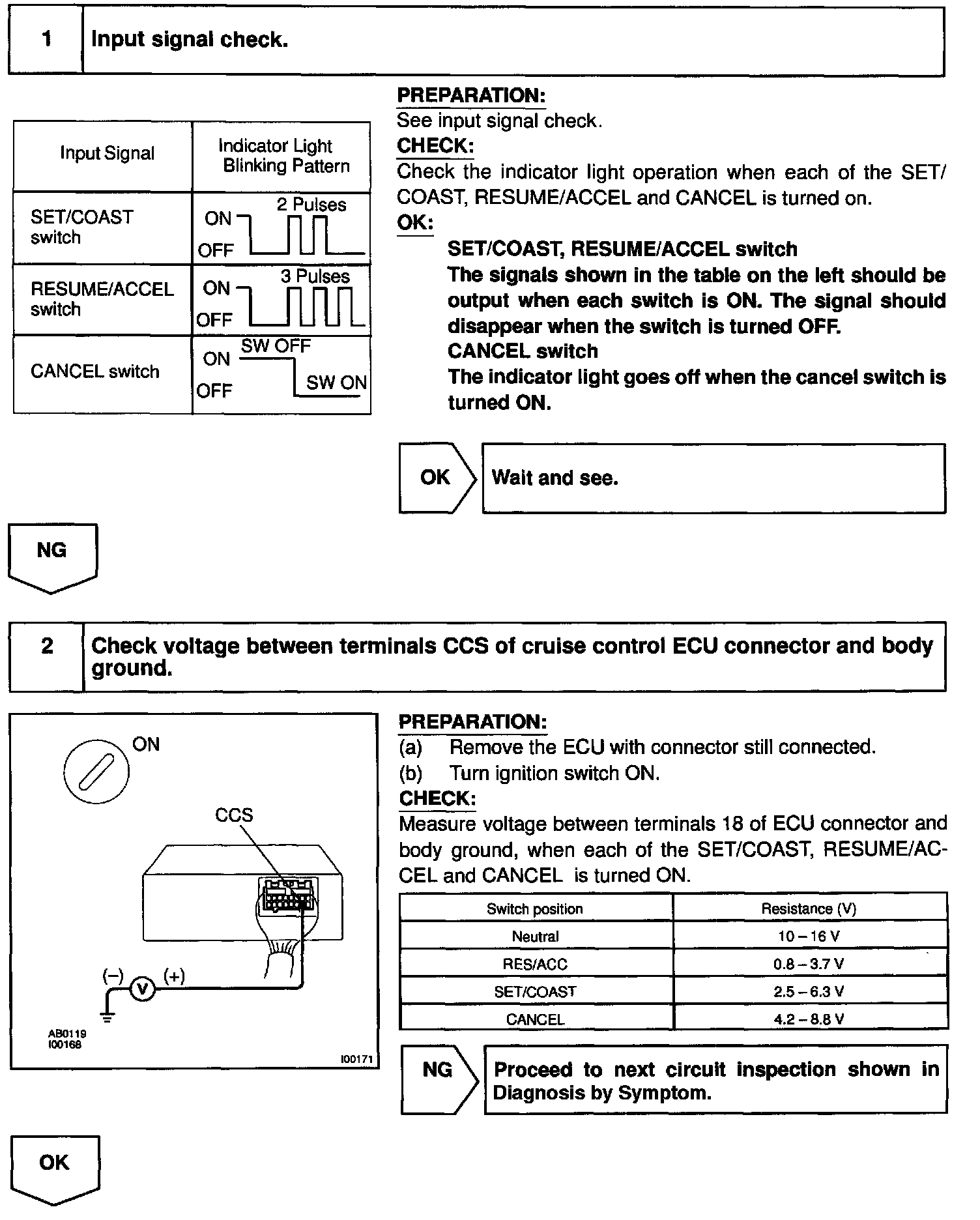

Steps 1 - 2:

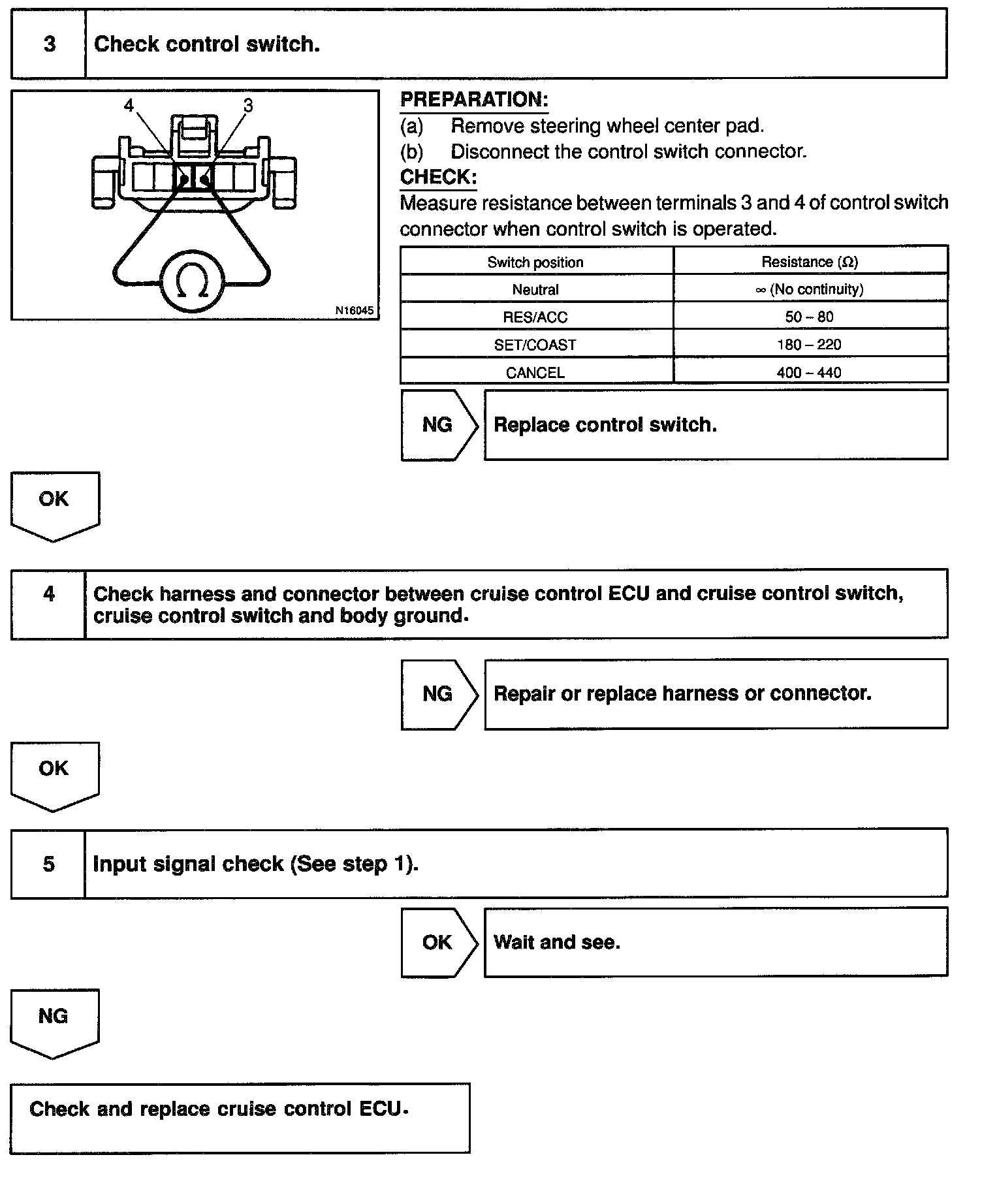

Steps 3 - 5:

INSPECTION PROCEDURE
