ABS (Antilock Brake System)

DIAGNOSTIC TROUBLE CODE CHARTS

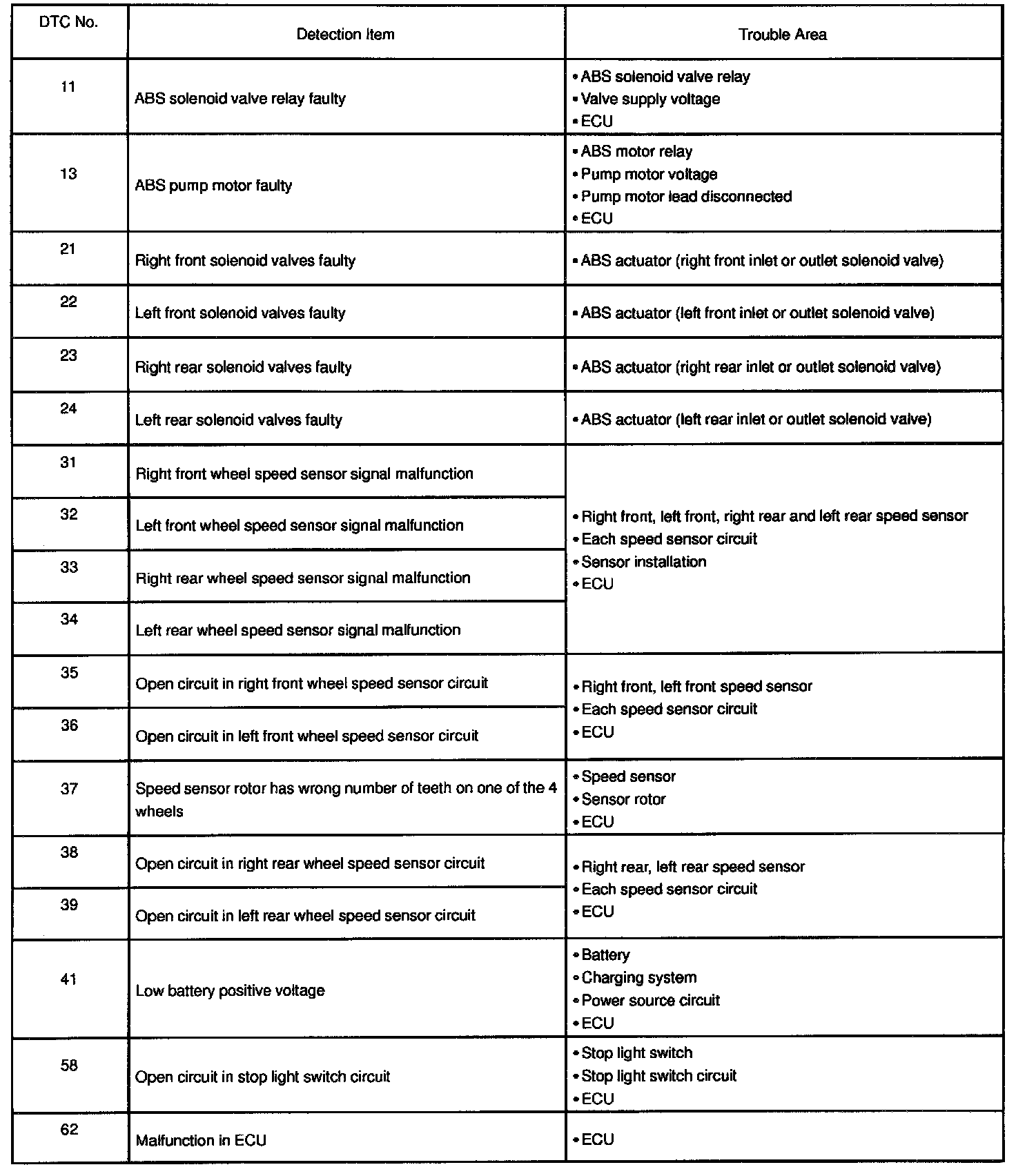

ABS System / 11 - 62:

HINT: Using SST 09843-18020 connect the terminals TC and E1 of the DLC1 or DLC2.
If a malfunction code is displayed during the DTC check, check the circuit listed in code. For details of each code, refer to the respective "DTC No." in the DTC chart.

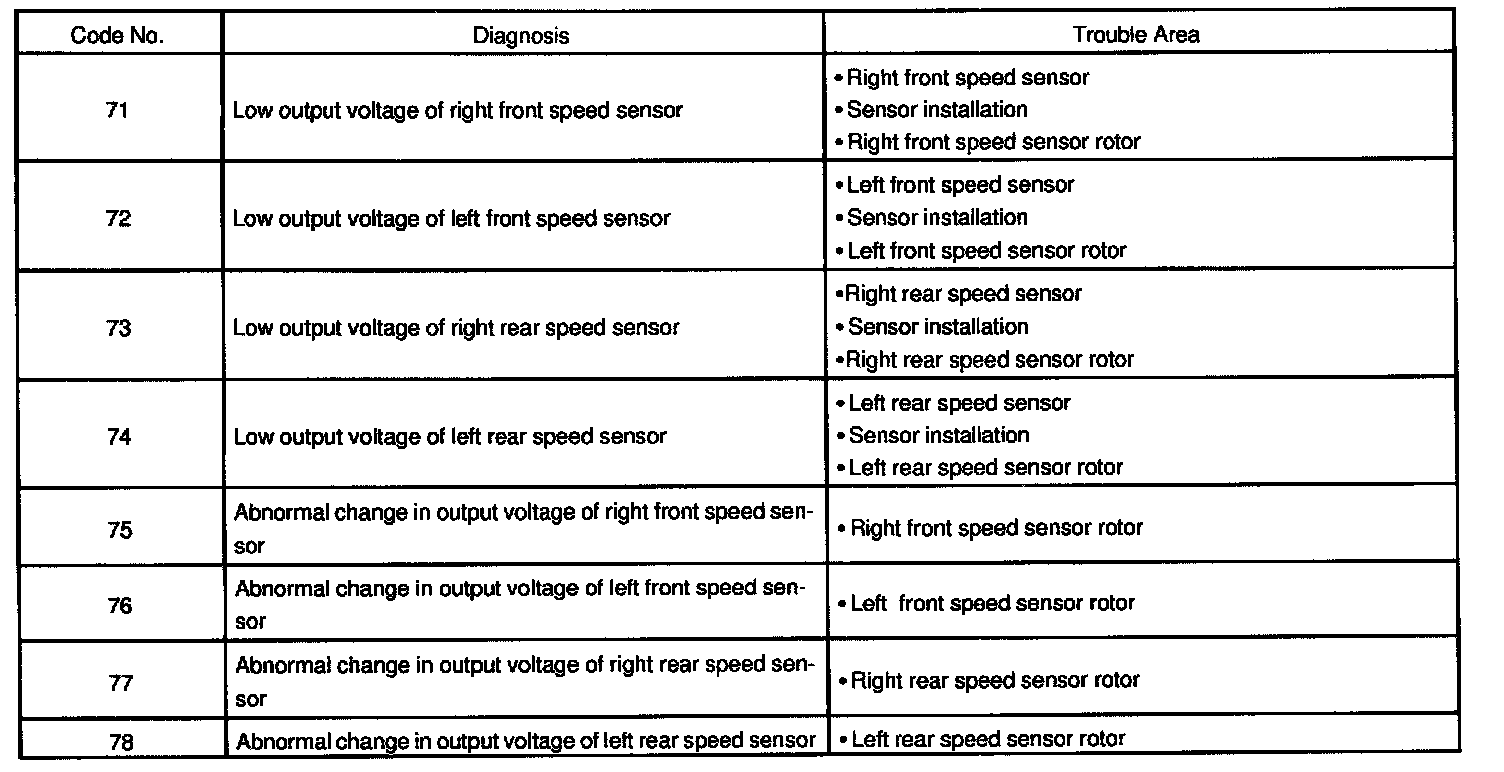

Speed Sensor / 71 - 78:

DTC of speed sensor check function
* Note Toyota doesn't offer diagnostic charts for these codes and only refers to trouble area.
