Power Window Switch: Testing and Inspection

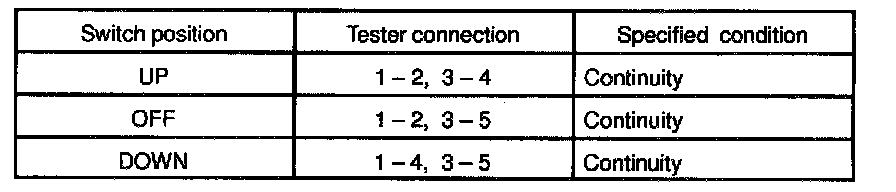

INSPECTIONINSPECT POWER WINDOW MASTER SWITCH CONTINUITY

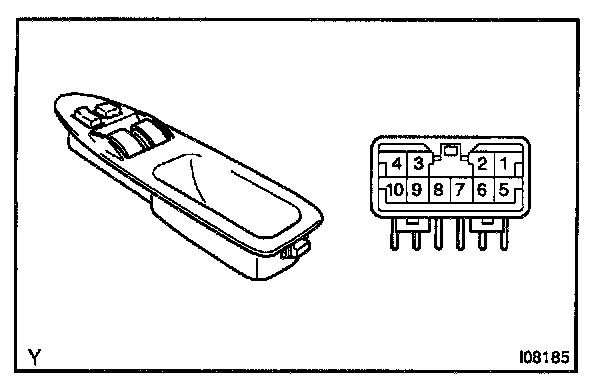

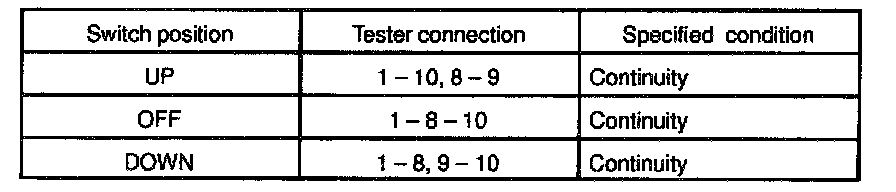

Front driver's switch (Window unlock):
Front driver's switch (Window lock):
Front passenger's switch (Window unlock):
Front passenger's switch (Window lock):
If continuity is not as specified, replace the master switch.

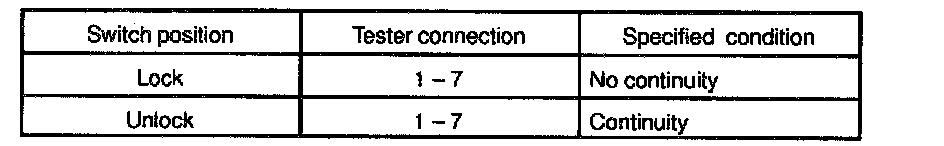

Window lock switch:
If continuity is not as specified, replace the master switch.
INSPECT POWER WINDOW MASTER SWITCH ILLUMINATION

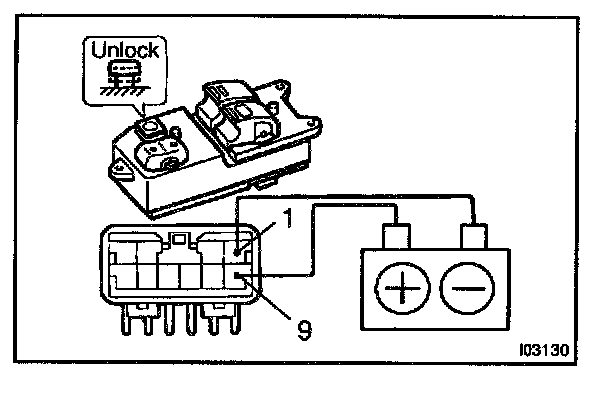

a. Set the window lock switch to the unlock position.
b. Connect the positive (+) lead from the battery to terminal 9 and the negative (-) lead to terminal 1, and check that all the illuminations light up.

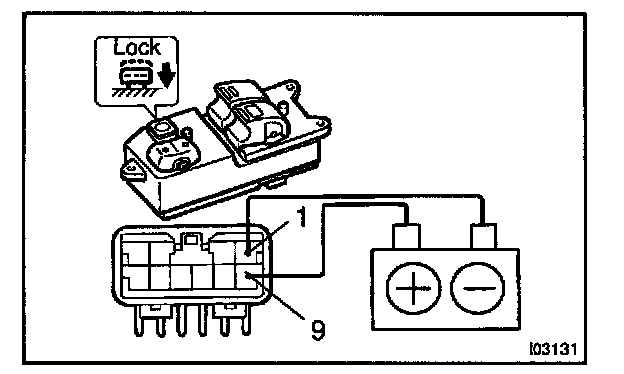

c. Set the window lock switch to the lock position, check that all the passenger's power window switch illuminations go out.
If operation is not as specified, replace the master switch.
INSPECT POWER WINDOW MASTER SWITCH CIRCUIT

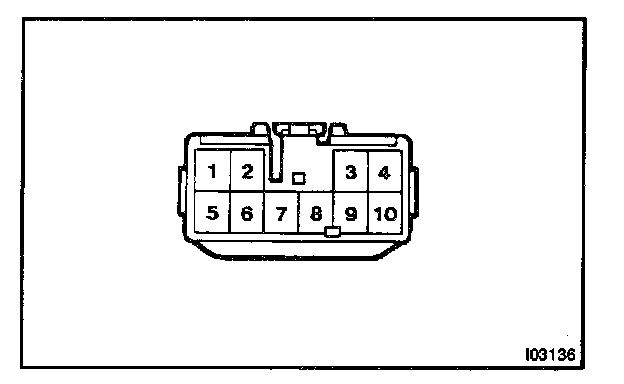

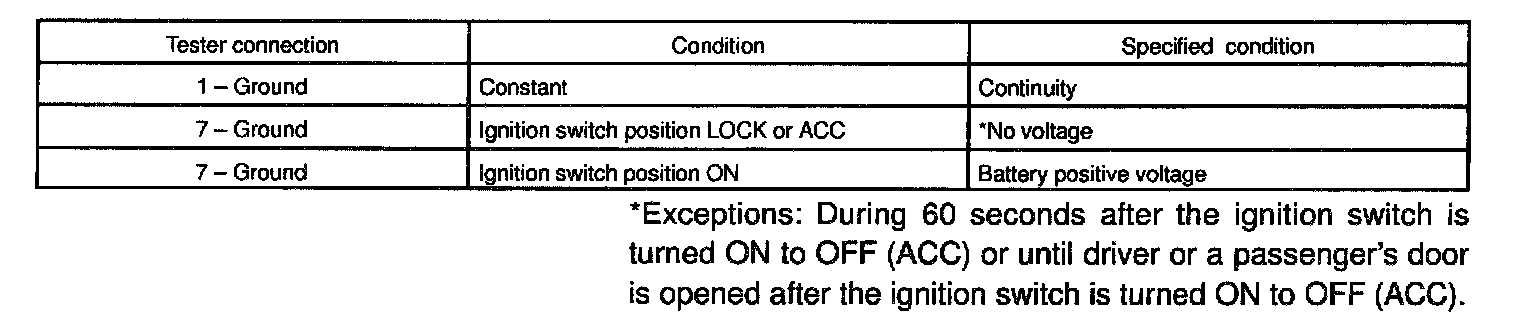

Disconnect the connector from the master switch and inspect the connector on the wire harness side.
If the circuit is not specified,inspect the circuits connected to other parts.

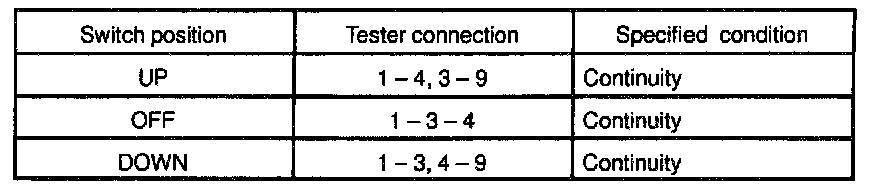

INSPECT POWER WINDOW MASTER SWITCH CONTINUITY
Front driver's switch (Window unlock):
Front driver's switch (Window lock):
Front passenger's switch (Window unlock):
Front passenger's switch (Window lock):
If continuity is not as specified, replace the master switch.
Window lock switch:
If continuity is not as specified, replace the master switch.
INSPECT POWER WINDOW MASTER SWITCH ILLUMINATION
a. Set the window lock switch to the unlock position.
b. Connect the positive (+) lead from the battery to terminal 9 and the negative (-) lead to terminal 1, and check that all the illuminations light up.
c. Set the window lock switch to the lock position, check that all the passenger's power window switch illuminations go out.
If operation is not as specified, replace the master switch.
INSPECT POWER WINDOW MASTER SWITCH CIRCUIT
Disconnect the connector from the master switch and inspect the connector on the wire harness side.
If the circuit is not as specified, inspect the circuits connected to other parts.
INSPECT FRONT PASSENGER POWER WINDOW SWITCH CONTINUITY
If continuity is not as specified, replace the switch.
Convertible:

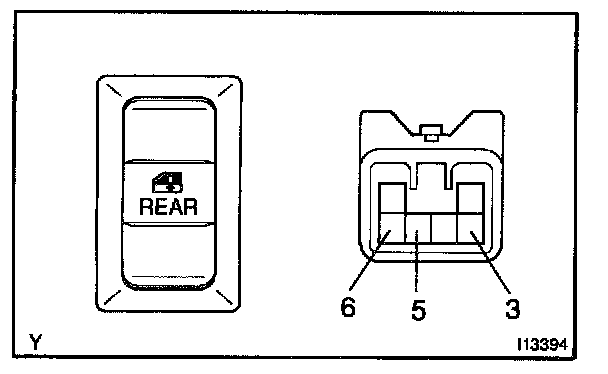

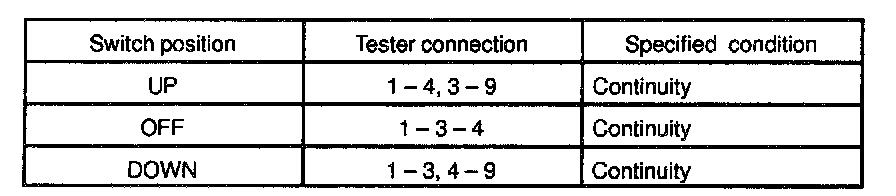

INSPECT QUARTER POWER WINDOW SWITCH CONTINUITY
If continuity is not as specified, replace the switch.
Driver's door:
INSPECT MOTOR OPERATION

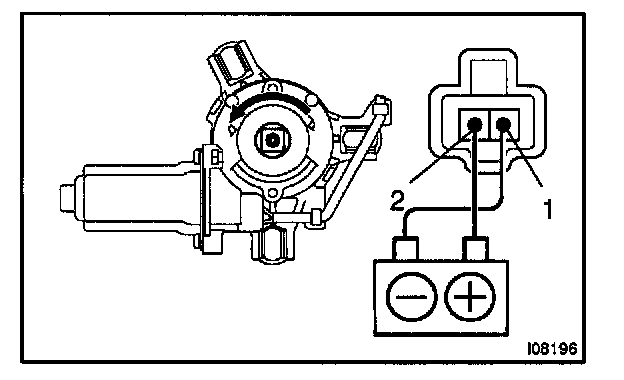

a. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the motor turns clockwise.
b. Reverse the polarity, and check that the motor turns counterclockwise.
If operation is not as specified, replace the motor.
