Ignition Control Module: Testing and Inspection

INSPECT IGNITION COILS WITH IGNITERS
a. Disconnect the high-tension cords from the ignition coils.

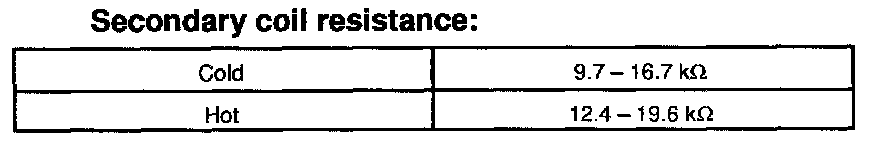

b. Inspect the secondary coil resistance.

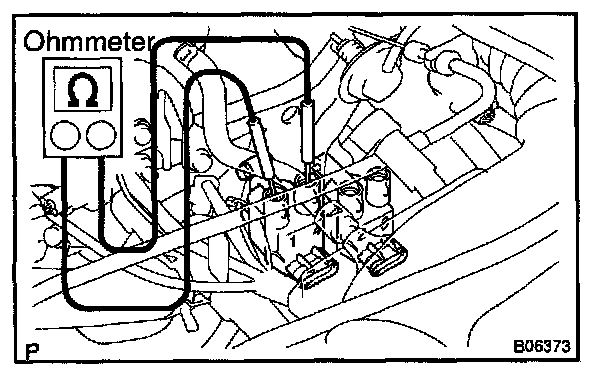

Using an ohmmeter, measure the resistance between the high-tension terminals.
If the resistance is not as specified, replace the ignition coil.
c. Reconnect the high-tension cords to the ignition coils.
d. Inspect the igniters. (See procedure spark test)
