Crankshaft Position Sensor: Testing and Inspection

INSPECT CRANKSHAFT POSITION SENSOR
a. Disconnect the crankshaft position sensor connector.

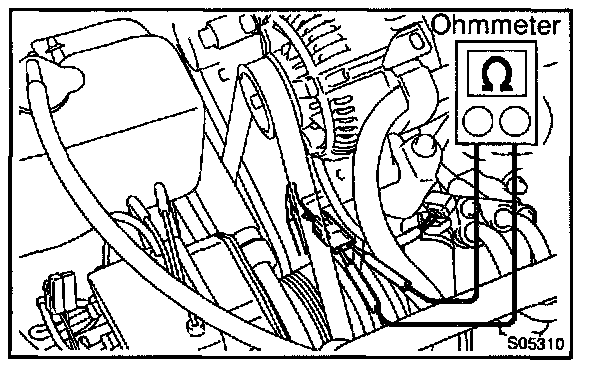

b. Using an ohmmeter, measure the resistance between terminals.
c. Reconnect the crankshaft position sensor connector.
If the resistance is not as specified, replace the sensor.
