A/C Evaporator Temperature Sensor Circuit
A/C Evaporator Temperature Sensor CircuitCIRCUIT DESCRIPTION
This sensor detects the temperature inside the cooling unit and sends appropriate signals to the ECM.

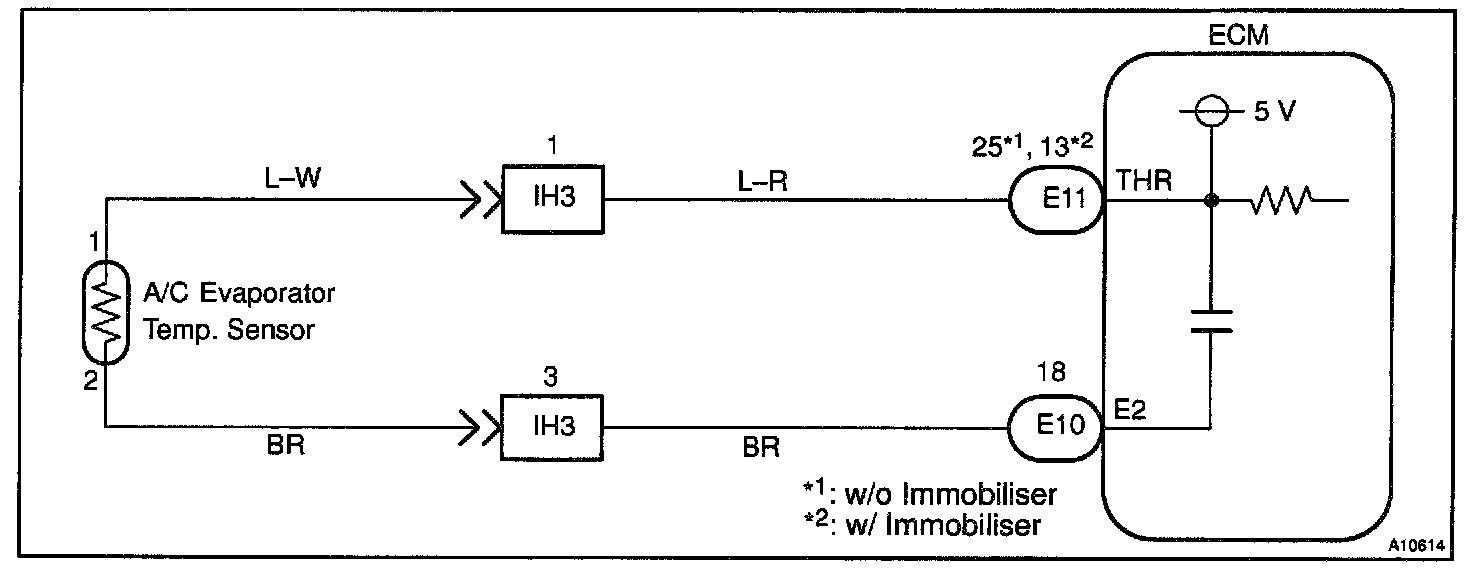

Wiring Diagram:

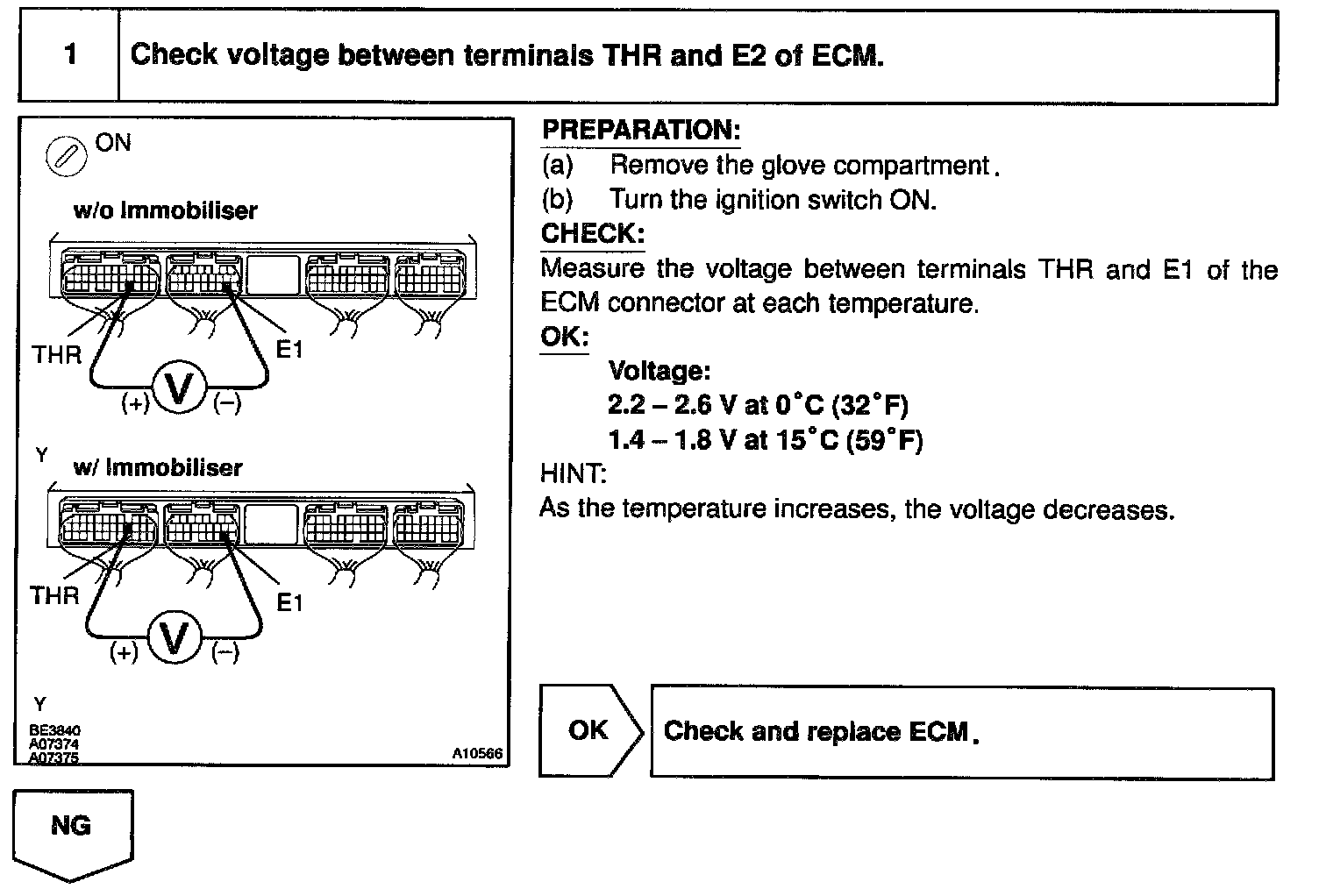

Step 1:
Steps 2 - 3:
INSPECTION PROCEDURE
