A/C Compressor Lock Sensor Circuit
A/C Compressor Lock Sensor CircuitCIRCUIT DESCRIPTION
This sensor sends 1 pulse per engine revolution to the ECM. If the number ratio of the compressor speed divided by the engine speed is smaller than a predetermined value, the ECM turns the compressor off. And the indicator flashes at about 1 second interval.

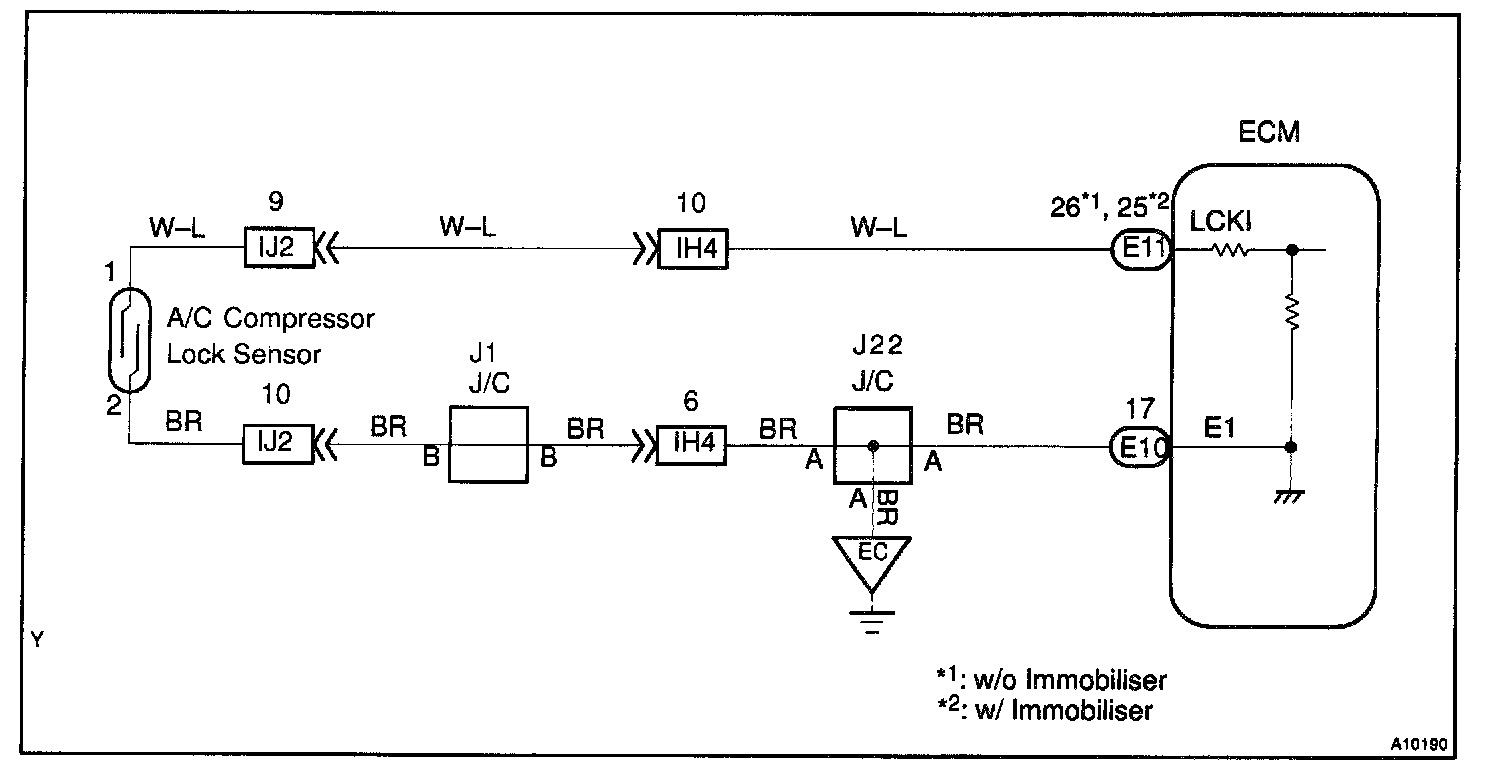

Wiring Diagram:
Step 1:

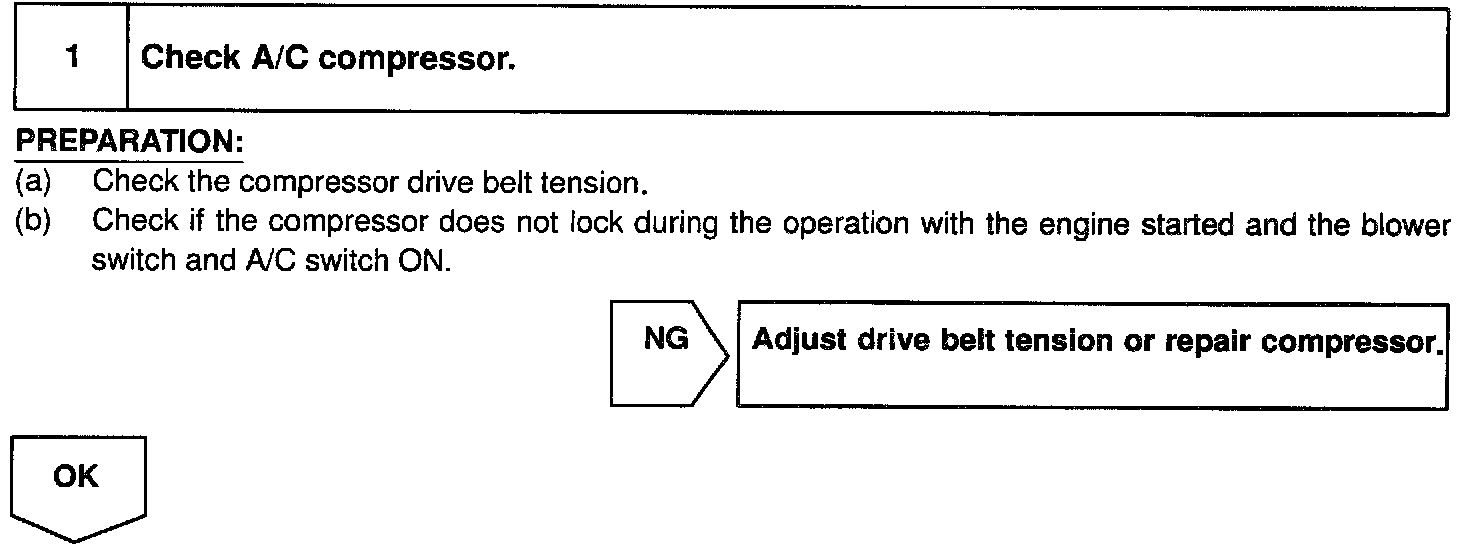

Steps 2 - 3:

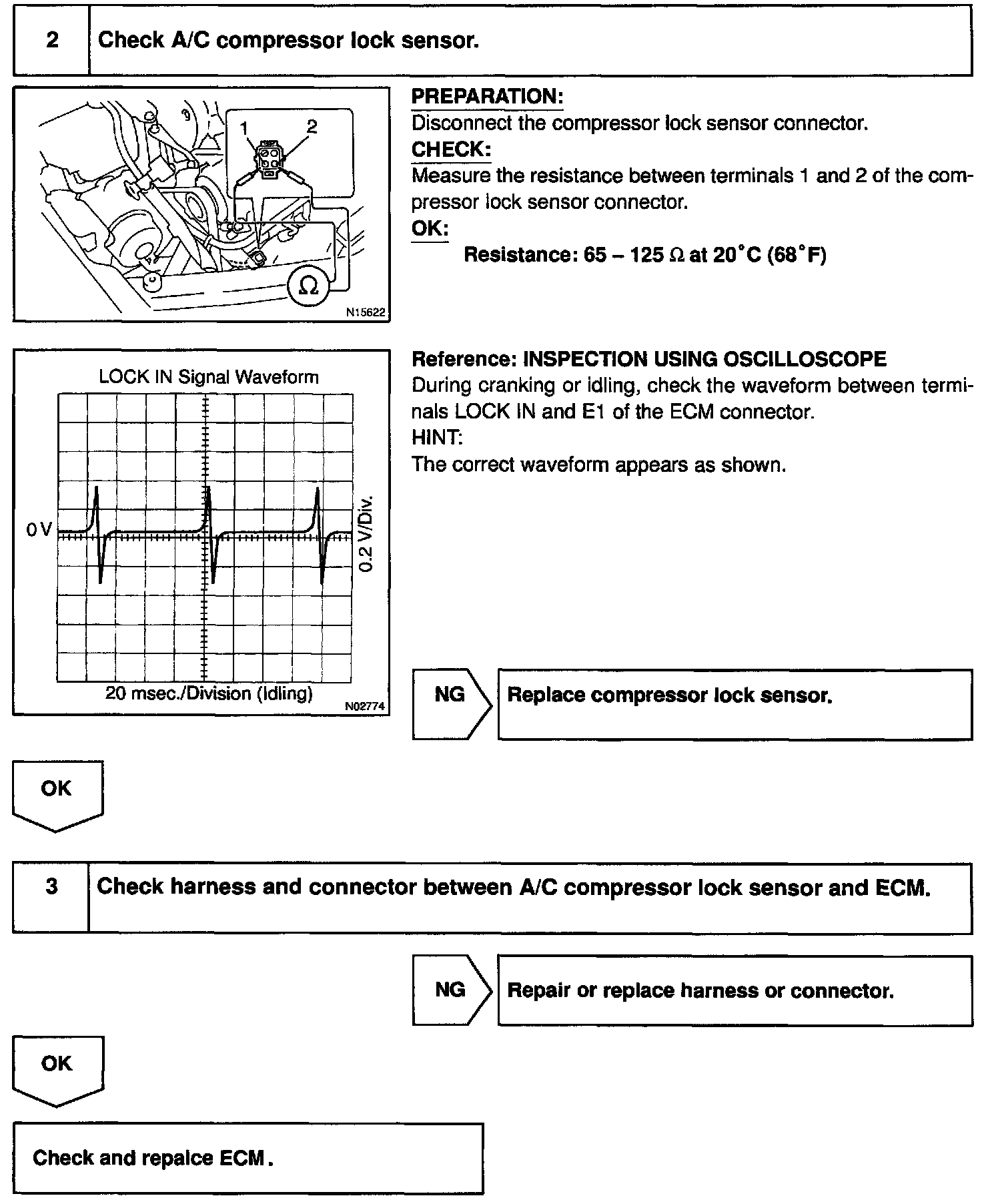

INSPECTION PROCEDURE
