Knock Sensor: Service and Repair

Removal
REMOVE KNOCK SENSOR 1
A. Disconnect the knock sensor connector.

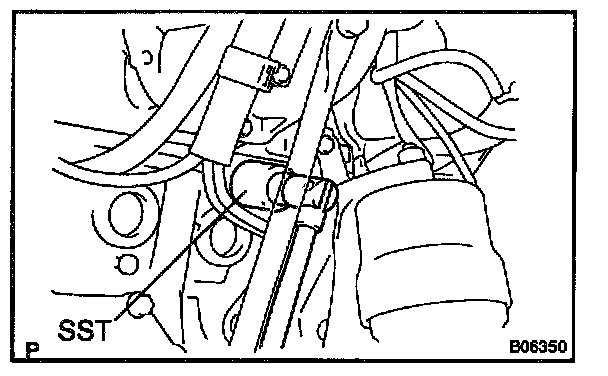

B. Using SST, remove the knock sensor.
SST 09816-30010


Installation
REINSTALL KNOCK SENSOR 1
A. Using SST, install the knock sensor.
SST 09816-30010

Torque: 44 N.m (450 kgf.cm, 32 ft.lbf)

B. Connect the knock sensor connector.
