Windshield Washer Spray Nozzle: Adjustments

ADJUSTMENT

1. INSPECT WASHER NOZZLE

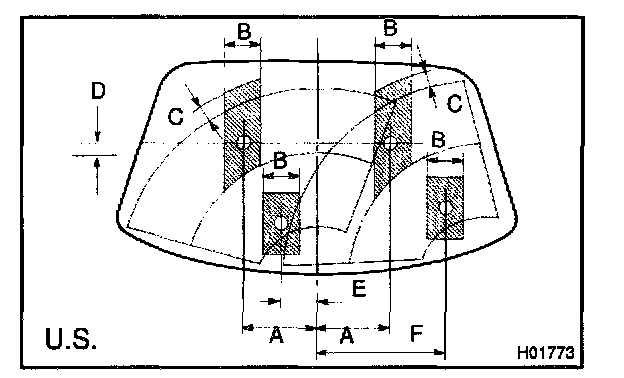

a. While operating the washer, check that the washer fluid hits the windshield and the upsurge area within the shaded areas.

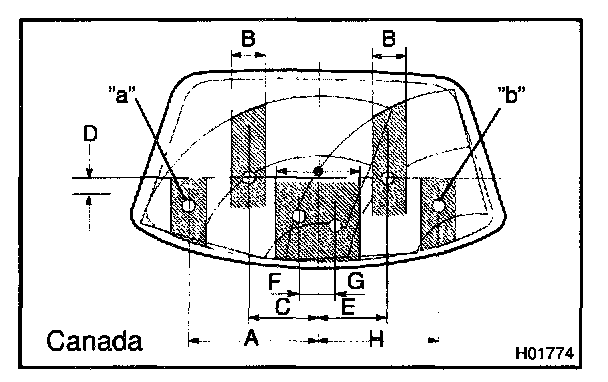

b. Canadian models:
Adjust the nozzle so the outboard points "a" and "b" are within the wipe pattern.

c. Check if the lower point where the washer fluid hits the windshield is within the range of the wiping pattern (the area of the glass the wiper blades wipe).

2. ADJUST WASHER NOZZLE

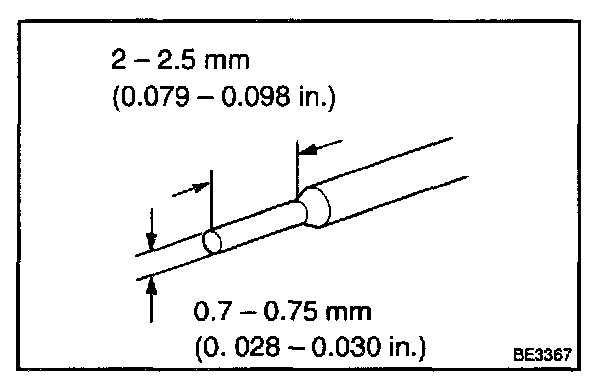

Using a tool like that shown in the illustration, rotate the nozzle to adjust the fluid direction against the windshield.
