Camshaft Bearing Torque and Sequence


Bearing Cap Bolt Torque 16 Nm (160 kgf-cm, 12 ft. lbs.)

Tightening Sequence:

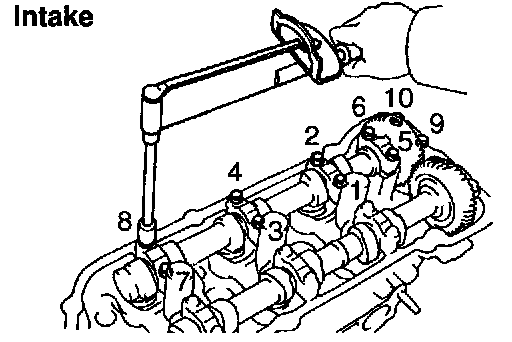

RH Intake Camshaft

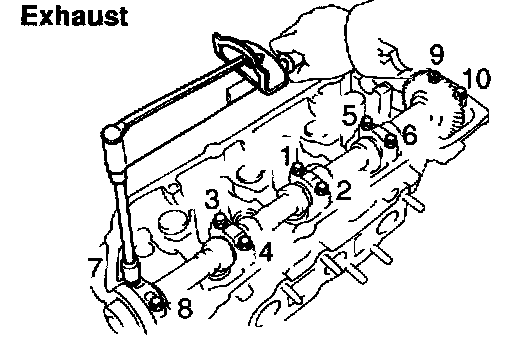

RH Exhaust Camshaft

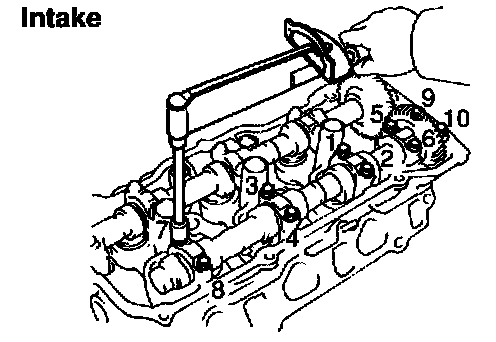

LH Intake Camshaft





LH Exhaust Camshaft
