Sunroof / Moonroof Relay: Testing and Inspection

TMMK made:




TMC made:
INSPECT SLIDING ROOF CONTROL RELAY AND SWITCH CIRCUIT

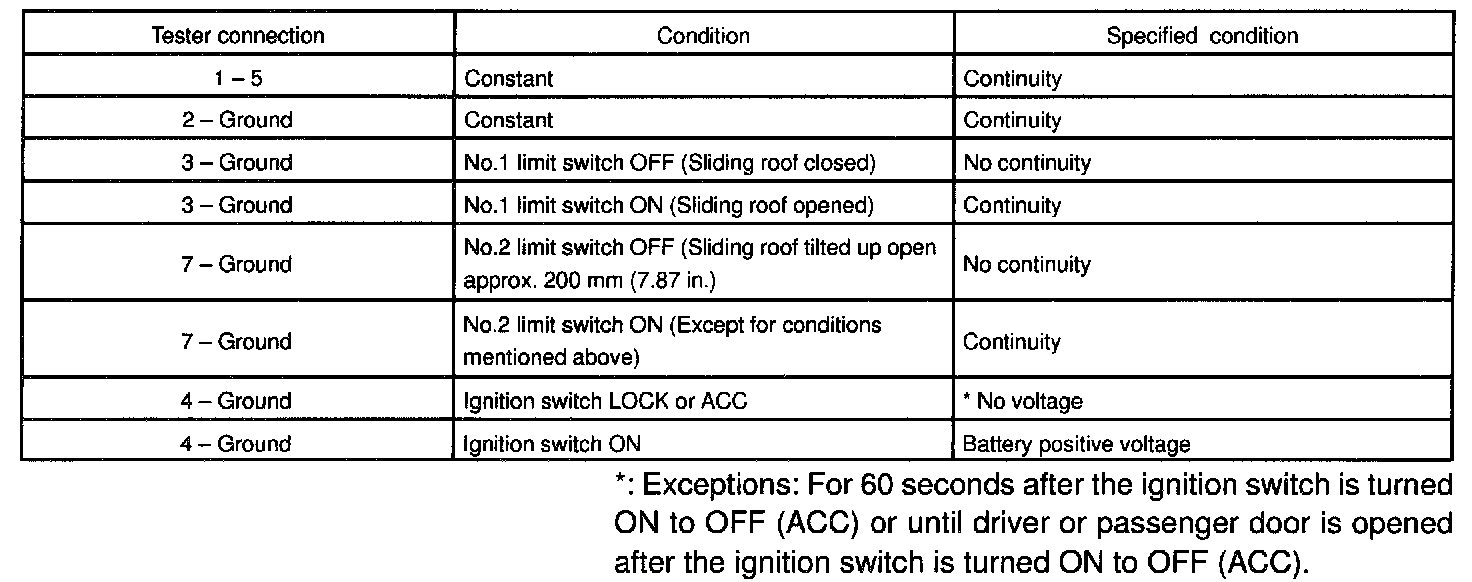

Disconnect the connector from the relay and switch and inspect the connector on the wire harness side, as shown in the table.

If the circuit is not as specified, replace the relay and switch.
