Fuse: Application and ID

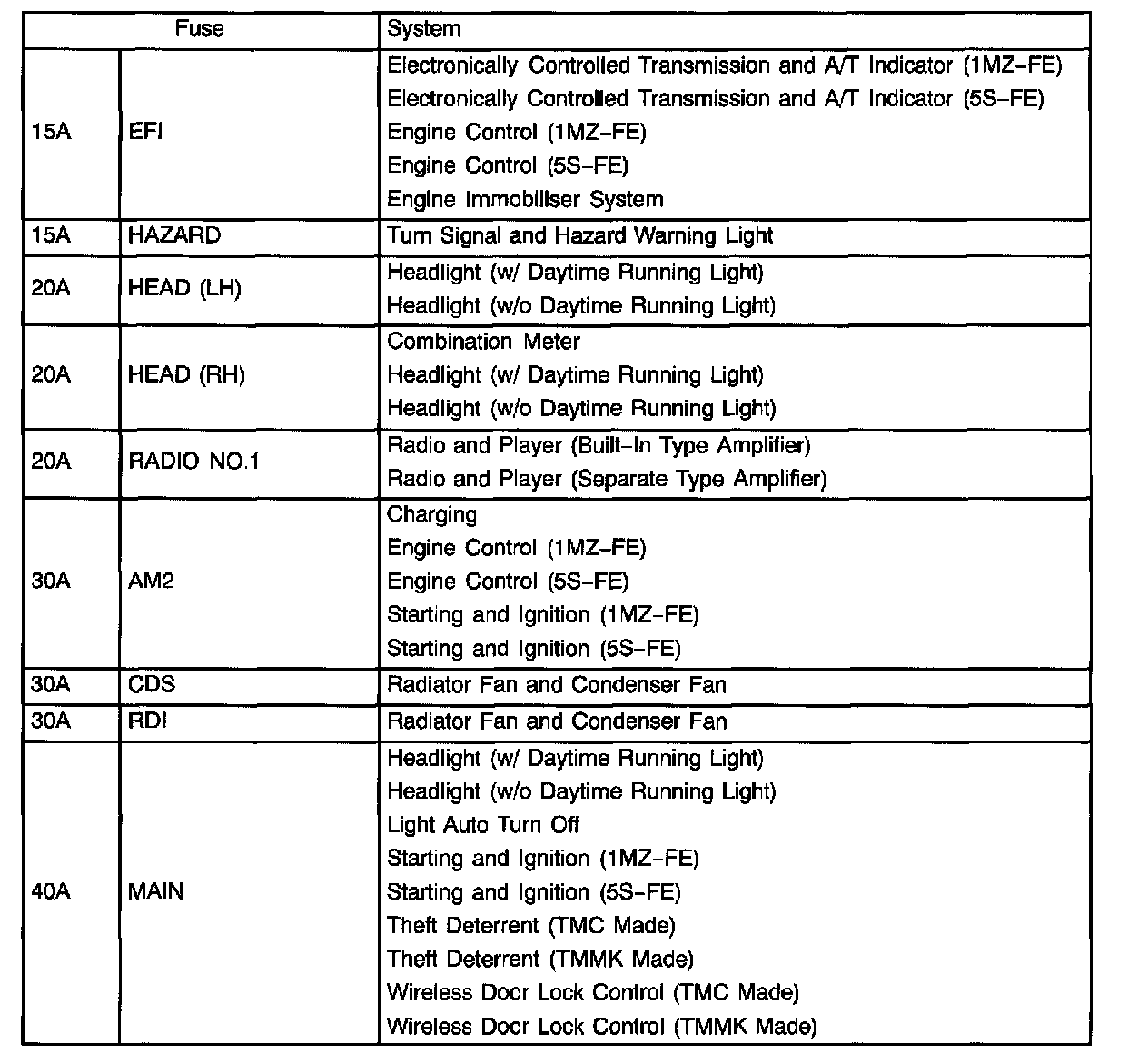

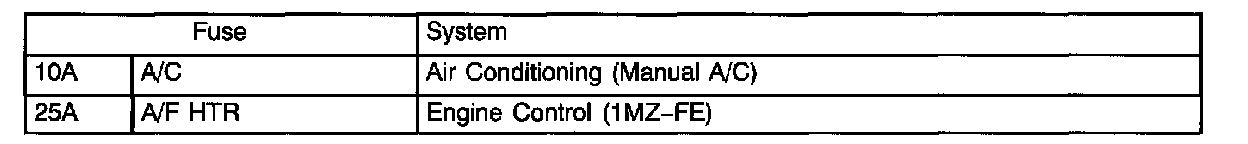

Engine Room J/B No.2 Fuse Applications (Part 1):

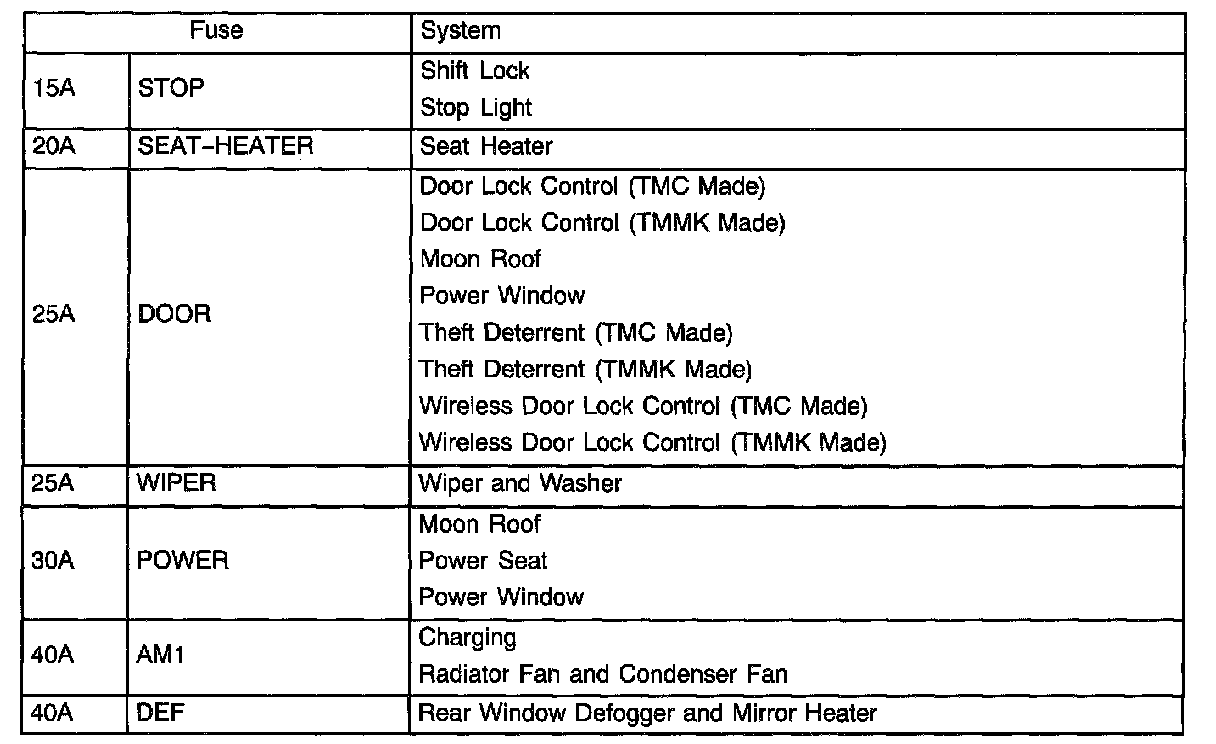

Engine Room J/B No.2 Fuse Applications (Part 2):

Engine Room R/B No.1 Fuse Applications:

Engine Room R/B No.2 Fuse Applications:

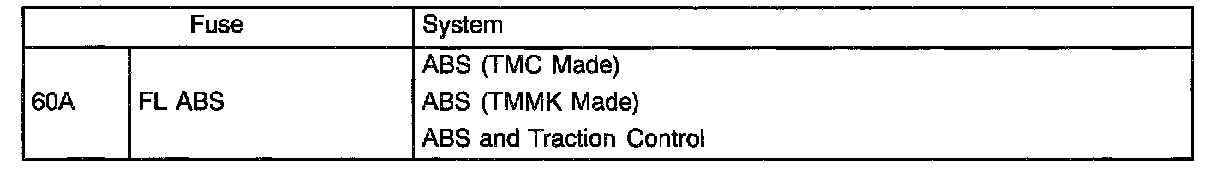

Engine Room R/B No.3 (w/ Traction Control, TMC Made W/ ABS W/O Traction Control) Or Fusible Link Block (TMMK Made W/ ABS W/O Traction Control) Fuse Applications:

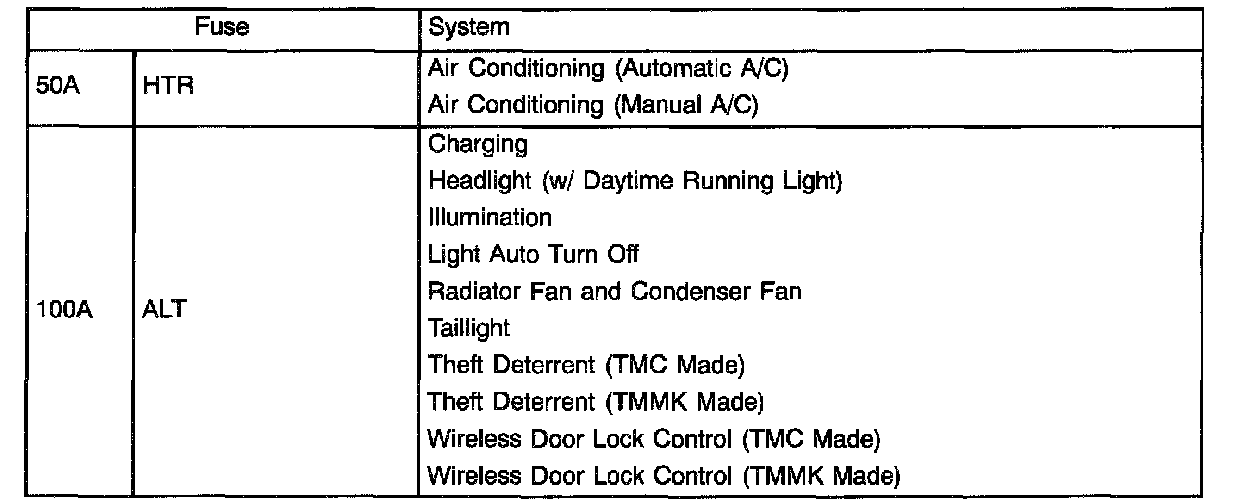

Fusible Link Block Fuse Applications:

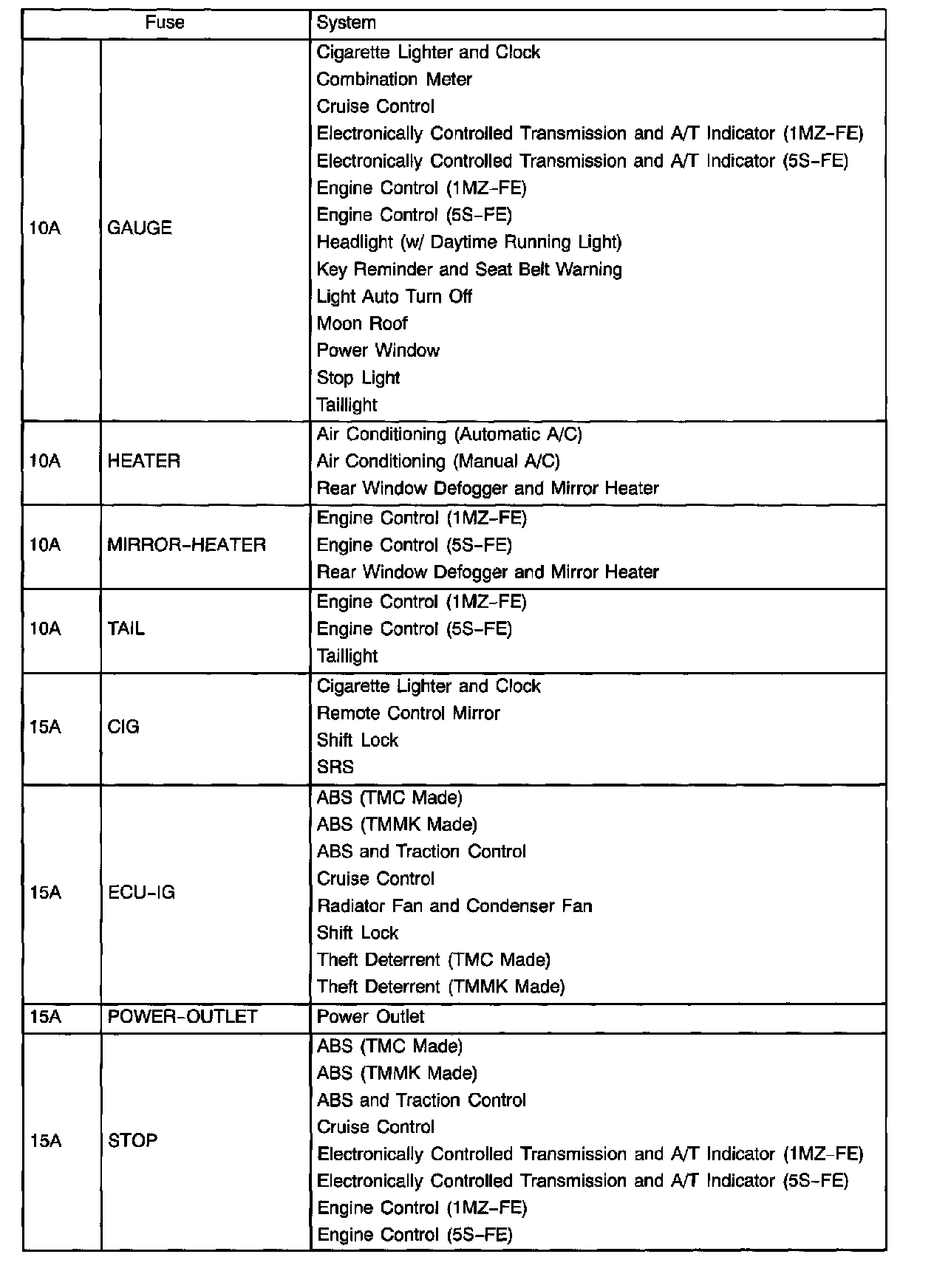

Instrument Panel J/B Fuse Applications (Part 1):

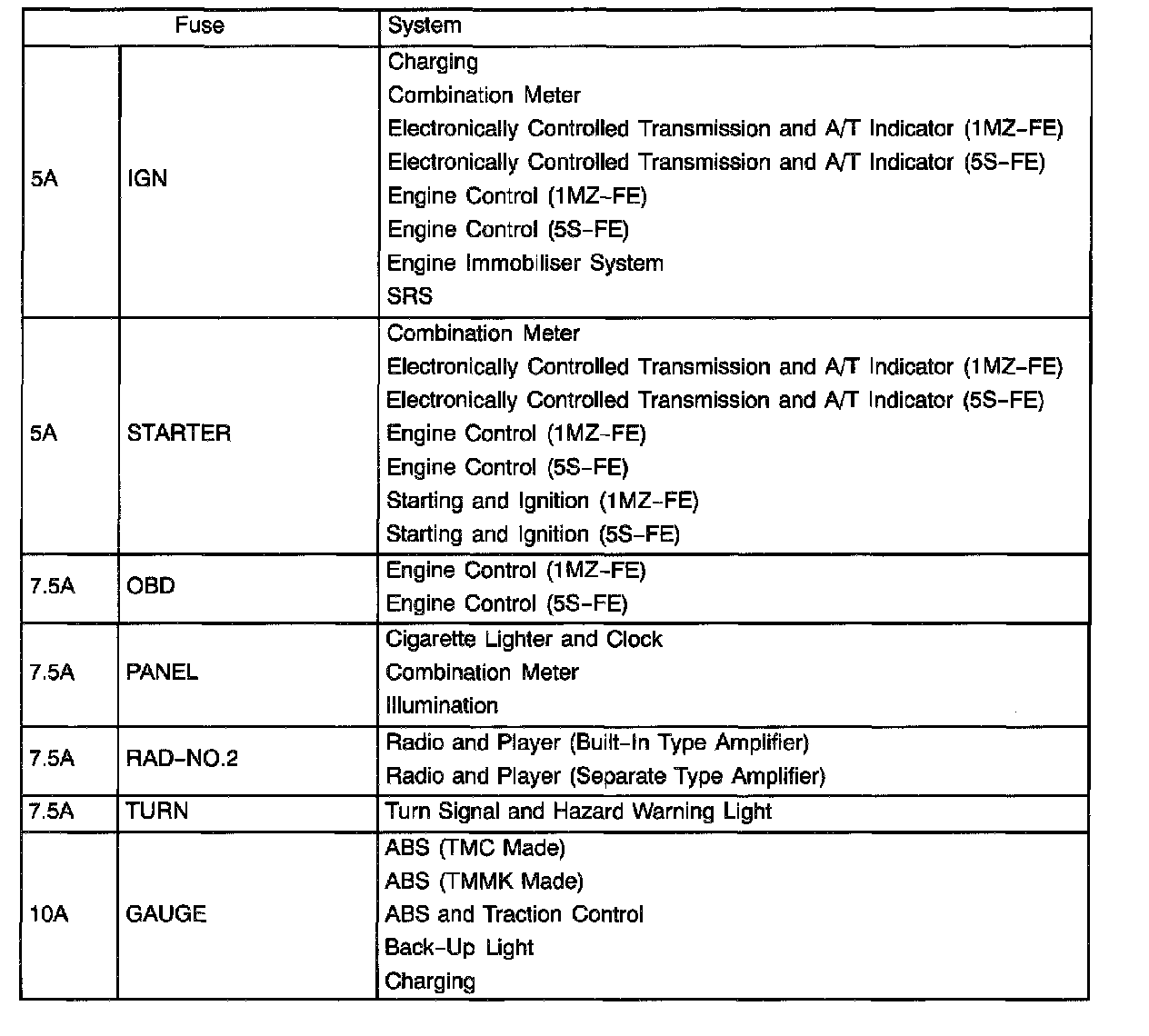

Instrument Panel J/B Fuse Applications (Part 2):

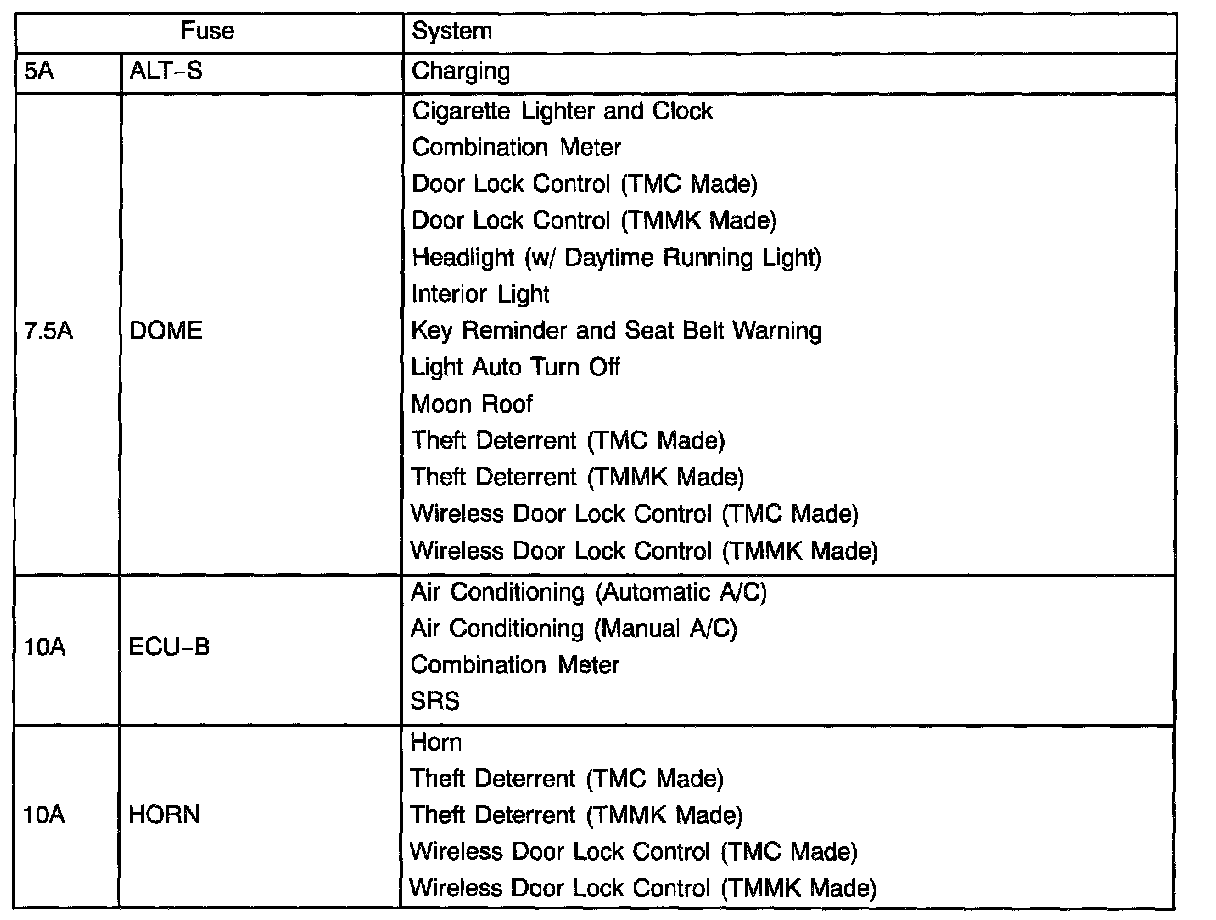

Instrument Panel J/B Fuse Applications (Part 3):
