Differential Fluid - A/T: Testing and Inspection

CHECK DIFFERENTIAL FLUID LEVEL





1. Remove the filler plug.

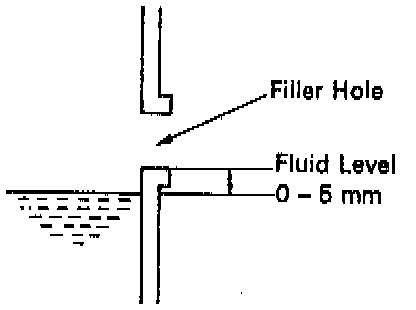

2. Fluid level should be no more than 5mm from the filler hole
2. Add fluid till it begins to run out of the filler hole.
2. Reinstall filler plug and tighten securely.
