Trunk Lamp Switch: Testing and Inspection

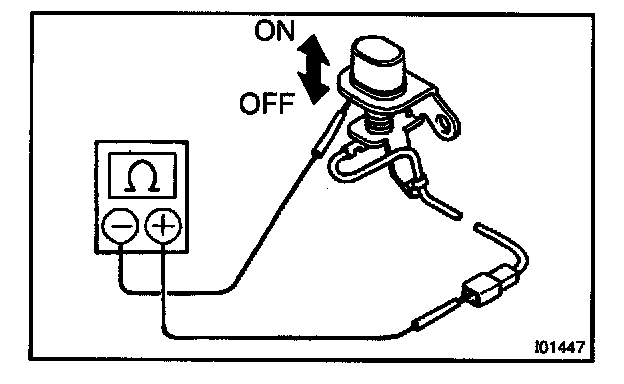

INSPECT LUGGAGE COMPARTMENT DOOR COURTESY SWITCH CONTINUITY

a. Check that continuity exists between terminal and switch body with the switch ON (switch pin released: opened door).
b. Check that no continuity exists between the terminal and switch body with the switch OFF (switch pin pushed in: closed door).
If operation is not as specified, replace the switch.
