Component Tests and General Diagnostics

INSPECTION







w/o Cruise control:

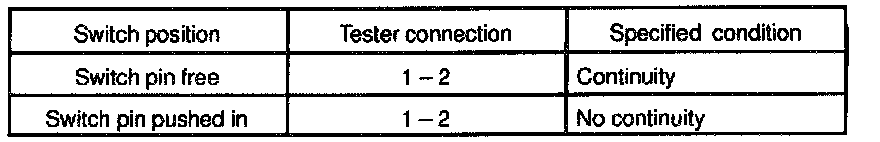

INSPECT STOP LIGHT SWITCH CONTINUITY
If continuity is not as specified, replace the switch.




w/ Cruise control:
INSPECT STOP LIGHT SWITCH CONTINUITY
If continuity is not as specified, replace the switch.
