Symptom Related Diagnostic Procedures

PROBLEM SYMPTOMS TABLE

Part 1:

Part 2:

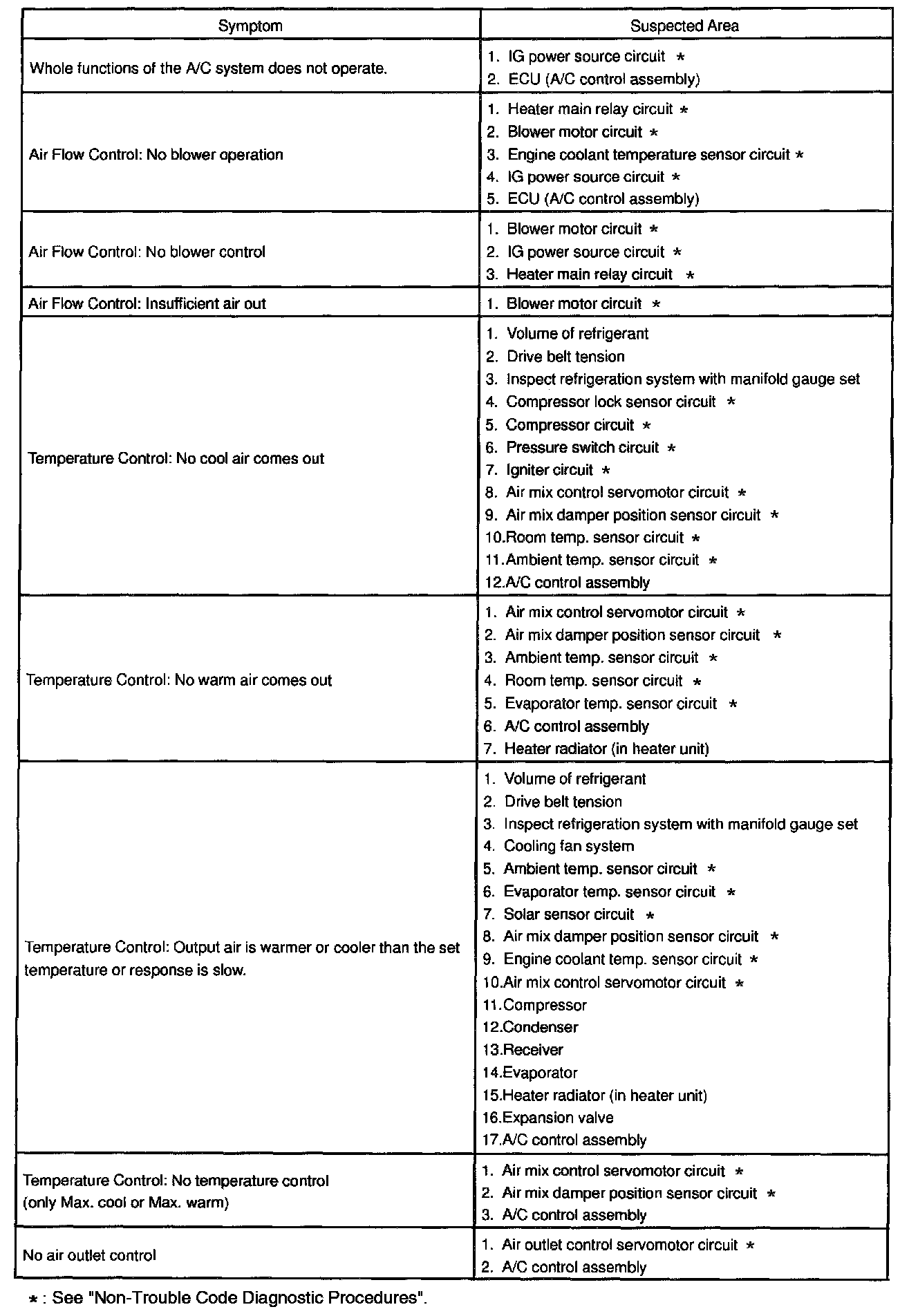

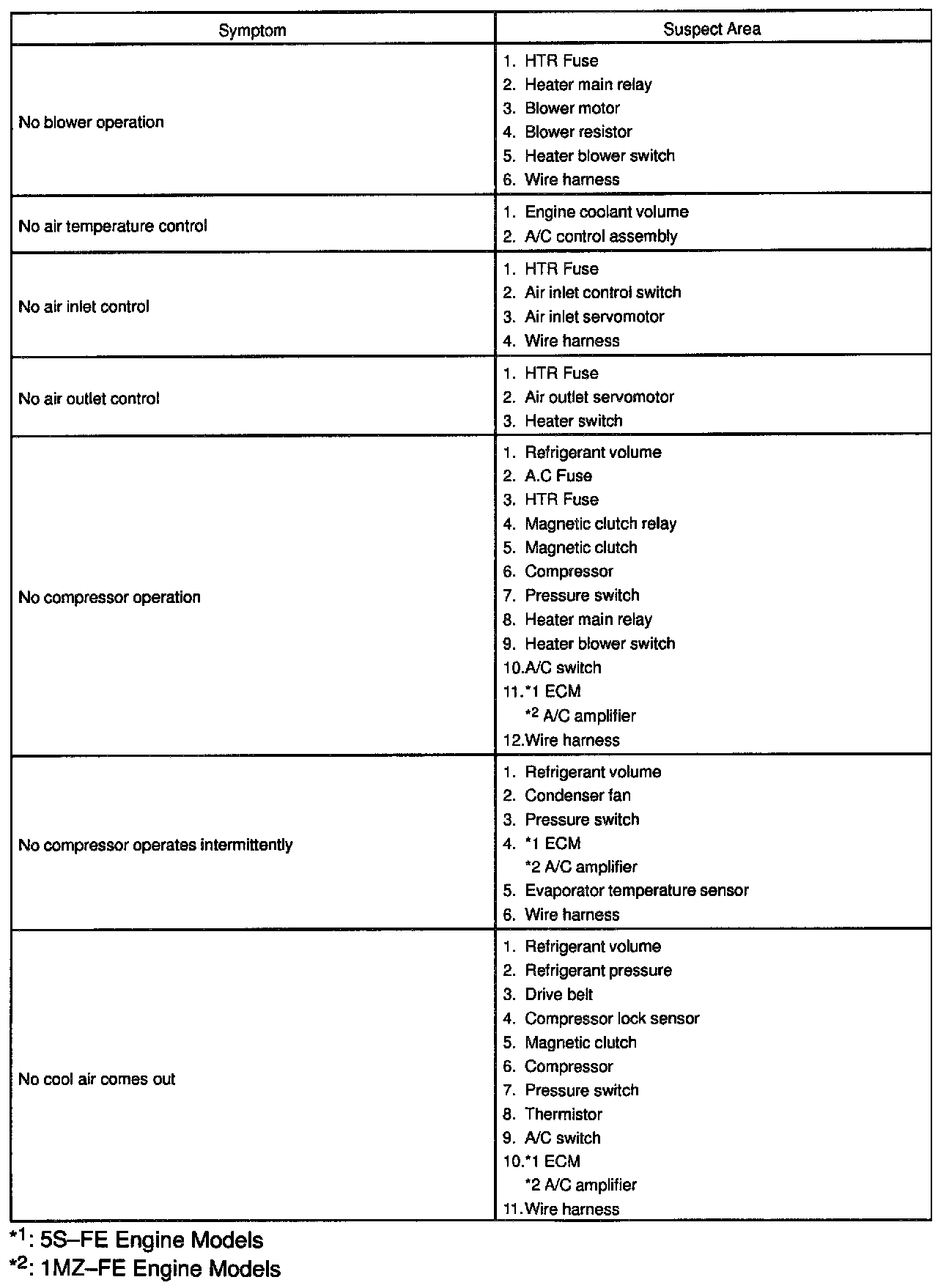

Problem Symptoms Table Part 1:

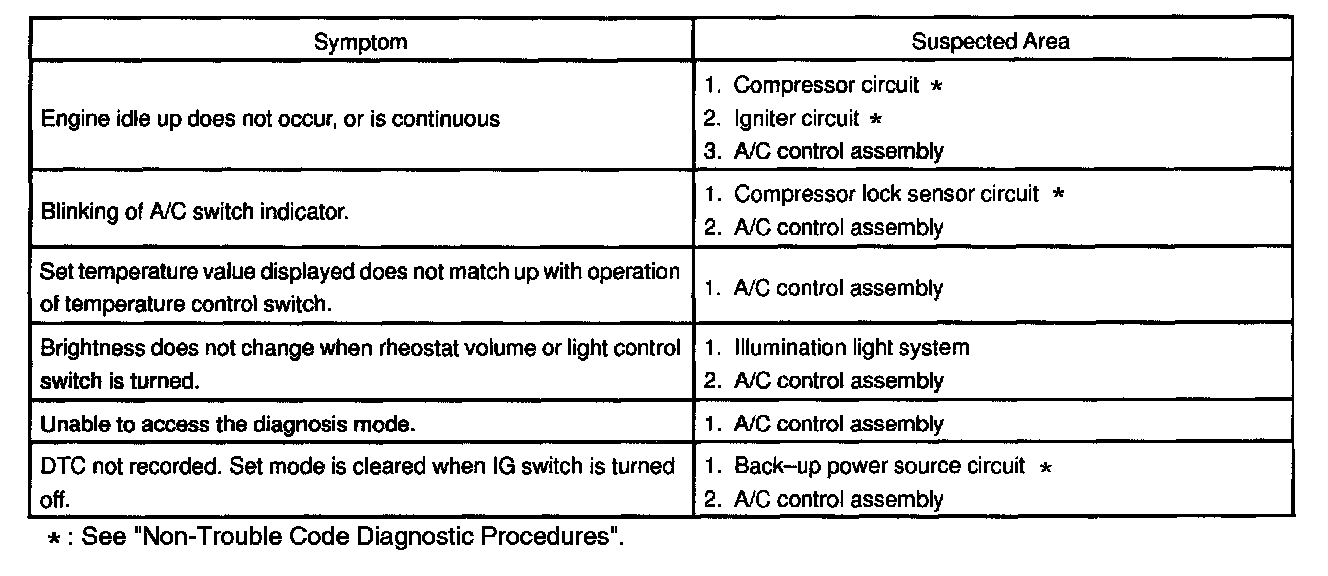

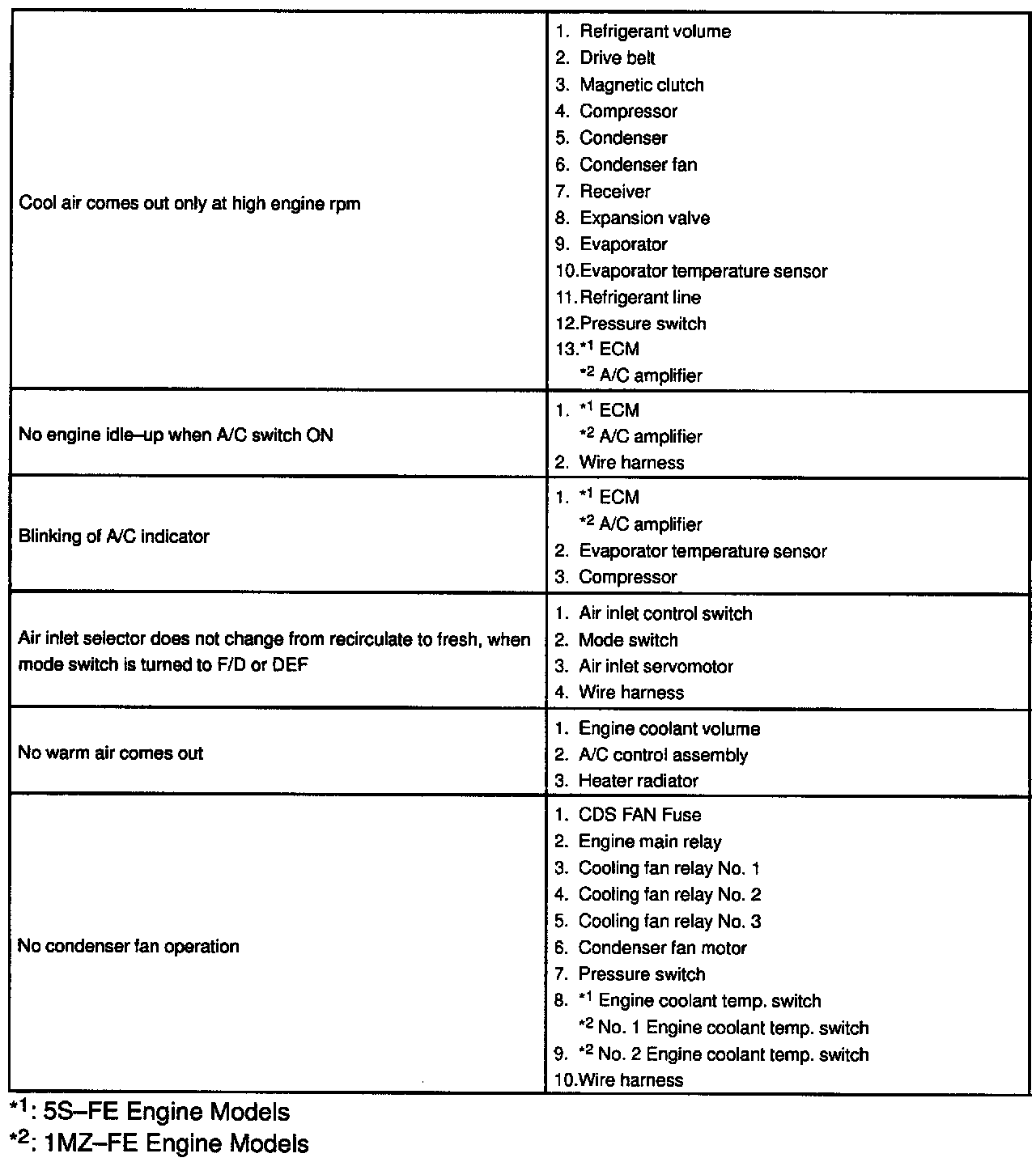

Part 2:

Use the table to help you find the cause of the problem. The numbers indicate the priority of the likely cause of the problem. Check each part in order. If necessary, repair or replace the these parts.
