Heater Core: Service and Repair

HEATER RADIATOR

REMOVAL

1. DRAIN ENGINE COOLANT FROM RADIATOR

HINT: It is not necessary to drain out all the coolant.

2. DISCONNECT WATER HOSES FROM A/C UNIT
3. REMOVE NO.1 LOWER INSTRUMENT PANEL
4. REMOVE LH INSTRUMENT LOWER PANEL

5. REMOVE HEATER RADIATOR

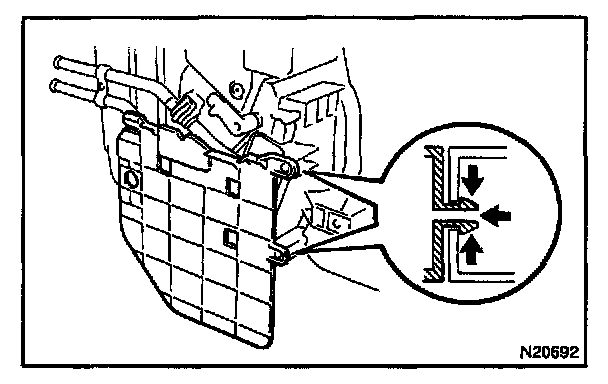

a. Release the 3 claws and pull out the heater protector.




b. Remove the 3 screws 3 plate.

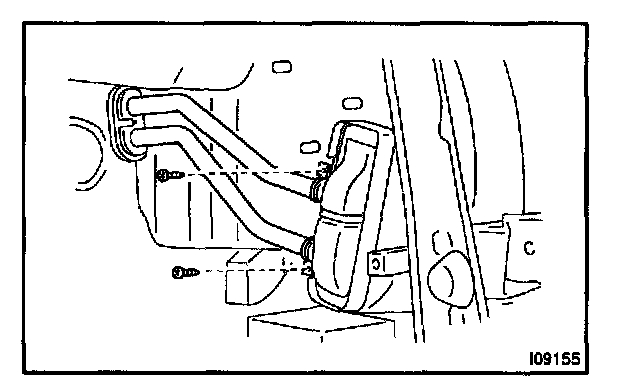

c. Remove the 2 screws and 2 clamps and disconnect the 2 heater radiator pipes.




d. Remove the heater radiator.

INSTALLATION
Installation is in the reverse order of removal.
