ABS W/Traction Control (TRAC)

CIRCUIT DESCRIPTION
If the ECU has detected a trouble, it lights the ABS warning light and prohibits the ABS control at the same time. At this time, the ECU records a DTC in the memory.

Connect terminals Tc and E1 of the DLC1 or DLC2, or terminals Tc and CG of the DLC3 to make the ABS warning light blink and output a DTC.

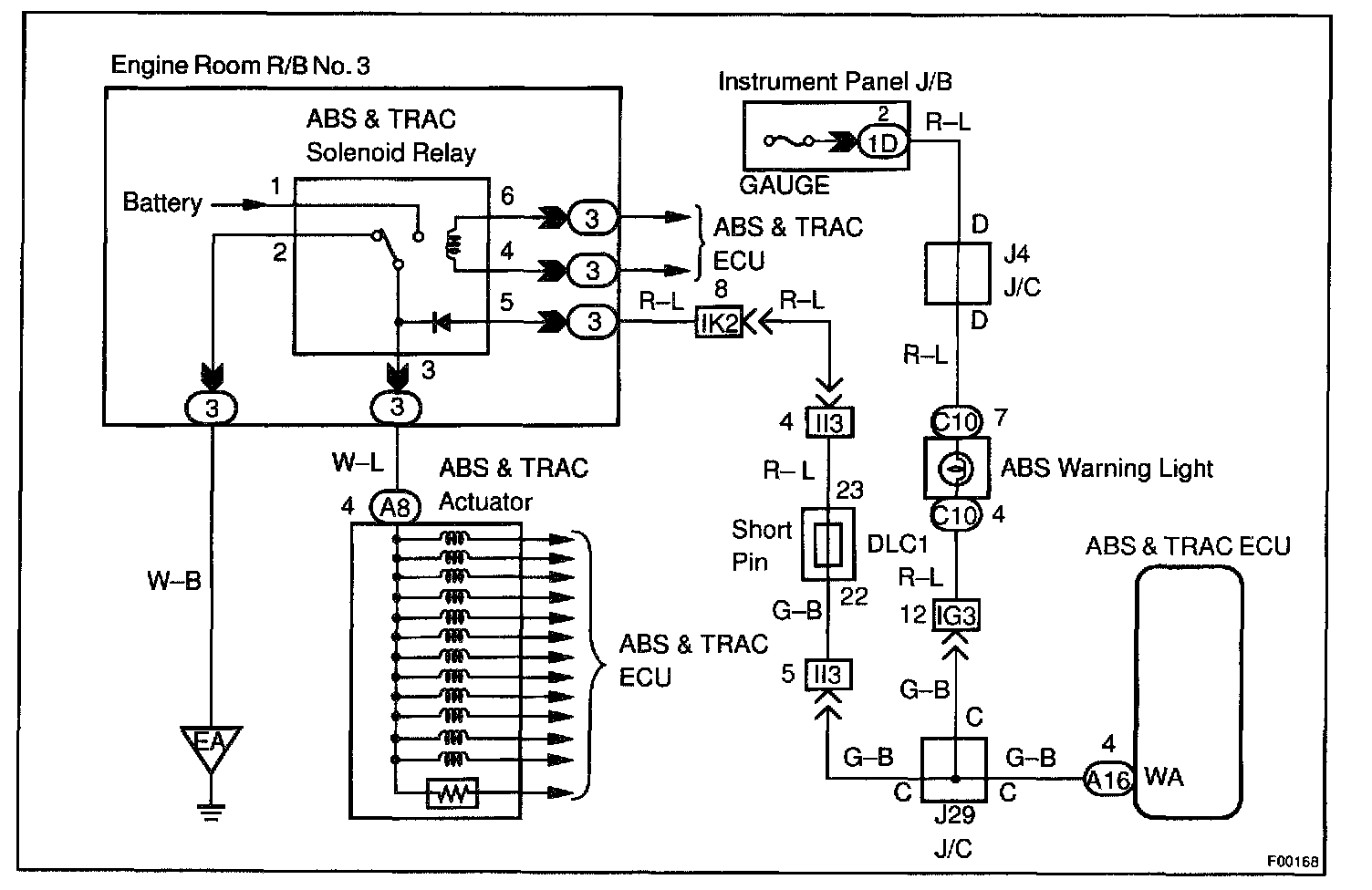

Wiring Diagram:

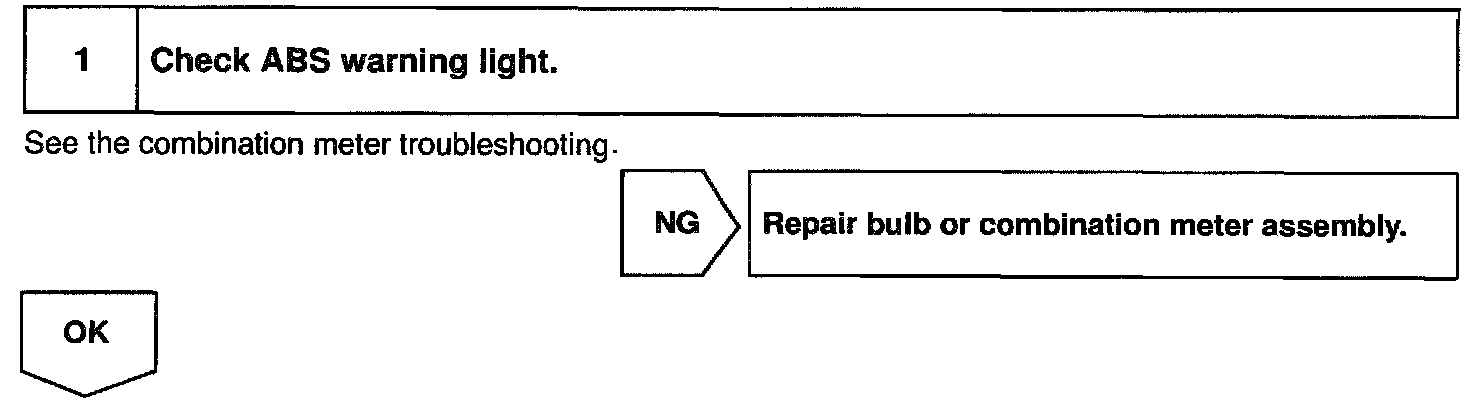

Step 1:

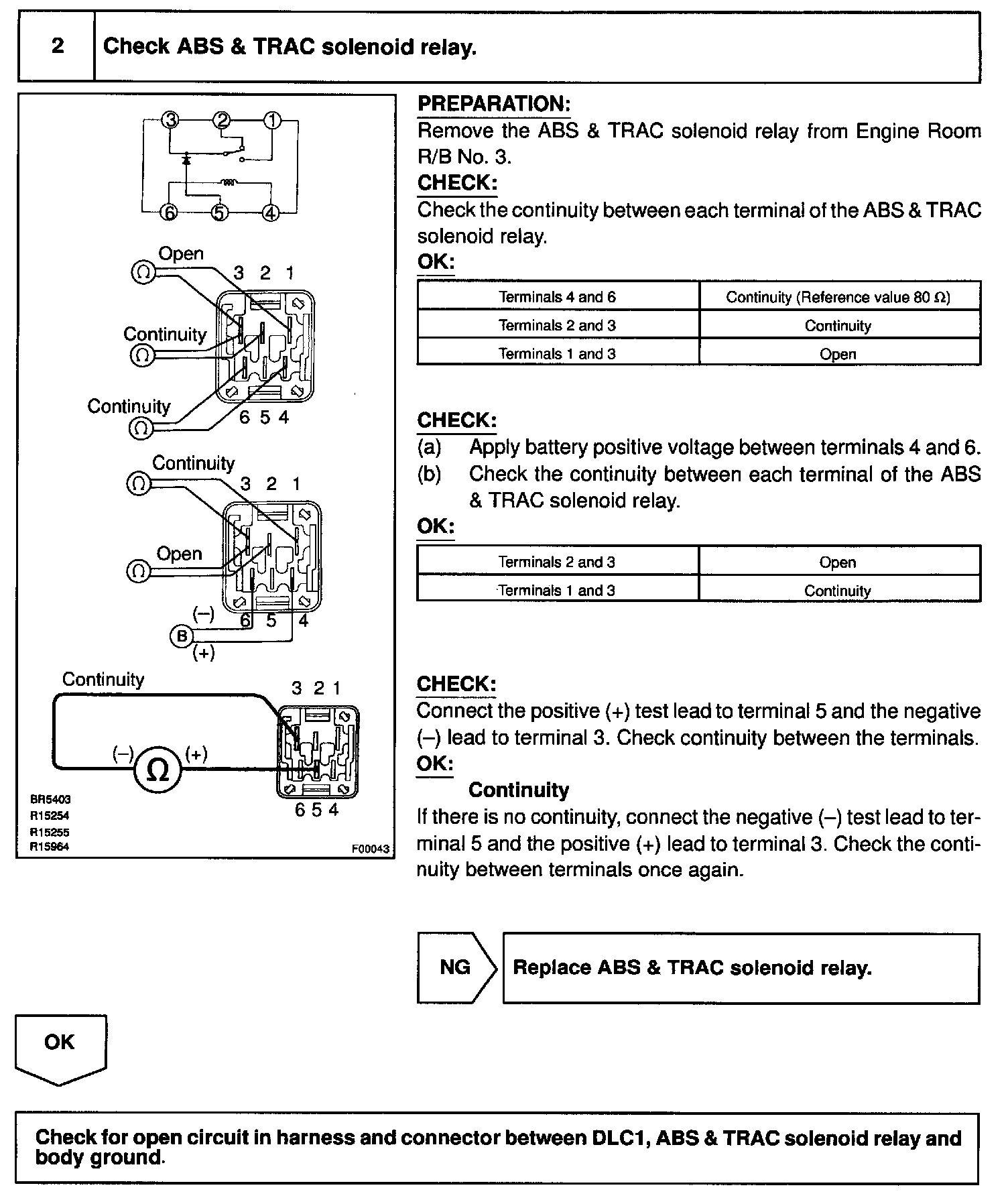

Step 2:

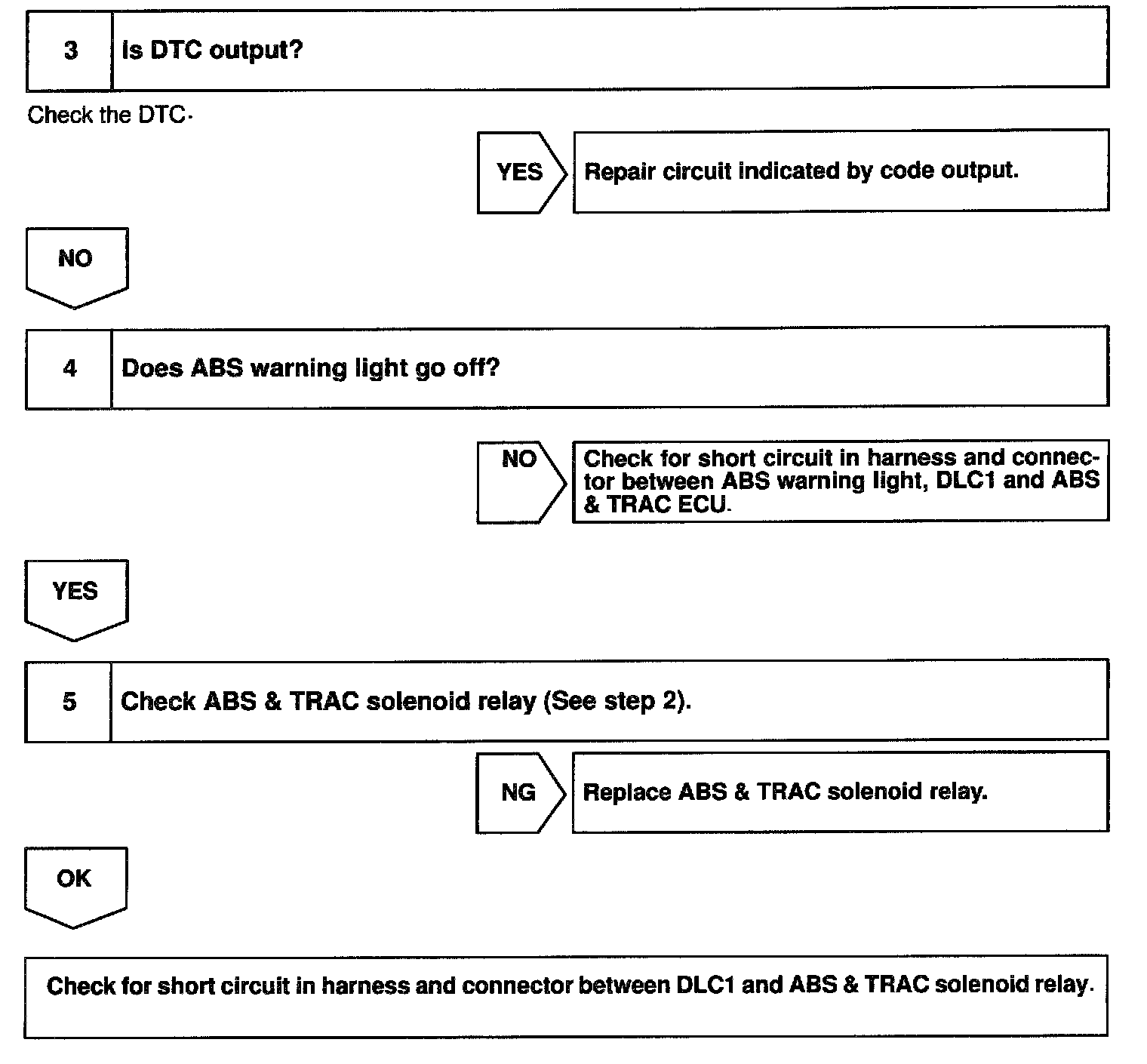

Steps 3 - 5:

INSPECTION PROCEDURE

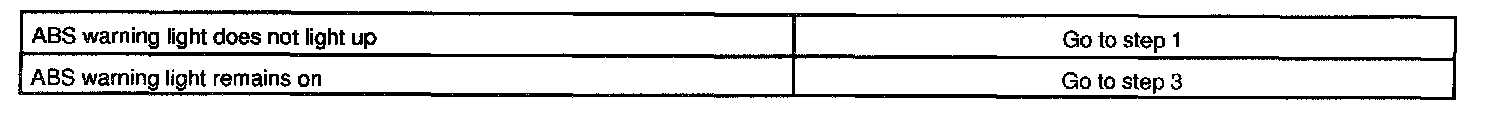

Troubleshooting in accordence with the chart below of each trouble symptom.
