ABS (TMMK/Bosch Made)

CIRCUIT DESCRIPTION
If the ECU has detected a trouble, it lights the ABS warning light, prohibiting the ABS control simultaneously.
At this time, the ECU records a DTC in the memory.
Connect terminals Tc and E1 of the DLC1 or DLC2 to make the ABS warning light blink and output the DTC.

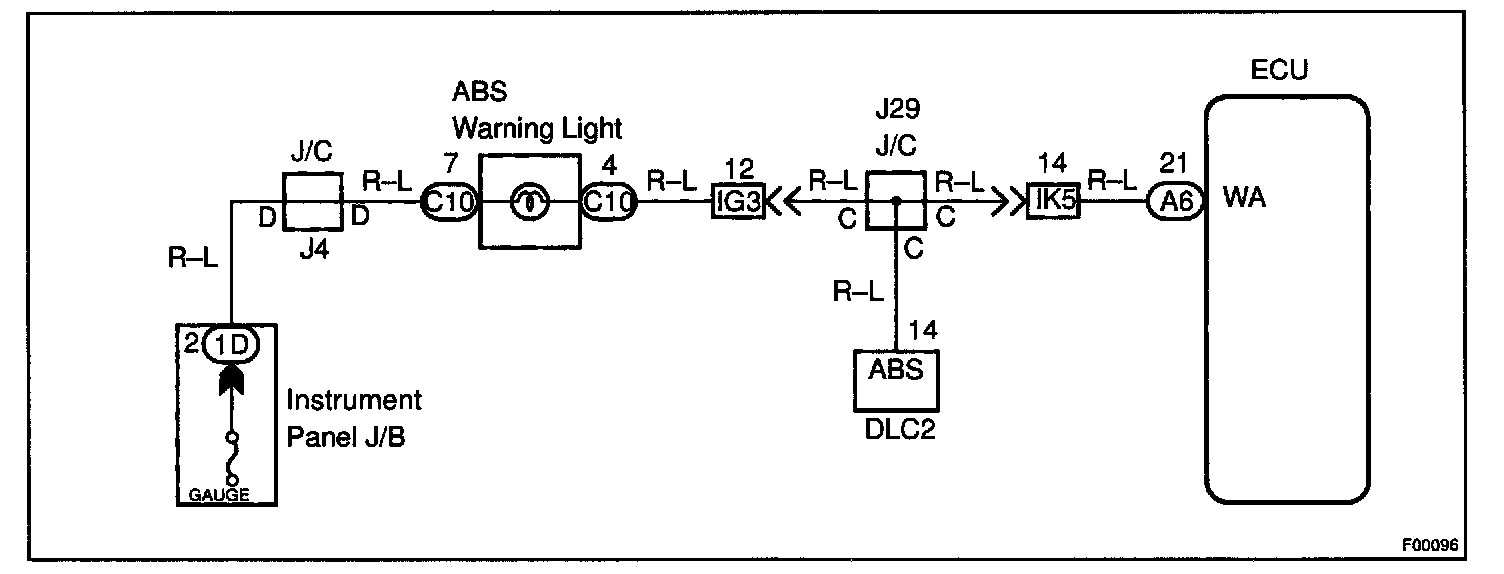

Wiring Diagram:

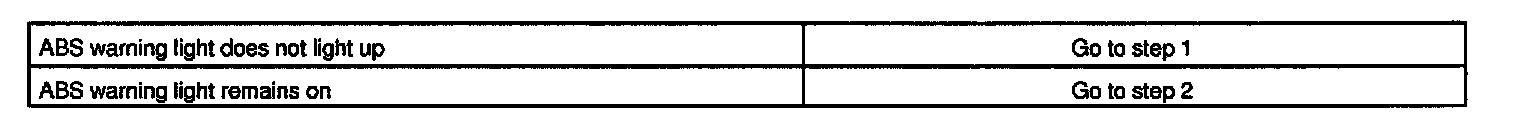

Step 1:

Step 2:

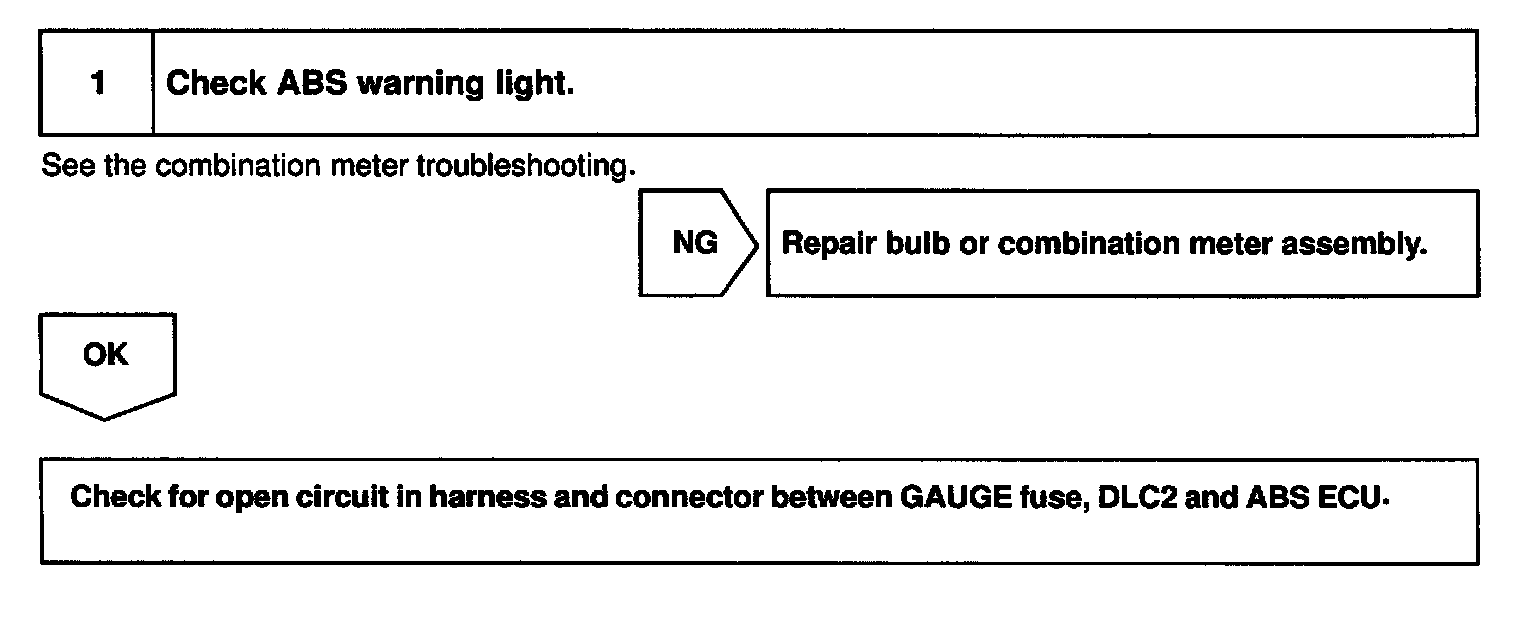

INSPECTION PROCEDURE
