Front Seat (Power Seat For TMMK Made)
DISASSEMBLY1. REMOVE FRONT SEAT
a. Using a screwdriver, remove the seat track covers.
HINT: Tape the screwdriver tip before use.
b. Remove the 4 bolts.
c. w/ Side airbag assembly: Disconnect the connector.
d. Disconnect the front power seat connector.
e. Remove the front seat.
NOTE: Be careful not to damage the body.
2. REMOVE SWITCH KNOB
3. REMOVE FRONT SEAT CUSHION SHIELD
4. REMOVE FRONT POWER SEAT SWITCH
5. REMOVE SEAT CUSHION LOWER SHIELD
6. w/ Lumbar support:
REMOVE LUMBAR SUPPORT LEVER
7. REMOVE HEADREST
8. REMOVE FRONT SEAT INNER BELT
9. REMOVE SEATBACK ASSEMBLY

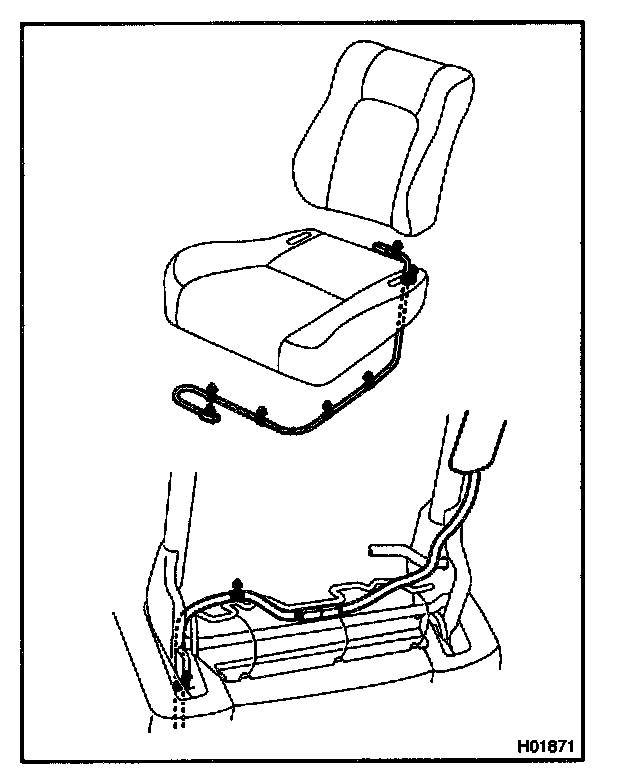

a. w/ Side airbag assembly:
Remove the side airbag wire harness after removing clips.
b. Remove the hog rings.
c. Remove the bolts and front seatback hinge cover.
d. Remove the seatback assembly.
10. REMOVE SEATBACK COVER
a. w/ Side airbag assembly:
Remove the hook from the seatback frame.
b. Remove the headrest supports.
c. Remove the seatback frame from the seatback cover with pad.
d. Remove the seatback cover from the seatback pad.
11. REMOVE SEAT CUSHION ASSEMBLY
Remove the 4 bolts and seat cushion assembly from the seat adjuster.
12. REMOVE SEAT CUSHION COVER
a. Remove the seat cushion frame.
b. Remove the seat cushion cover from the seat cushion pad.
13. REMOVE FRONT SEAT CUSHION INNER No. 1 SHIELD
14. REMOVE FRONT SEAT CUSHION BRACKET
15. REMOVE FRONT SEAT CUSHION INNER SHIELD
REASSEMBLY
1. INSTALL FRONT SEAT CUSHION INNER SHIELD
2. INSTALL FRONT SEAT CUSHION BRACKET
3. INSTALL FRONT SEAT CUSHION INNER No. 1 SHIELD
4. INSTALL SEAT CUSHION COVER
a. Install the seat cushion cover to seat cushion pad.
b. Install the seat cushion cover with pad to the seat cushion frame.
5. INSTALL SEAT CUSHION ASSEMBLY
Install the seat cushion assembly with 4 bolts to the seat adjuster.
HINT: Tighten the 4 bolts temporarily, then from the bolts on the rear side tighten completely.
6. INSTALL SEATBACK COVER
a. Install the seatback cover to the seatback pad.
b. Install the seatback cover with pad to the seatback frame.
c. Install the headrest supports.
d. w/ Side airbag assembly:
Hang the hook on to the seatback frame.
CAUTION: Take care to hung the hook securely. Otherwise the seat cover slides, it might cause incorrect deploying.
7. INSTALL FRONT SEAT
a. Mount the seat to the vehicle.
b. w/ Side airbag assembly: Connect the connector.
c. Connect the front power seat connector.
d. Tighten the bolts on the rear side temporarily, from the bolt on the inner side tighten completely.
e. Slide the seat to the most rear position to install the bolts on the front side.
8. INSTALL SEATBACK ASSEMBLY
a. Install the seatback assembly with 4 bolts.
HINT: Tighten the 4 bolts temporarily, then from the bolt on the front right side tighten completely.
b. Install front seatback hinge cover with bolts.
c. Install a new hog rings.
HINT: When installing hog rings, take care to prevent wrinkles as much as possible.
d. w/ Side airbag assembly:
Securely fix the side airbag wire harness to seat cushion by clips.
9. INSTALL FRONT SEAT INNER BELT
10. INSTALL HEADREST
11. w/ Lumbar support:
INSTALL LUMBAR SUPPORT LEVER
12. INSTALL SEAT CUSHION LOWER SHIELD
13. INSTALL FRONT POWER SWITCH
14. INSTALL FRONT SEAT CUSHION SHIELD
15. INSTALL SWITCH KNOB
