Front Seat (Power Seat For TMC Made)
DISASSEMBLY1. REMOVE FRONT SEAT
a. Using a screwdriver, remove the seat track covers.
HINT: Tape the screwdriver tip before use.
b. Remove the 4 bolts and front seat with disconnecting the connectors.
NOTE: Be careful not to damage the body.
2. REMOVE HEADREST
3. REMOVE SWITCH KNOBS
4. REMOVE SEAT CUSHION SHIELD
5. REMOVE LOWER SEAT CUSHION SHIELD
6. REMOVE POWER SEAT SWITCH
7. REMOVE SEATBACK ASSEMBLY
a. w/ Side airbag assembly:
Remove the 2 clips of the side airbag wire harness from the seat cushion frame.
b. Remove the 4 bolts and seatback assembly.
8. REMOVE SEATBACK COVER
a. Remove the hog rings and hooks.

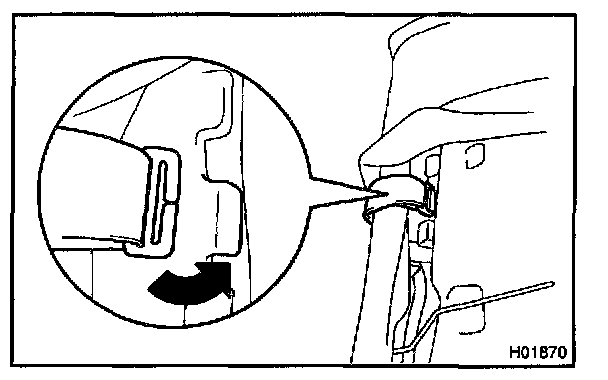

b. w/ Side airbag assembly:
Remove the hook as shown in the illustration.
c. Remove the headrest supports.
d. Remove the hog rings and seatback frame from seatback cover with pad.
e. Remove the hog rings and seatback cover from seatback pad.
9. w/ Seat heater:
IF NECESSARY, REPLACE SEATBACK HEATER
10. REMOVE LUMBAR SUPPORT ADJUSTER
Remove the 2 screws and lumbar support adjuster.
11. REMOVE SEAT CUSHION ASSEMBLY
Remove the 4 bolts and seat cushion assembly.
12. REMOVE SEAT CUSHION COVER
a. Remove the 2 clips, hook and seat cushion frame from seat cushion cover with pad.
b. Remove the hog rings and seat cushion cover from the seat cushion pad.
13. w/Seat heater:
IF NECESSARY, REPLACE SEAT CUSHION HEATER

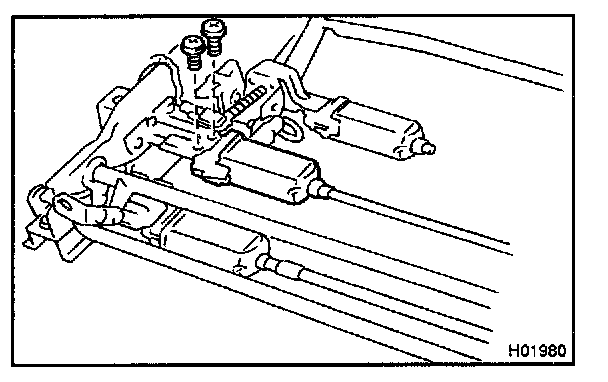

14. REMOVE REAR VERTICAL MOTOR
Remove the 2 screws and front vertical motor.

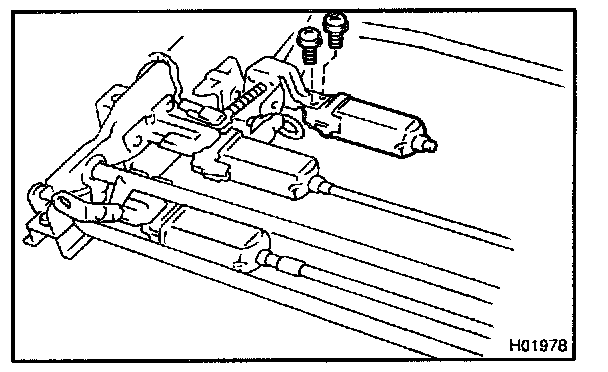

15. REMOVE SLIDE MOTOR
a. Remove the 2 screws.
b. Disconnect the No. 1 drive cable, then remove the slide motor.

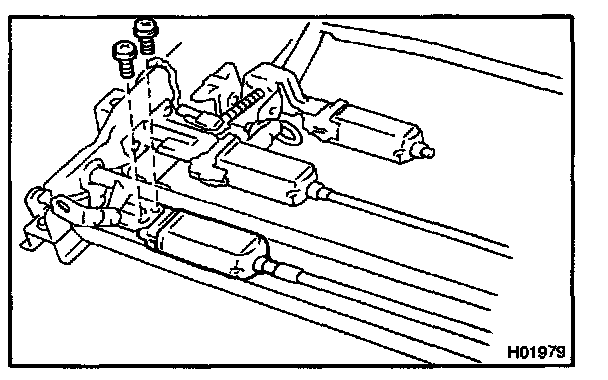

16. REMOVE RECLINING MOTOR
a. Remove the 2 screws.
b. Disconnect the No. 2 drive cable, then remove the reclining motor.
REASSEMBLY

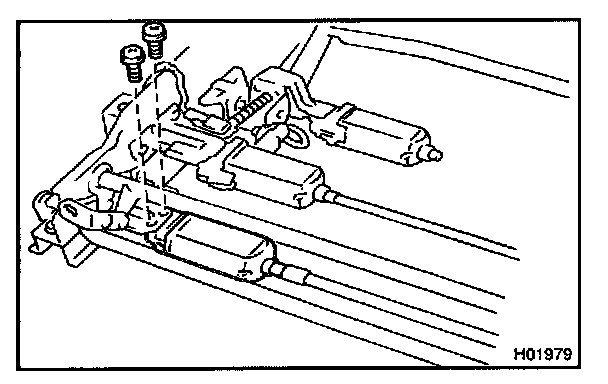

1. INSTALL RECLINING MOTOR
Connect the No. 2 drive cable, then install the reclining motor with 2 screws.

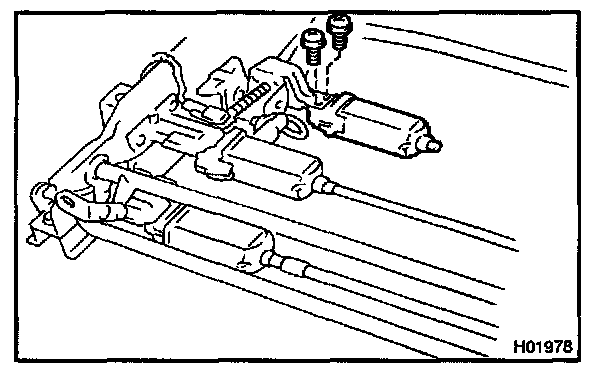

2. INSTALL SLIDE MOTOR
Connect the No. 1 drive cable, then install the slide motor with 2 screws.

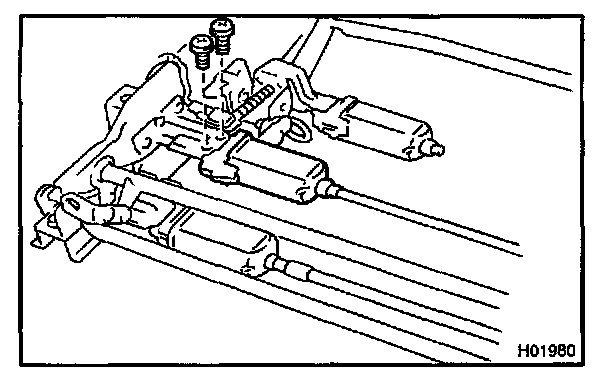

3. INSTALL REAR VERTICAL MOTOR
Install the front vertical motor with 2 screws.
4. INSTALL LOWER SEAT CUSHION SHIELD
5. INSTALL SEAT CUSHION COVER
a. Install the seat cushion cover with new hog rings to seat cushion pad.
HINT: When installing hog ring, take care to prevent wrinkles as much as possible.
b. Install the seat cushion cover with pad to the seat cushion frame with hook and 2 clips.
6. INSTALL SEAT CUSHION ASSEMBLY
Install the seat cushion assembly with 4 bolts.
7. INSTALL SEATBACK COVER
a. Install the seatback cover with new hog rings to the seat-back pad.
HINT: When installing hog ring, take care to prevent wrinkles as much as possible.
b. Install the seatback cover with pad to the seatback frame with new hog rings.
HINT: When installing hog ring, take care to prevent wrinkles as much as possible.
c. Install the headrest supports.

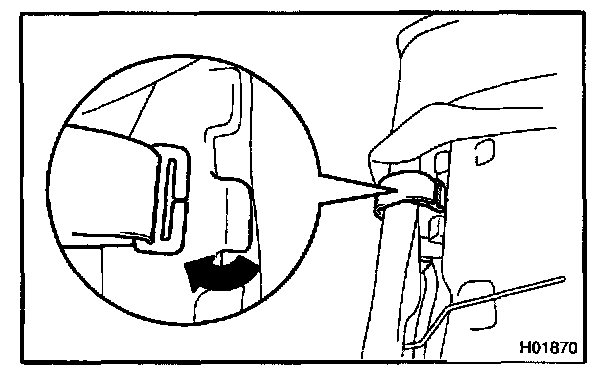

d. w/ Side airbag assembly:
Hang the hook onto the seatback frame.
CAUTION: Take care to hung the hook securely. Otherwise the seat cover slides, it might cause incorrect deploying.
e. Install the new hog rings and engage the hooks.
HINT: When installing hog rings, take care to prevent wrinkles as much as possible.
8. INSTALL SEATBACK ASSEMBLY
a. Install the seatback assembly with 4 bolts.
b. w/ Side airbag assembly: Install the 2 clips of the side airbag wire harness to the seat cushion frame.
c. Install a new hog rings and 7 hooks.
HINT: When installing hog ring, take care to prevent wrinkles as much as possible.
9. INSTALL POWER SEAT SWITCH
10. INSTALL LOWER SEAT CUSHION SHIELD
11. INSTALL SEAT CUSHION SHIELD
12. INSTALL SWITCH KNOBS
13. INSTALL HEADREST
14. INSTALL FRONT SEAT
a. Place the front seat on the vehicle.
NOTE: Be careful not to damage the body.
b. Connect the connectors.
c. Install the front seat with the 4 bolts.
Torque: 37 N.m (375 kgf.cm, 27 ft.lbf)
d. Install the seat track covers.
