Power Seat Switch: Testing and Inspection

TMC made:

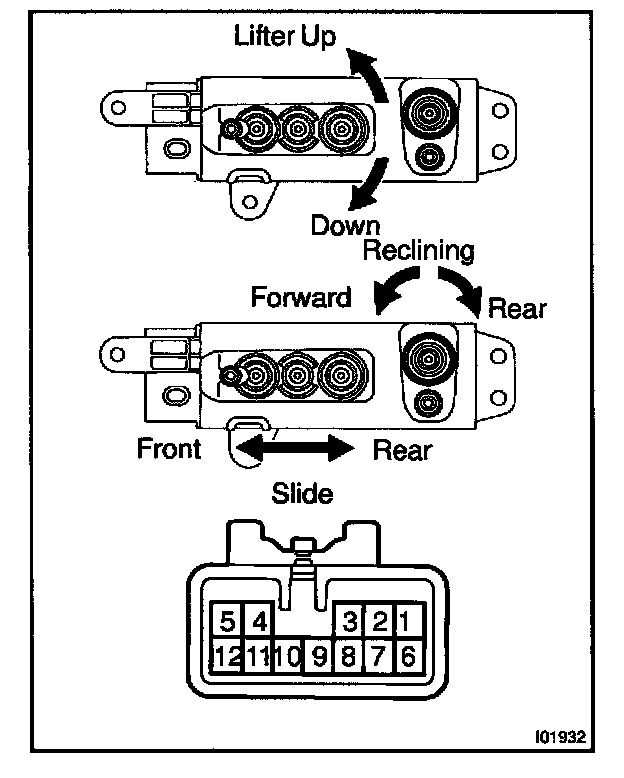

INSPECT DRIVER'S SEAT SWITCH CONTINUITY

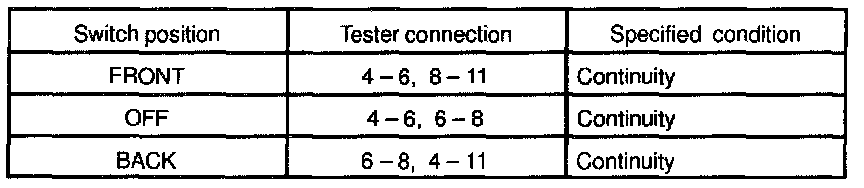

a. Inspect the slide switch.

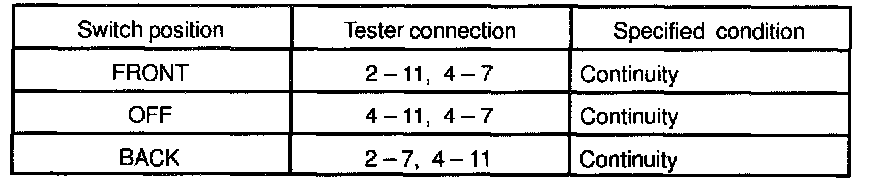

b. Inspect the litter switch.

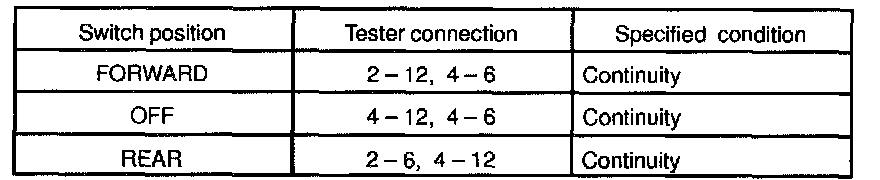

c. Inspect the reclining switch.
If continuity is not as specified, replace the switch.

TMMK made:
INSPECT DRIVER'S SEAT SWITCH CONTINUITY




a. Inspect the slide switch.

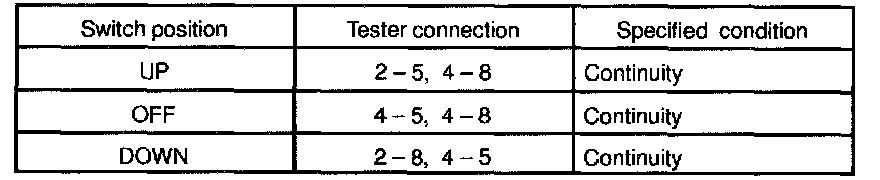

b. Inspect the lifter switch.




c. Inspect the reclining switch.
If continuity is not as specified, replace the switch.
