Headliner: Service and Repair

REMOVAL

1. REMOVE THESE PARTS:
a. Rear seat cushion
b. Rear seatback and rear side seatbacks
c. Front door scuff plates
d. Front seat belt shoulder anchor bolts
e. Sun visor and holders
f. Assist grips
g. Front pillar garnishes
h. Rear door scuff plates
i. Lower center pillar garnishes

2. REMOVE ROOF SIDE INNER GARNISH

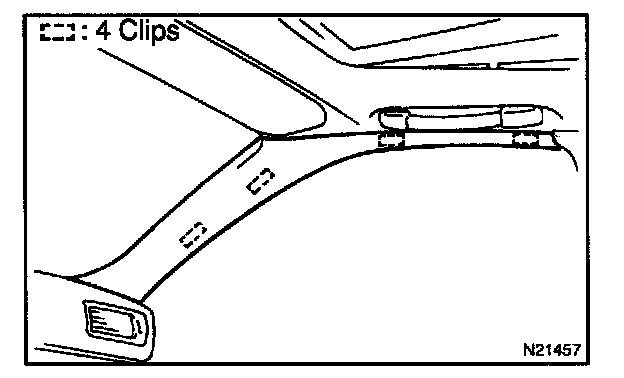

3. REMOVE FRONT PILLAR GARNISH




a. Pry out clips by your hand.
b. Pull the garnish upward to remove it.

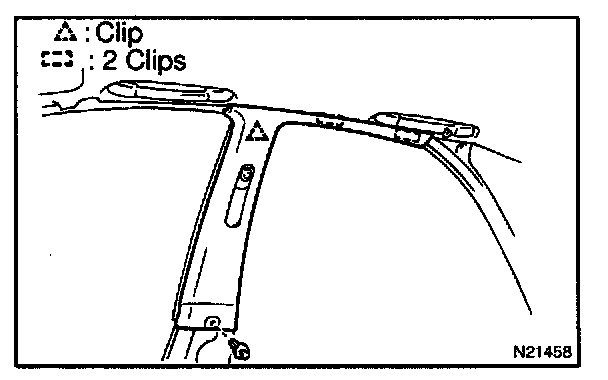

4. REMOVE CENTER PILLAR GARNISH




a. Remove the clip.
b. Pry off the garnish.

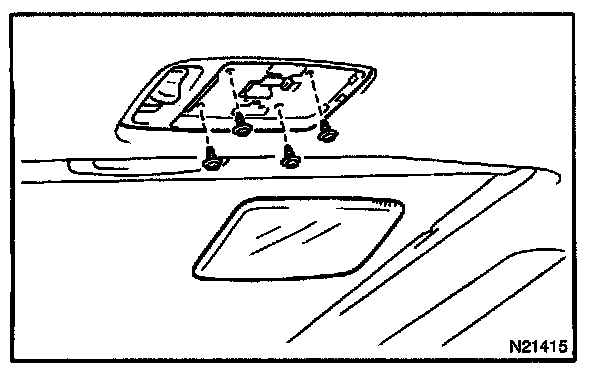

5. REMOVE ROOM LIGHT




a. Using a screwdriver, remove the room light cover.

HINT: Tape the screwdriver tip before use.

b. Remove the 4 screws, then disconnect the connector.

6. REMOVE MAP LIGHT ASSEMBLY

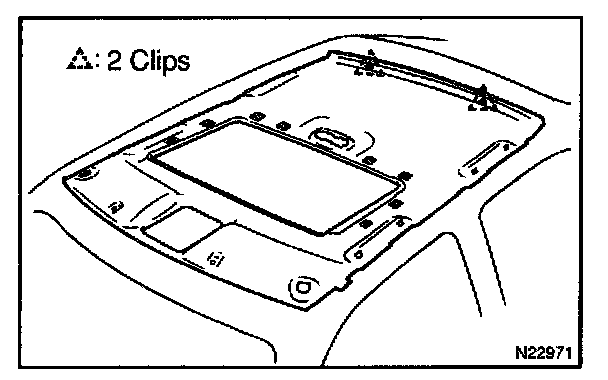

7. REMOVE ROOF HEADLINING




a. Remove the 2 clips from the roof panel rear end.
b. Remove the headlining.
c. Bring out the headlining.

INSTALLATION
Installation is in the reverse order of removal.
