Overhaul

DISASSEMBLY

1. REMOVE THESE PARTS:
a. No.1 defroster nozzle garnish
b. No.1 defroster nozzle
c. RH side defroster duct nozzle
d. No.1 side defroster duct nozzle
e. No.1 heater duct to register
f. No.2 heater duct to register
g. No.2 register assembly
h. No.3 register assembly
i. No.1 register assembly

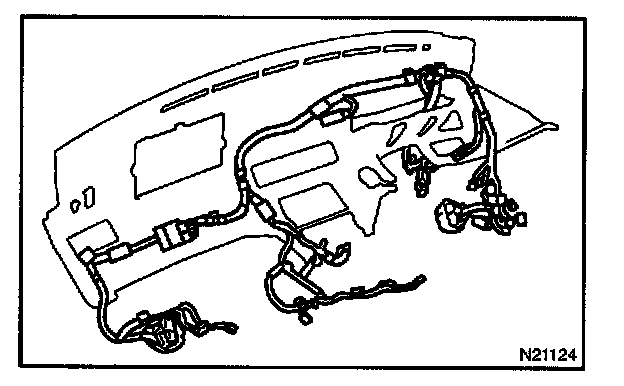

2. REMOVE INSTRUMENT PANEL WIRE HARNESS




Remove the 2 brackets, 8 clips and wire harness.

3. REMOVE INSTRUMENT PANEL CENTER BRACKET
4. REMOVE THESE PARTS:
a. Clock unit
b. Glove box light assembly

REASSEMBLY
Reassembly is in the reverse order of disassembly.
