Front Bumper: Service and Repair

REMOVAL
1. REMOVE ENGINE UNDER COVER
2. REMOVE FENDER LINER





3. REMOVE TURN SIGNAL LIGHT ASSEMBLY

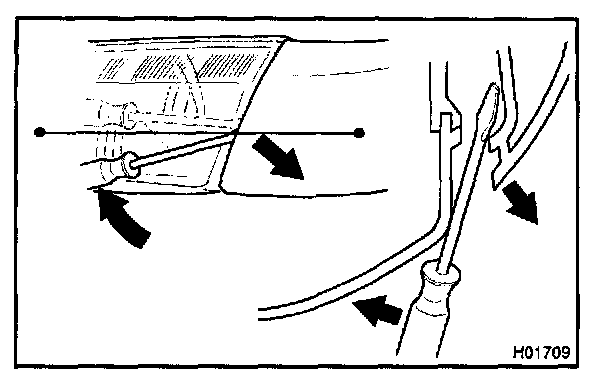

Remove the turn signal light assembly as shown in the illustration.

4. REMOVE BUMPER COVER

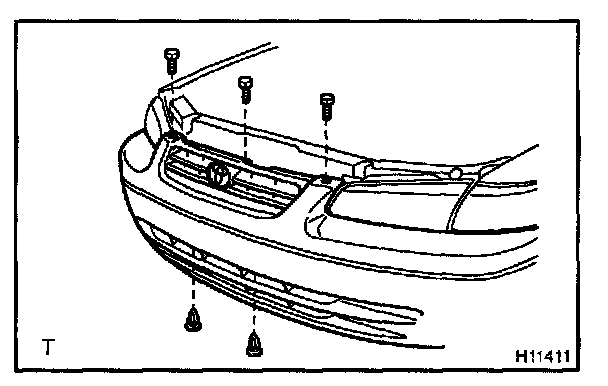

a. Remove the 3 bolts and 2 clips.

Torque: 5.5 N.m (55 kgf.cm, 49 in.lbf)

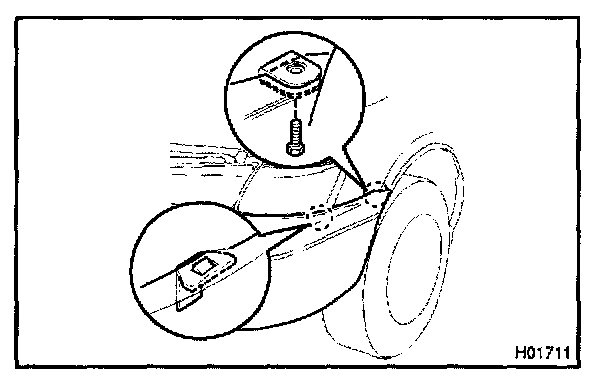

b. Remove the bolt holding the bumper end to the fender.

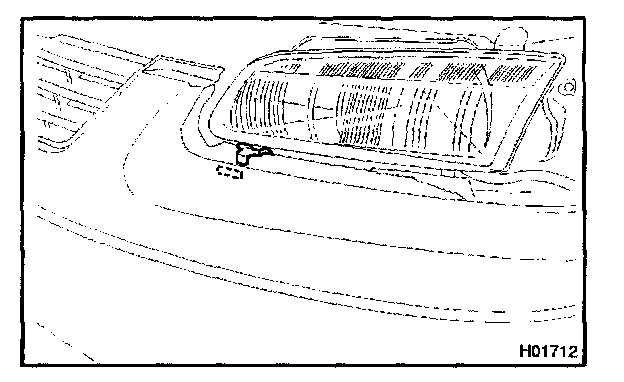

c. Pull the bumper cover forward to remove the bumper cover from the clip under the turn signal light area.




d. Pull the bumper cover forward to remove it.

HINT: At the time of installation, please refer to the following item. Align the holes of the bumper cover with the 2 bumper stays of the reinforcement.

5. REMOVE FRONT BUMPER ENERGY ABSORBER
6. REMOVE FRONT BUMPER REINFORCEMENT

Torque: 34 N.m (350 kgf.cm, 25 ft.lbf)

7. REMOVE FRONT BUMPER UPPER REINFORCEMENT SUB-ASSEMBLY

INSTALLATION
Installation is in the reverse order of removal.
