Camry LE Sedan V6-3.0L (1MZ-FE)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Antitheft and Alarm Systems
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>
Engine Immobiliser System
Engine Immobiliser System

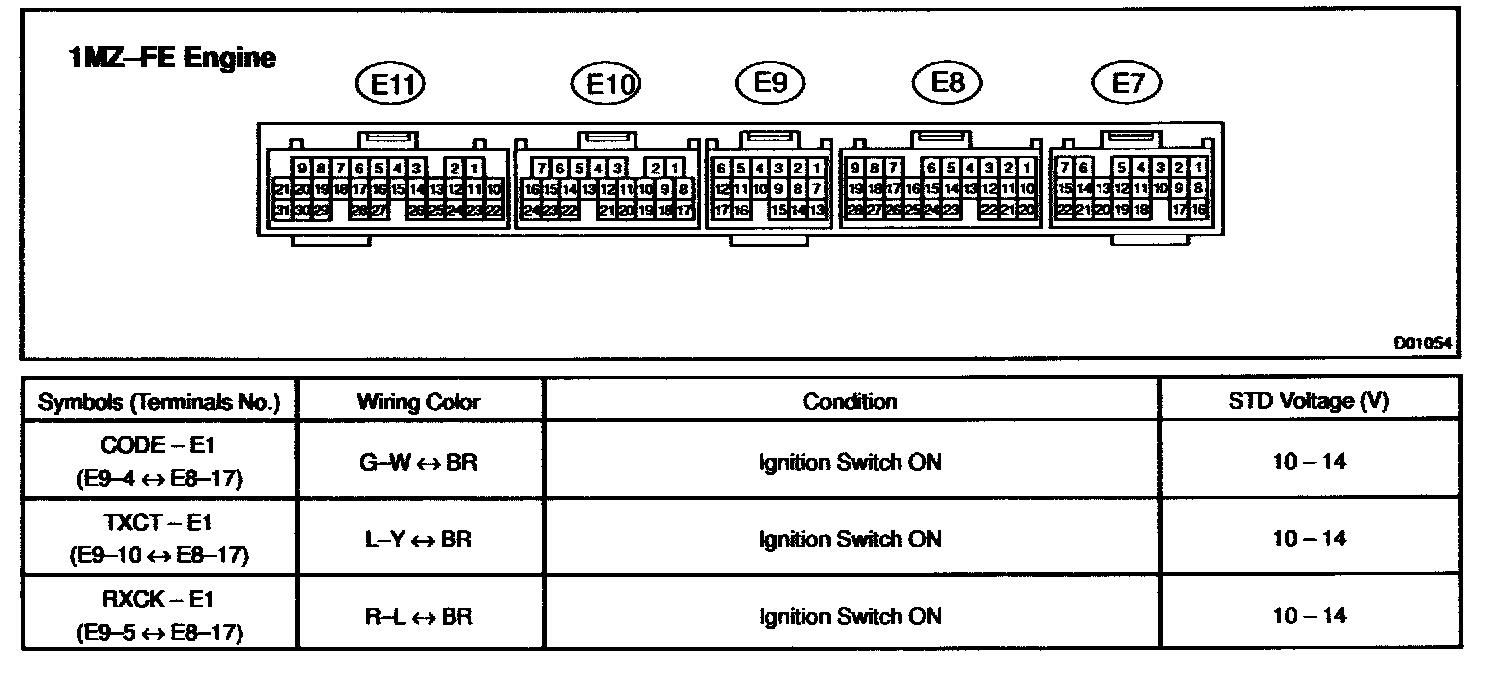

ECM - 1MZ-FE Engine:

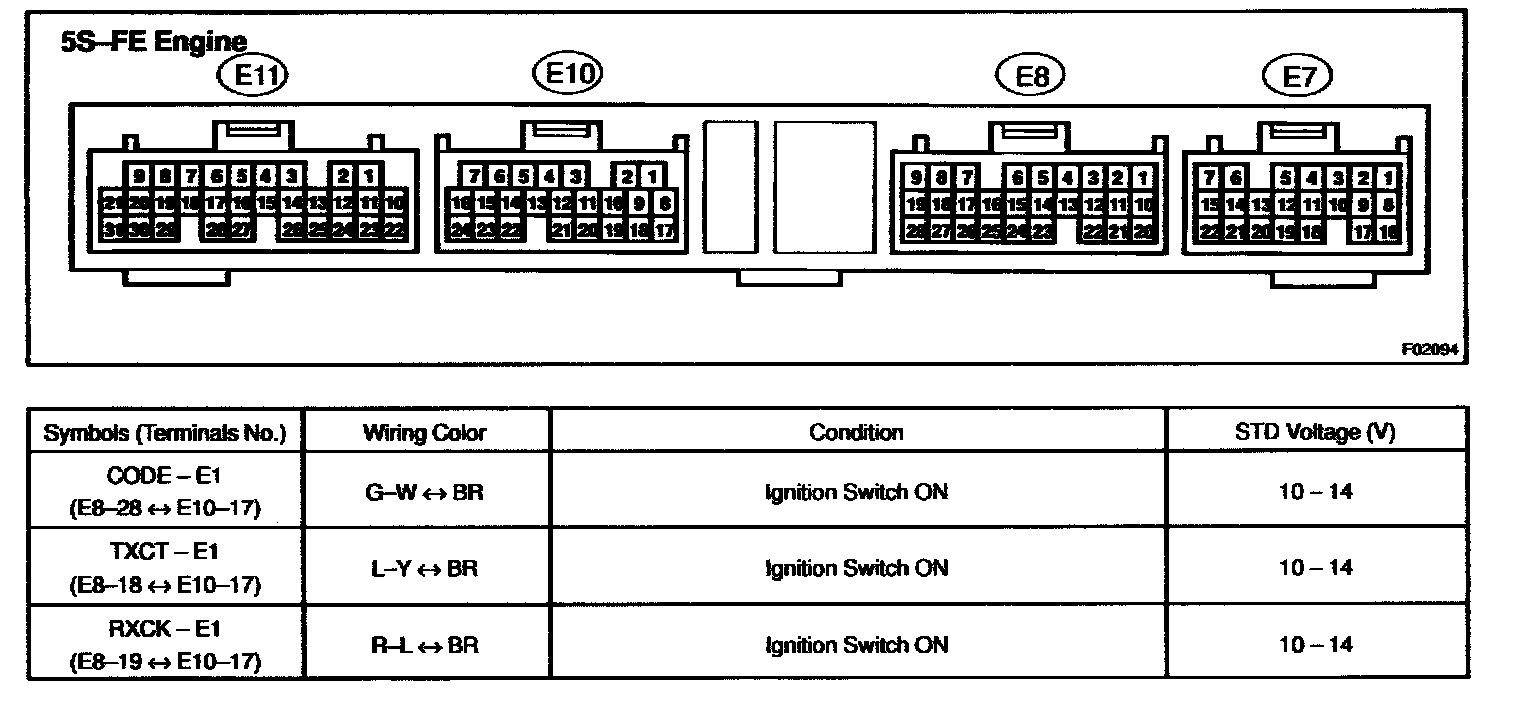

ECM - 5S-FE Engine:
