SAE Controlled Codes

NOTE: This article contains corrected data processed from TSB# PG001-05.

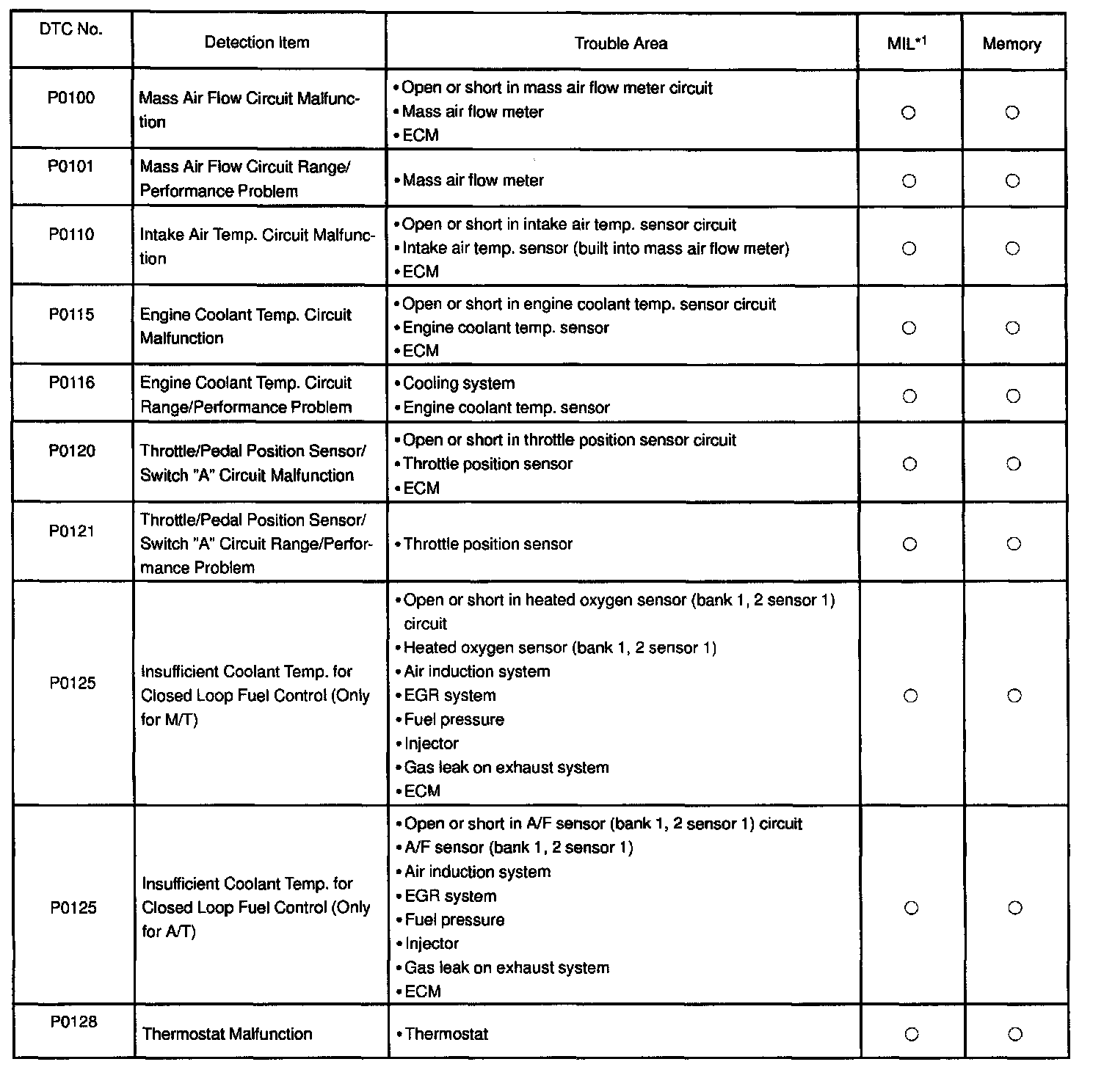

P0100 - P0128:

P0130 - P0174:

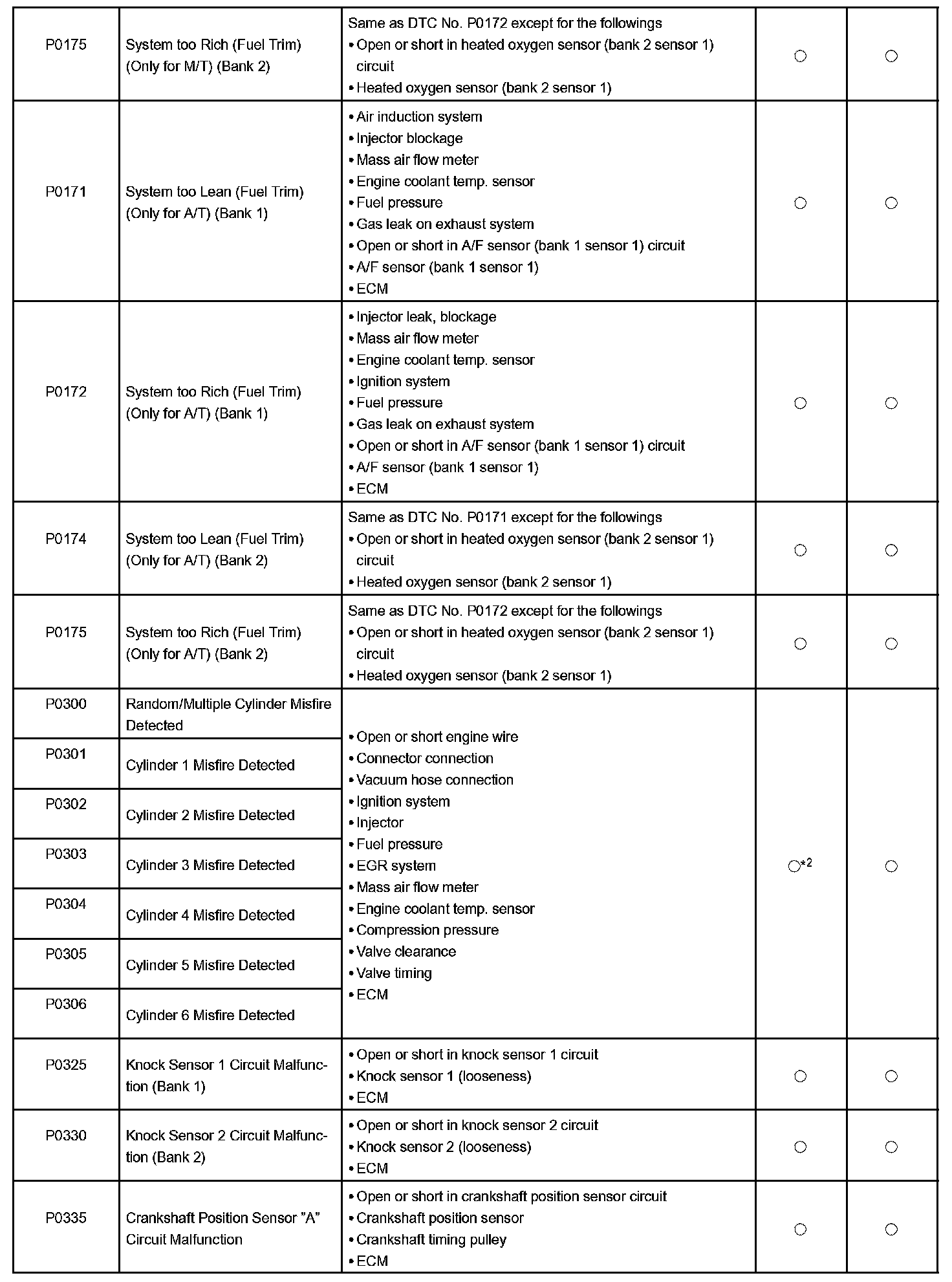

P0175 - P0335:

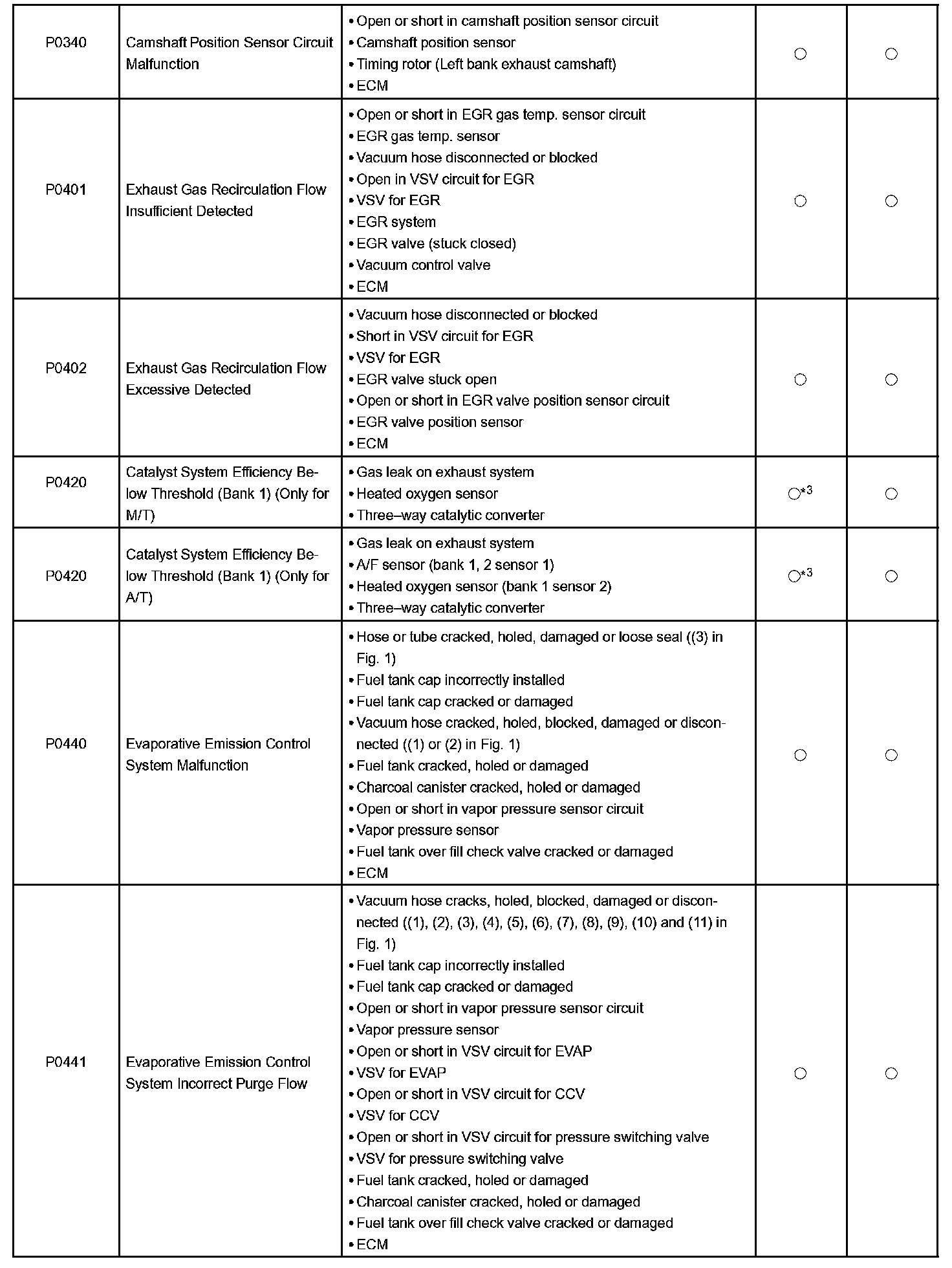

P0340 - P0441:

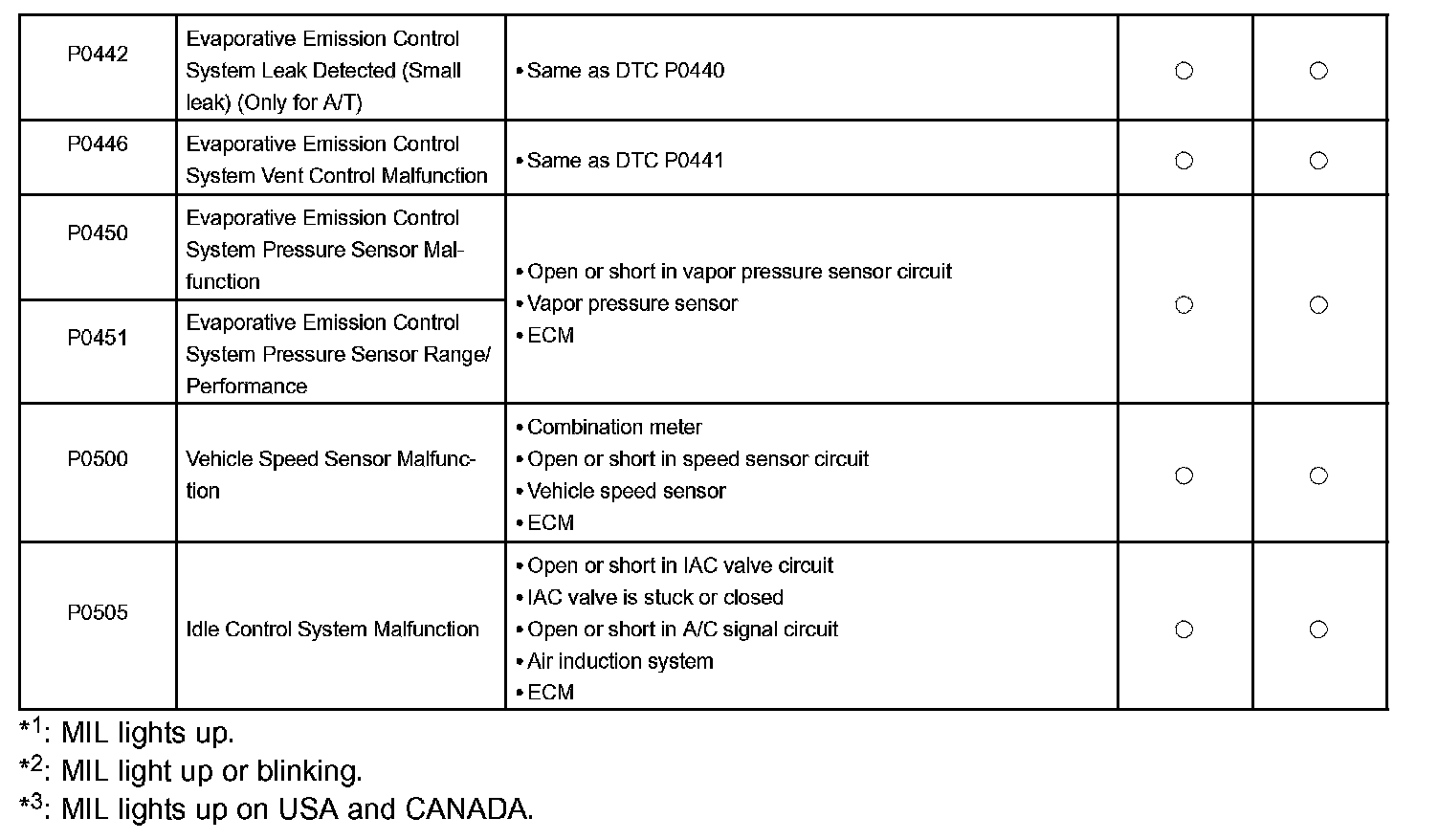

P0442 - P0505:

HINT: Parameters listed in the chart may not be exactly the same as your reading due to the type of instrument or other factors.

If a malfunction code is displayed during the DTC check in the check mode, check the circuit for the codes listed in the table below. For details of each code, refer to the "See page " under the respective "DTC No." in the DTC chart.
*1: MIL lights up.
*2: MIL light up or blinking.
*3: MIL lights up on USA and CANADA.
