C1249
>>
ABS W/Traction Control (TRAC)
ABS W/Traction Control (TRAC)
CIRCUIT DESCRIPTION

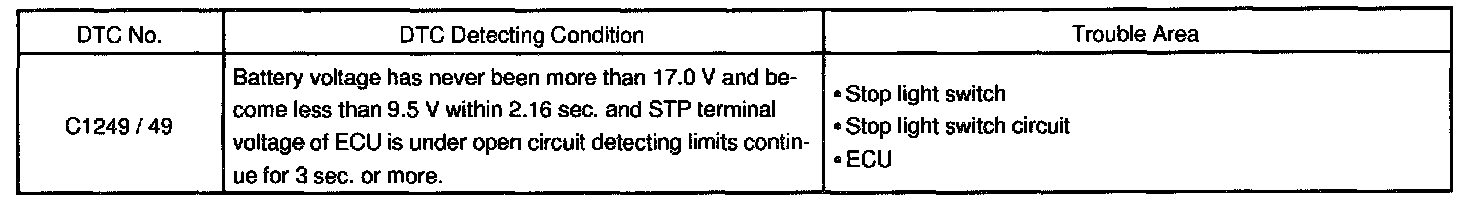

DTC Detecting Condition:

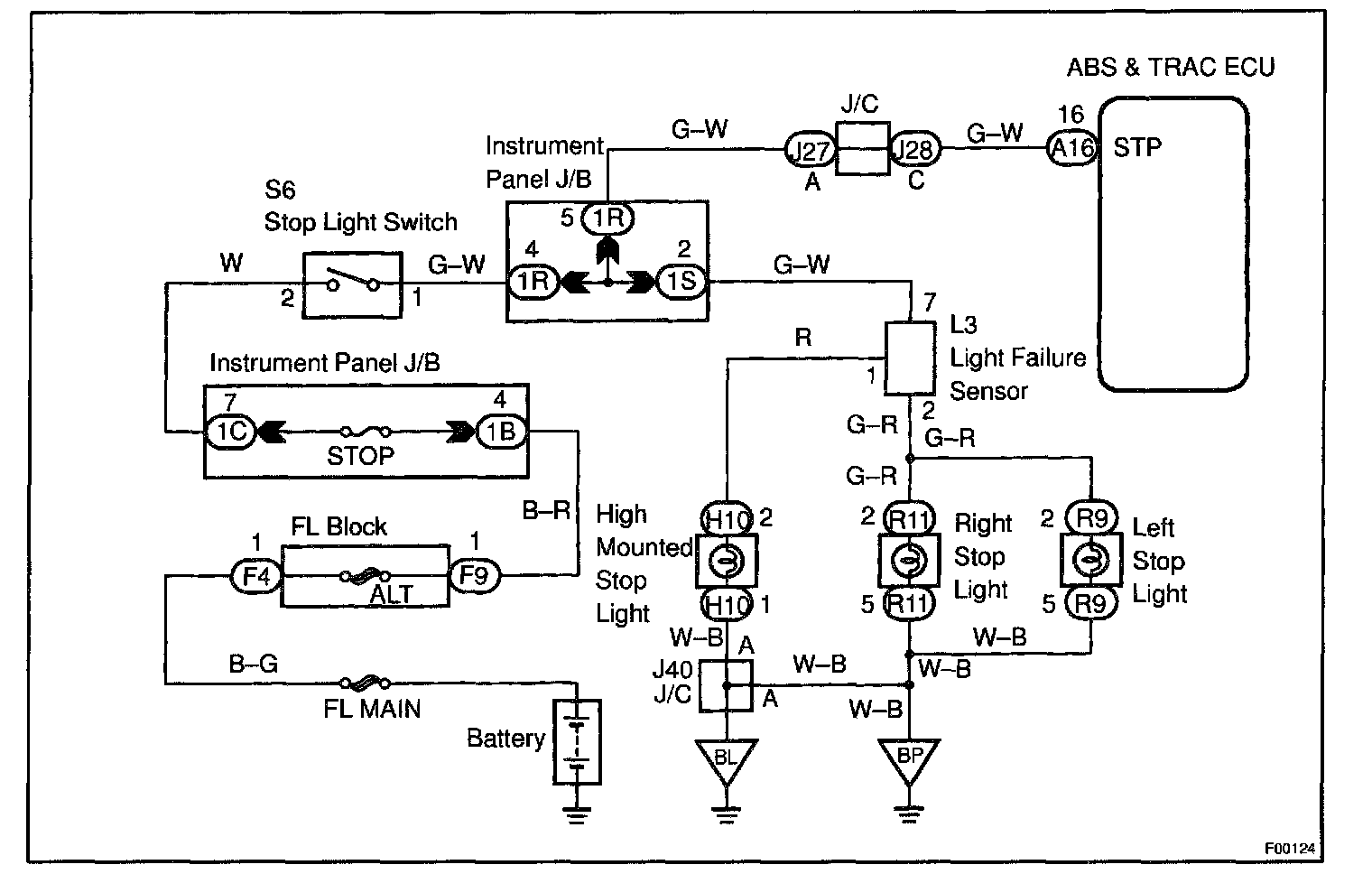

Wiring Diagram:

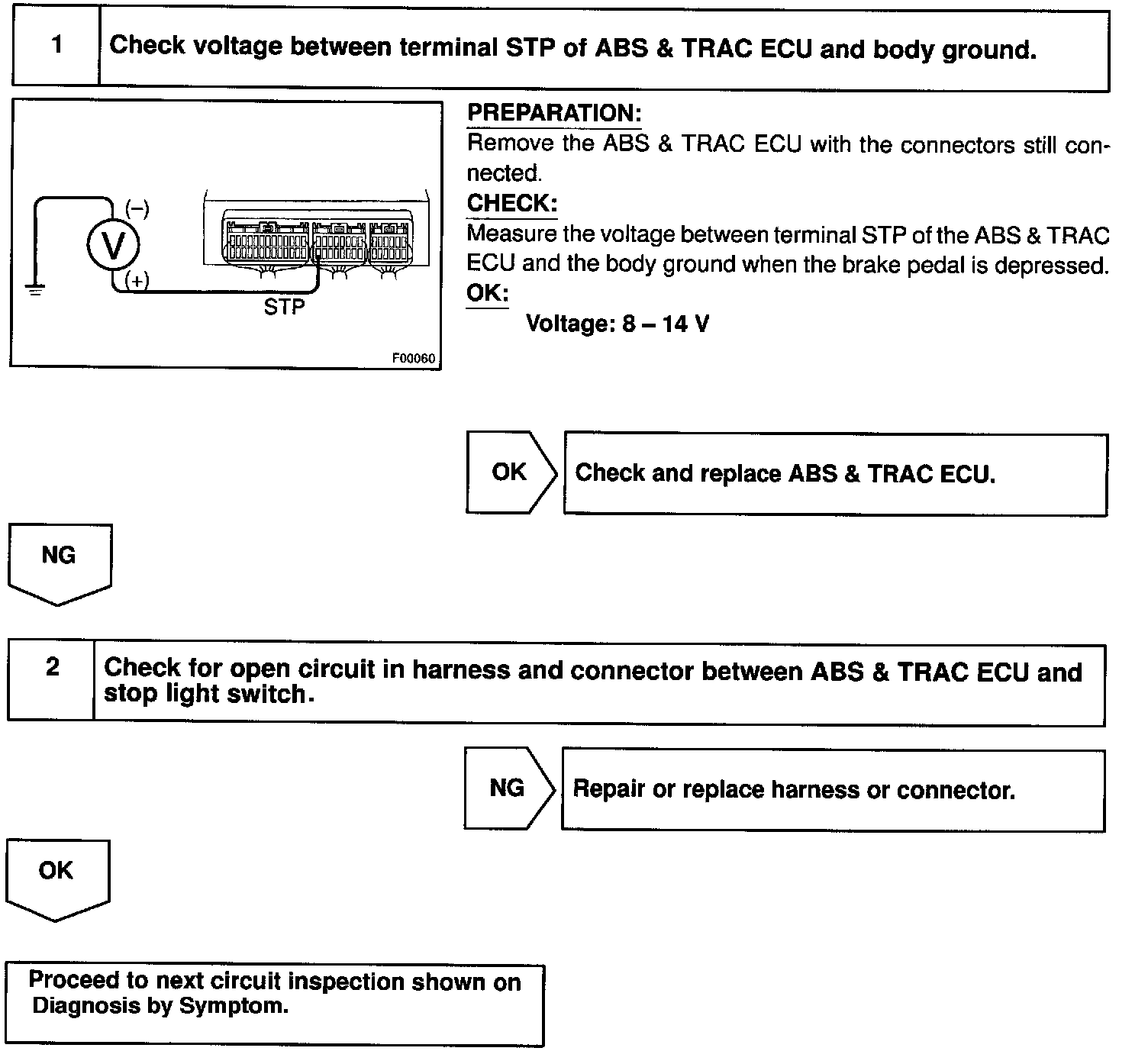

Steps 1 - 2:
INSPECTION PROCEDURE
