Back Window Glass: Service and Repair

REMOVAL




1. REMOVE REAR SEAT

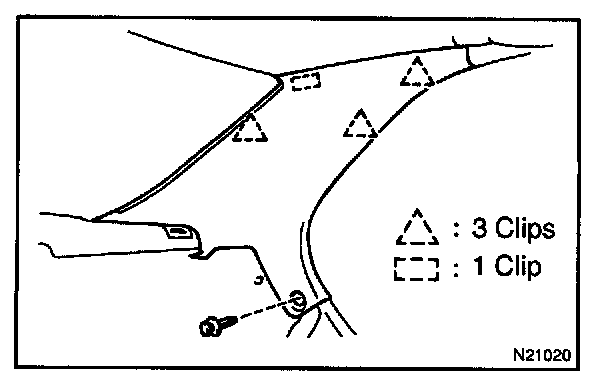

2. REMOVE ROOF SIDE INNER GARNISH

a. Remove the clip.
b. Using a screwdriver, pry loose and remove the garnish.

HINT: Tape the screwdriver tip before use.

c. Employ the same manner described above to the other side.

3. REMOVE HIGH-MOUNTED STOP LIGHT

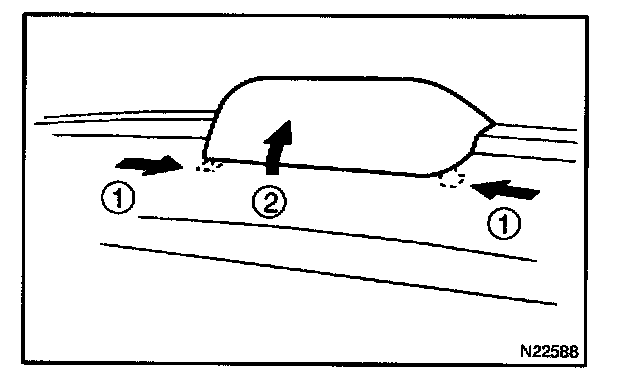

a. Push on the both side of the cover to release the claws by your hand and remove the cover as shown in the illustration.
b. Remove the 2 bolts and high-mounted stop light, then disconnect the connector.

4. REMOVE TETHER ANCHOR
a. Using a screwdriver, remove the CRS tether anchor cover.

HINT: Tape the screwdriver tip before use.

b. Remove the tether anchor by loosening the bolt.
c. Employ the same manner described above to the other side.

5. REMOVE PACKAGE TRAY TRIM




a. Remove the rear seat belt floor anchor bolts.
b. Remove the seat belts with seat belt hole covers from the package tray trim.
c. Remove the package tray trim by pulling forward.

6. REMOVE ROOM PARTITION TRIMS

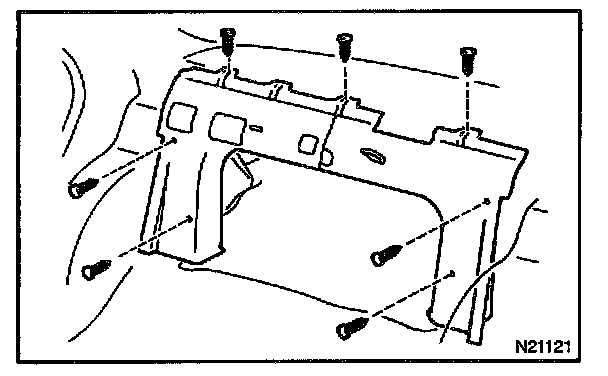

Remove the 7 clips and room partition trims.

7. REMOVE ASSIST GRIPS
8. REMOVE REAR PART OF ROOF HEADLINING
9. DISCONNECT DEFOGGER WIRE CONNECTORS
10. REMOVE BACK WINDOW MOULDING

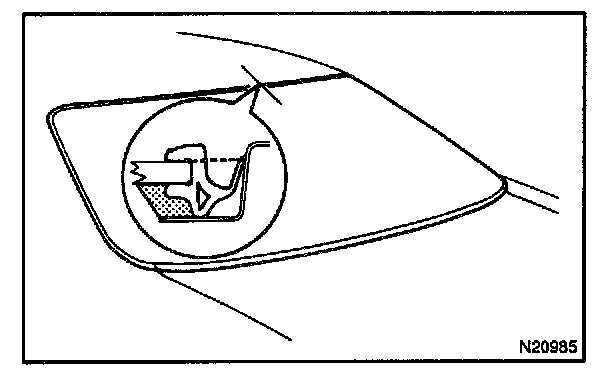

Using a knife, cut off the moulding as shown in the illustration.

NOTE: Do not damage the body with the knife.

11. REMOVE BACK WINDOW GLASS
Remove the glass in the same way as windshield.

INSTALLATION

HINT: Refer to the installation of windshield, install back window glass by the following operations.

1. CLEAN AND SHAPE CONTACT SURFACE OF BODY
2. CLEAN REMOVED GLASS




3. REPLACE STOPPERS
4. POSITION GLASS
5. CLEAN CONTACT SURFACE OF GLASS
6. INSTALL DAM

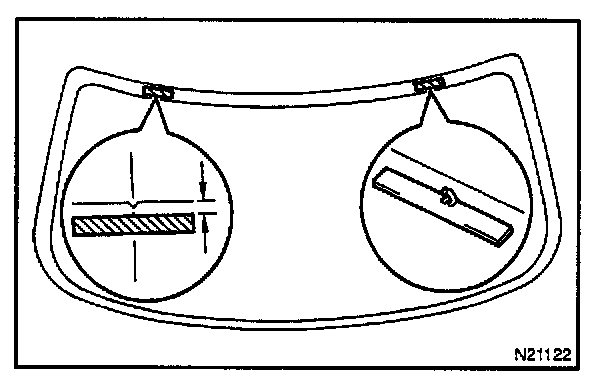

Install the dam with double-stick tape as show in the illustration.

NOTE: Do not touch the glass face after cleaning it.

7. COAT CONTACT SURFACE OF BODY WITH PRIMER "M"
8. COAT CONTACT SURFACE OF GLASS WITH PRIMER "G"

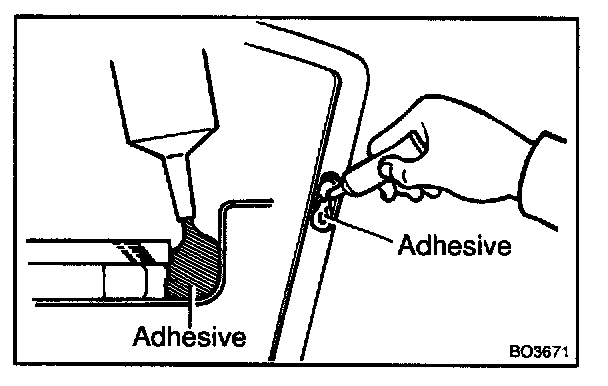

9. APPLY ADHESIVE AT MOULDING INSTALLATION AREA
10. INSTALL BACK WINDOW MOULDING

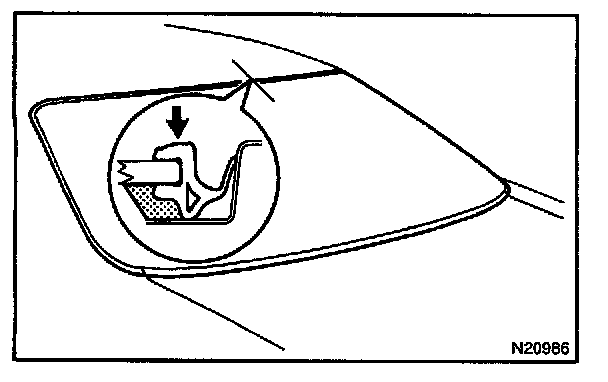

Place the moulding onto the body and tap it by hand.

11. APPLY ADHESIVE
12. INSTALL GLASS
13. INSPECT FOR LEAKS AND REPAIR
14. CONNECT DEFOGGER CONNECTORS
15. INSTALL REAR PART OF ROOF HEADLINING
16. INSTALL ASSIST GRIPS
17. INSTALL PACKAGE TRAY TRIM
18. INSTALL TETHER ANCHOR

a. Install the tether anchor by tightening the bolt.

Torque: 20 N.m (204 kgf.cm, 15 ft.lbf)

b. Install the CRS tether anchor cover to the tether anchor.
c. Employ the same manner described above to the other sides.

19. INSTALL ROOM PARTITION TRIMS
20. INSTALL REAR SEAT BELT FLOOR ANCHOR BOLTS

Torque: 42 N.m (420 kgf.cm, 31 ft.lbf)

21. INSTALL HIGH-MOUNTED STOP LIGHT
22. INSTALL ROOF SIDE INNER GARNISHES
23. INSTALL REAR SEAT
