Removal and Installation

Generator:

REMOVAL

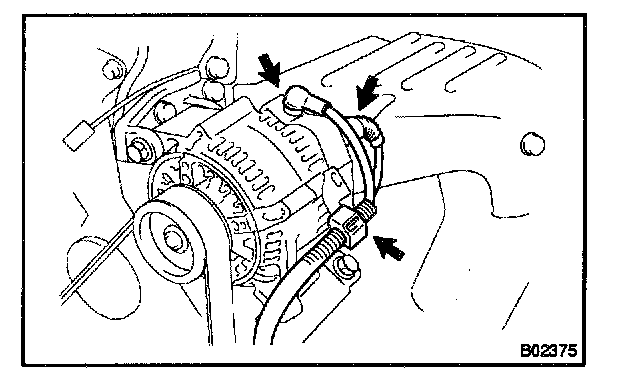

1. DISCONNECT CONNECTOR AND WIRE FROM GENERATOR
a. Disconnect the wire clamp from the wire clip on the rectifier end frame.
b. Disconnect the generator connector.
c. Remove the rubber cap and nut, and disconnect the generator wire.




2. REMOVE GENERATOR

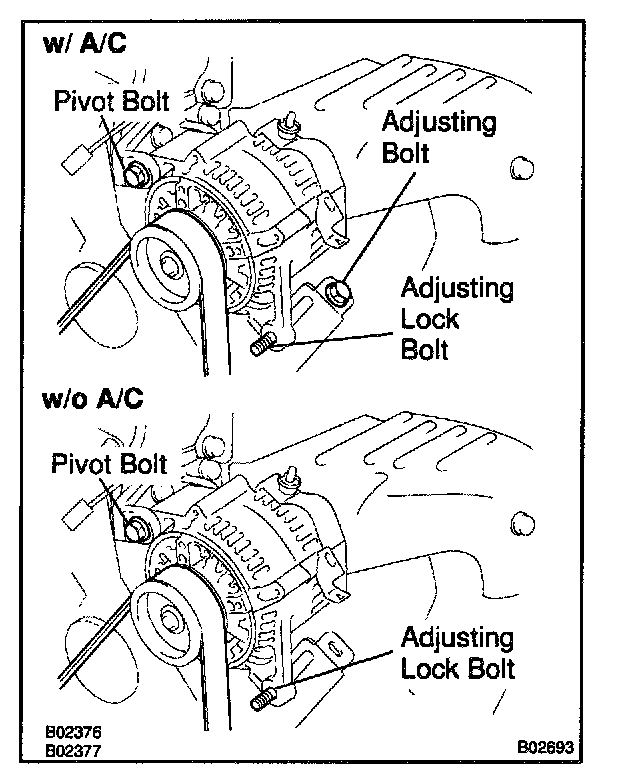

a. Loosen the adjusting lock bolt (w/ A/C), adjusting bolt and
pivot bolt.
Torque:
Pivot bolt: 52 N.m (530 kgf.cm, 38 ft.lbf)
Adjusting lock bolt (w/ A/C) or adjusting bolt (w/o A/C)
18 N.m (185 kgf.cm, 13 ft.lbf)
b. Remove the drive belt.
c. Remove the adjusting lock bolt (w/ A/C) or adjusting bolt (w/o A/C) and pivot bolt.
d. Remove the generator.

INSTALLATION
Installation is in the reverse order of removal.
