Service Data

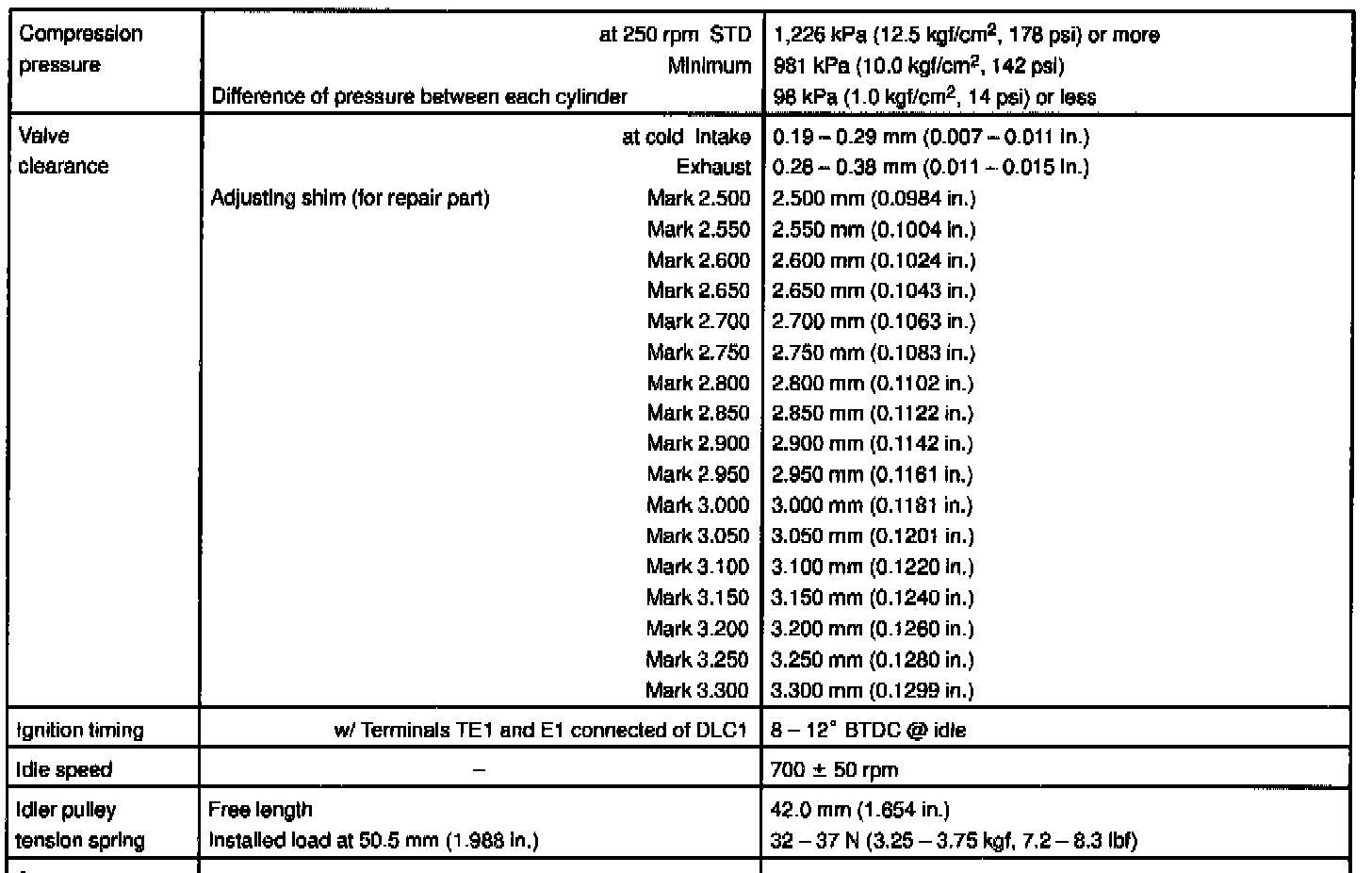

5S-FE Engine Mechanical Data:

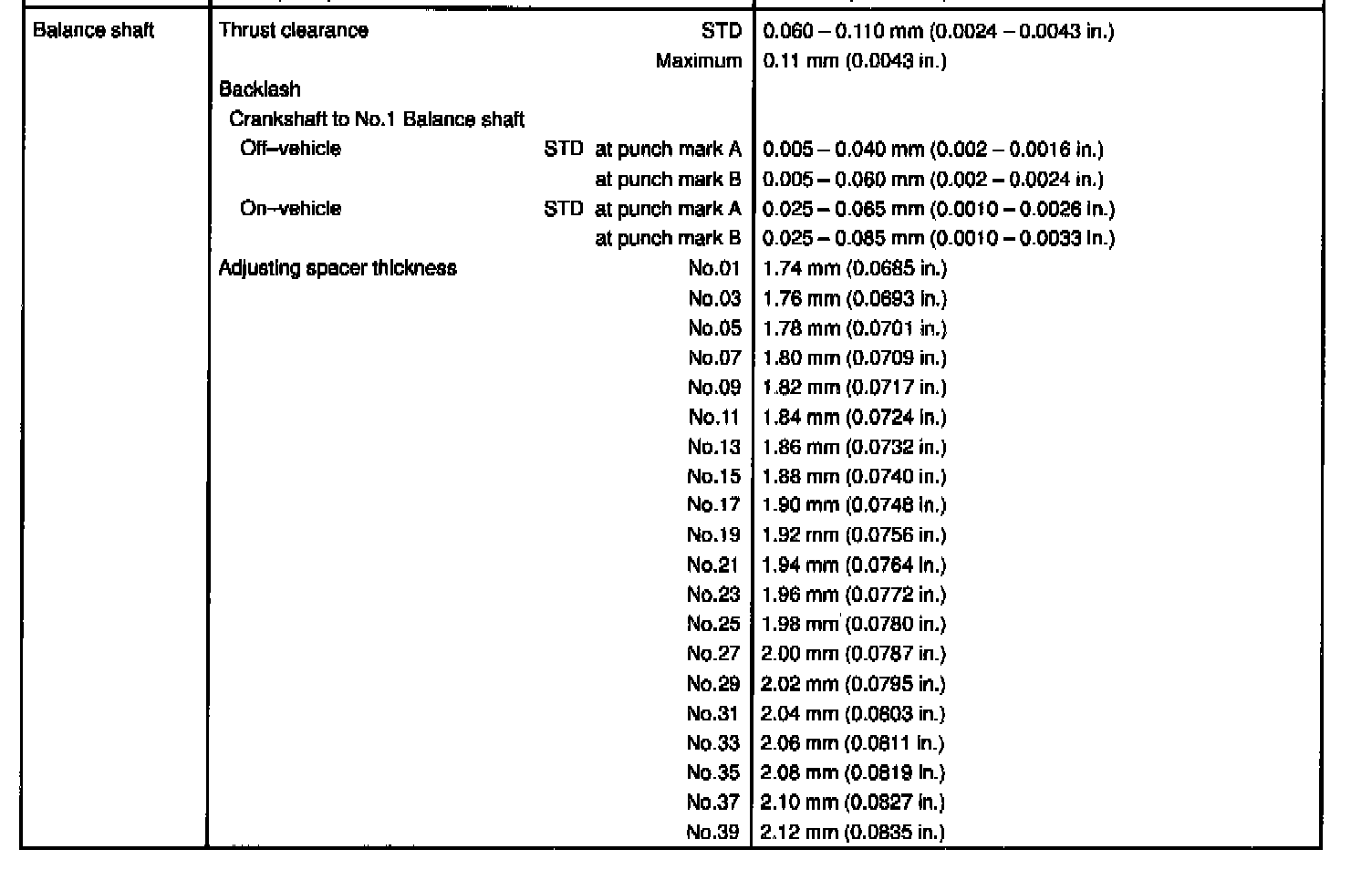

5S-FE Engine Mechanical Cont.:

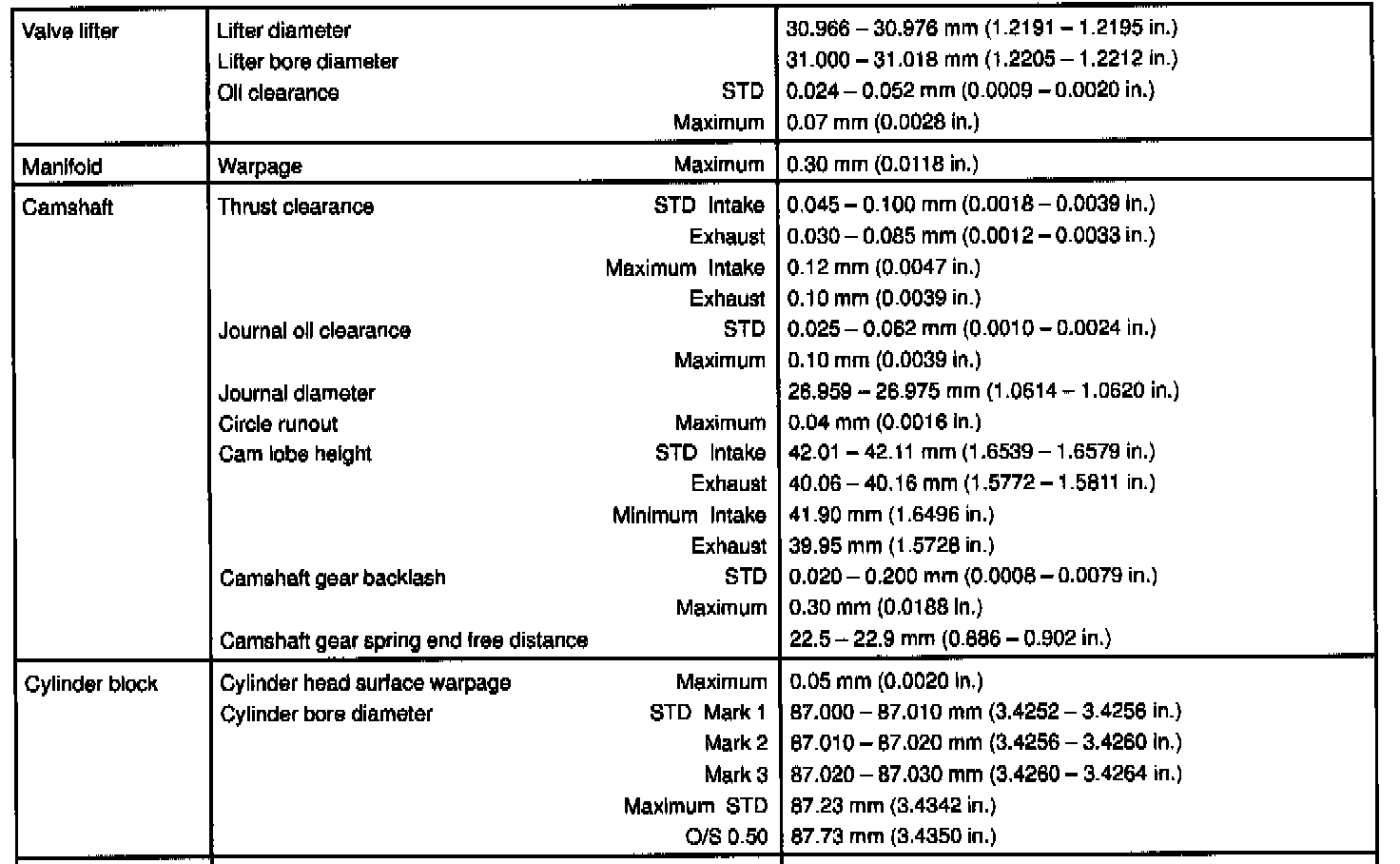

5S-FE Engine Mechancial Cont.:

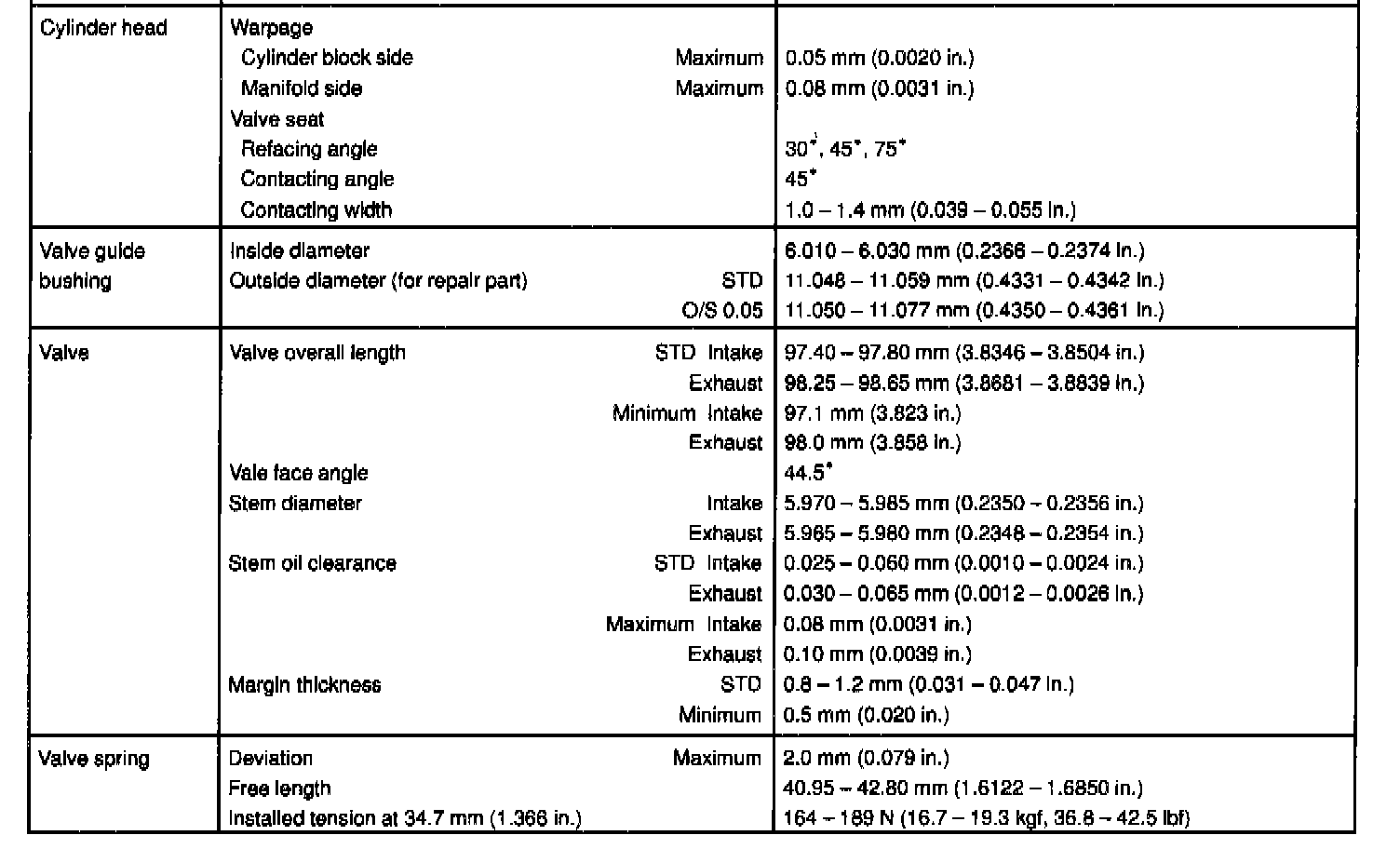

5S-FE Engine Mechanical Cont.:

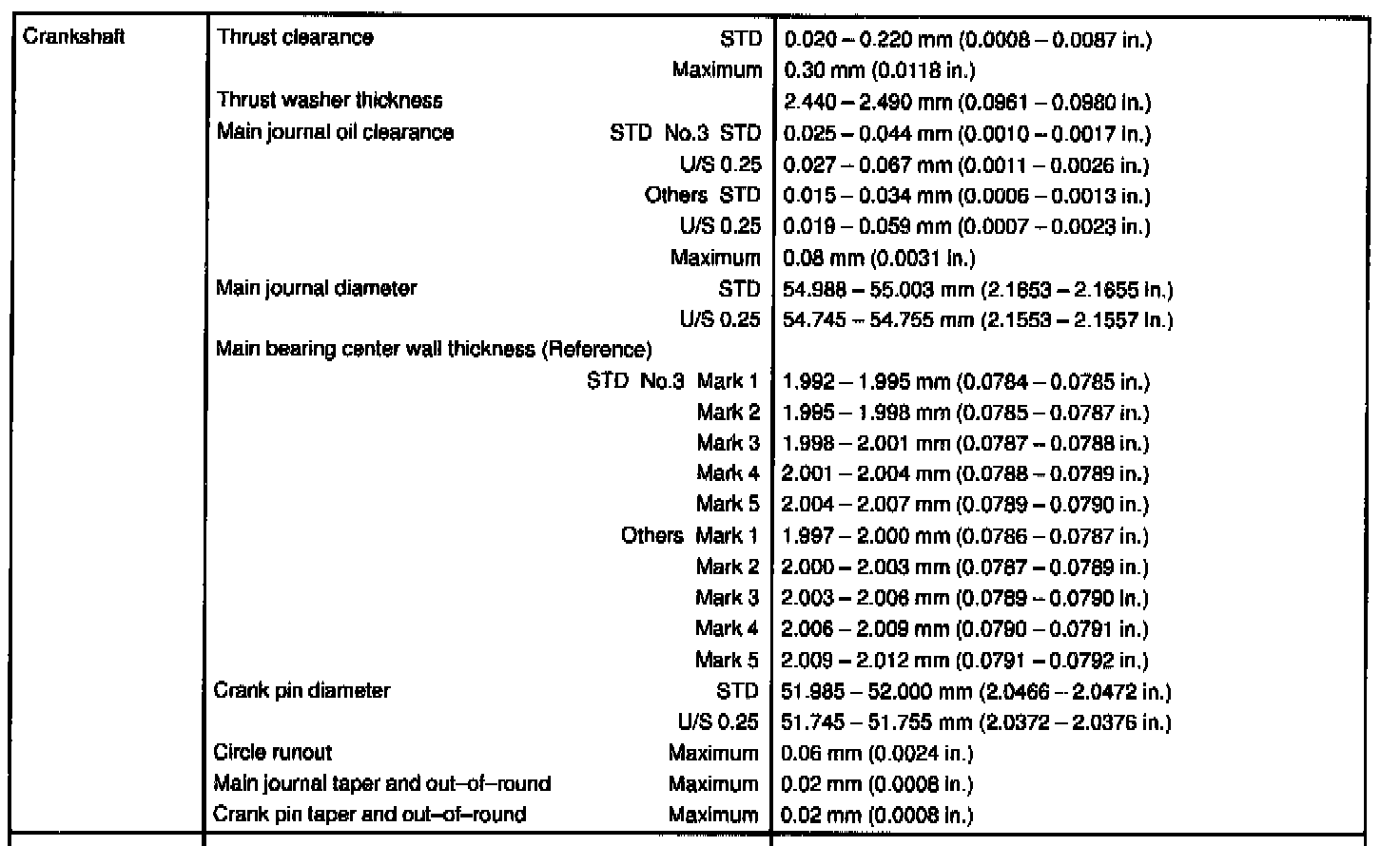

5S-FE Engine Mechanical Cont.:




5S-FE Engine Mechanical Cont.:
