Camry LE Sedan L4-2164cc 2.2L DOHC (5S-FE) MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
Fail-Safe Operation
Fail-Safe Operation

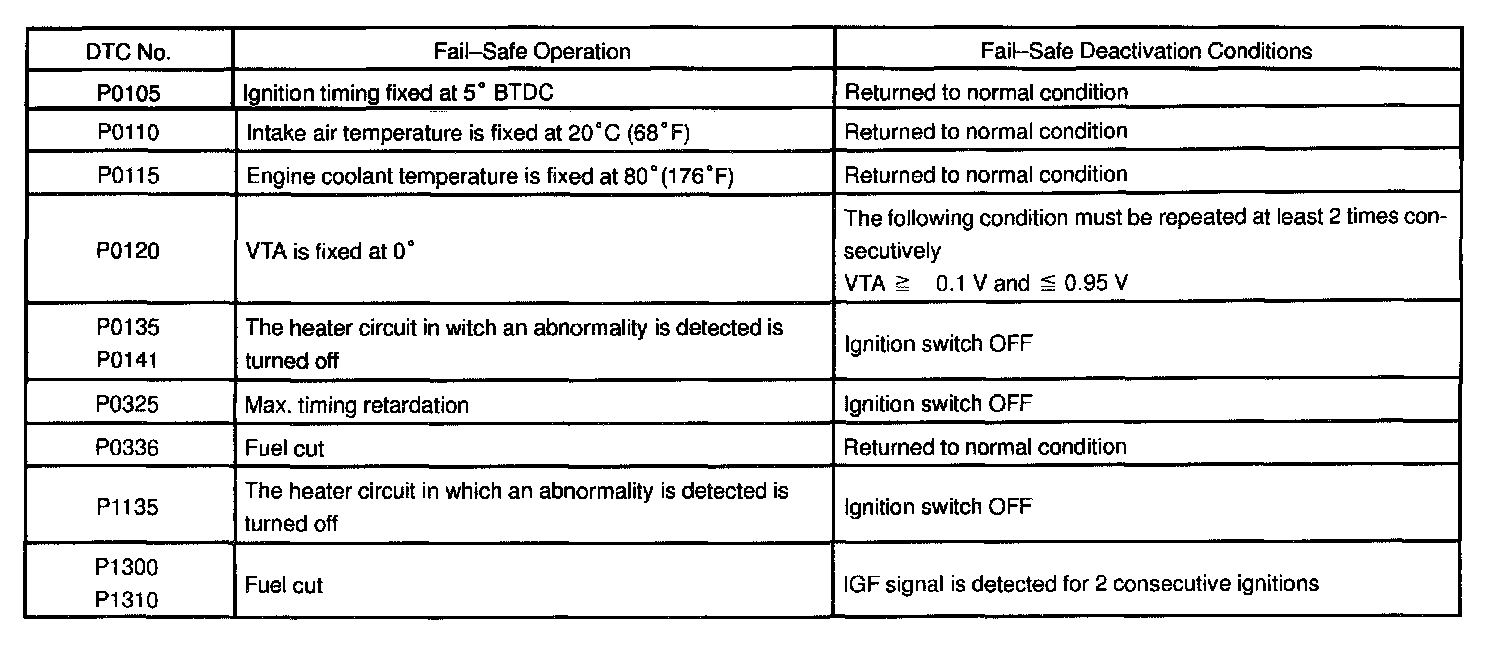

FAIL-SAFE CHART
Steps 1 - 3:
If any of these codes are recorded, the
ECM
enters fail-safe mode.
