Crankshaft Position Sensor: Testing and Inspection

a. Disconnect the crankshaft position sensor connector.

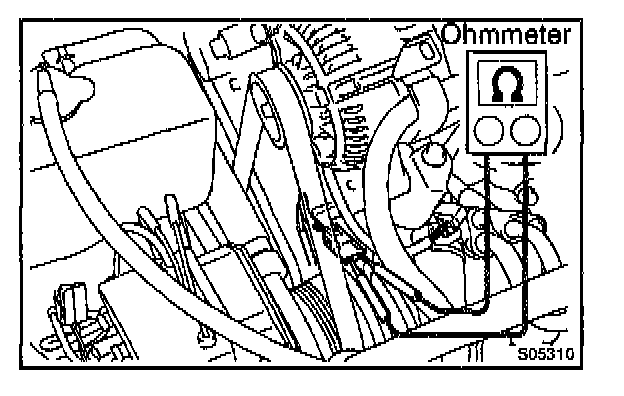

b. Using an ohmmeter, measure the resistance between terminals.

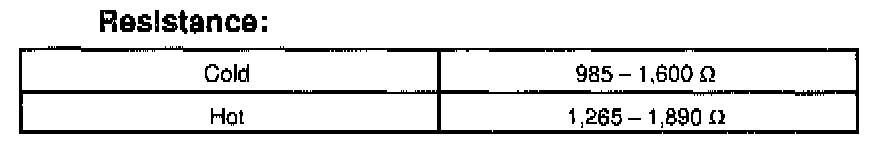

Resistance:

If the resistance is not specified, replace the sensor.
c. Reconnect the crankshaft position sensor connector.
