Camry LE Sedan L4-2164cc 2.2L DOHC (5S-FE) MFI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Connector Views
>>
Engine Compartment
Engine Compartment

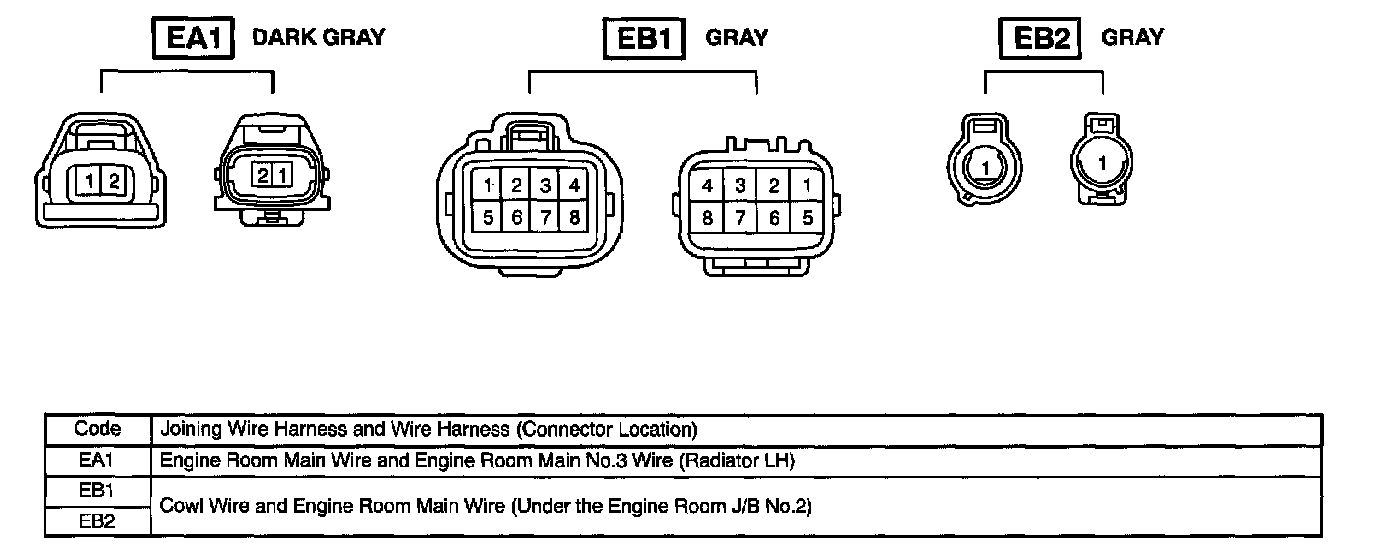

Wire Harness To Wire Harness Connectors (EA1, EB1 - EB2):
