Removal And Installation

Condenser Fan:

REMOVAL
1. 1MZ-FE engine models only:
DRAIN ENGINE COOLANT FROM RADIATOR

HINT: It is not necessary to drain out all the coolant.

2. 1MZ-FE engine models only:
DISCONNECT UPPER RADIATOR HOSE

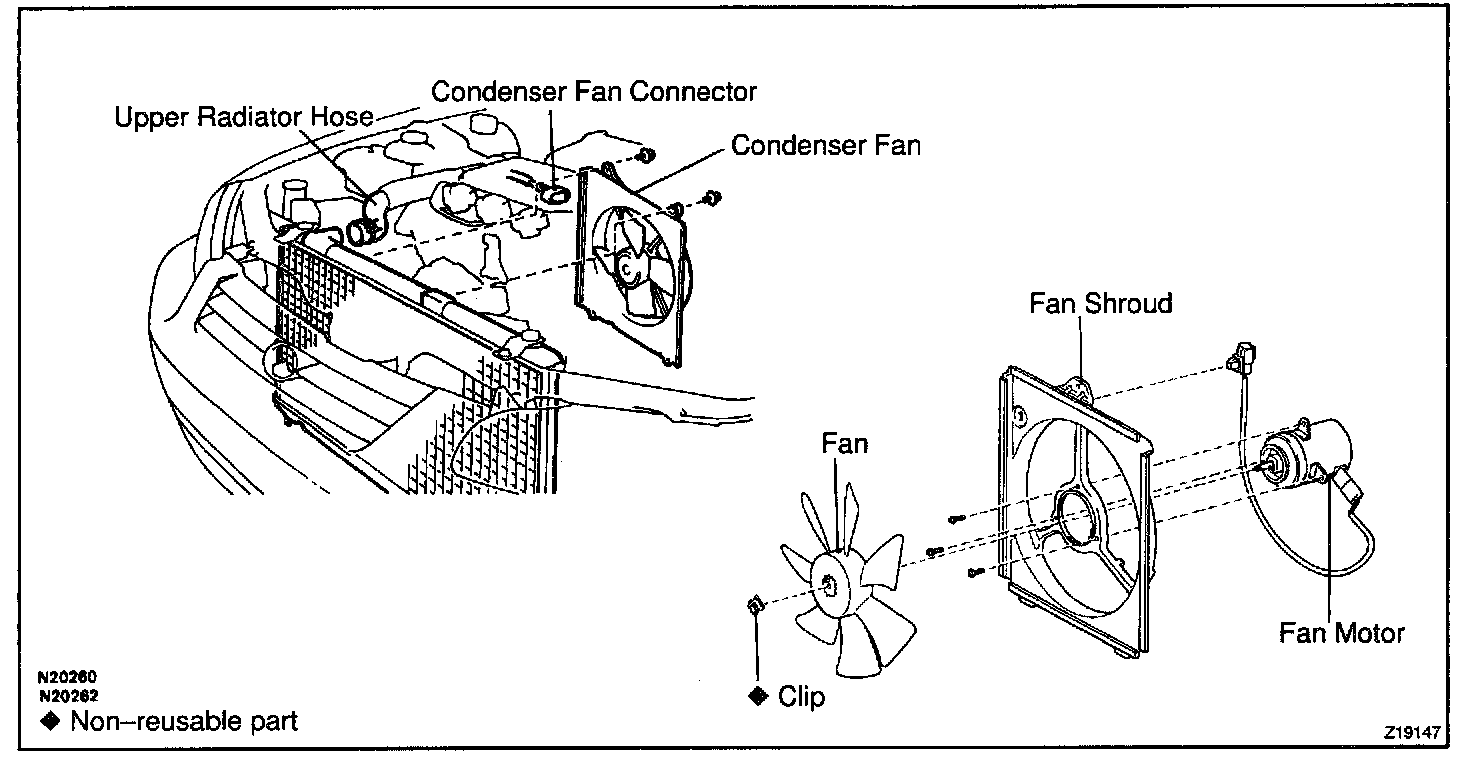

3. REMOVE CONDENSER FAN
a. Disconnect the connector.
b. Remove the 4 bolts and fan.

INSTALLATION
Installation is in the reverse order of removal.
