Radiator Cooling Fan Motor

ELECTRIC COOLING FAN REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS

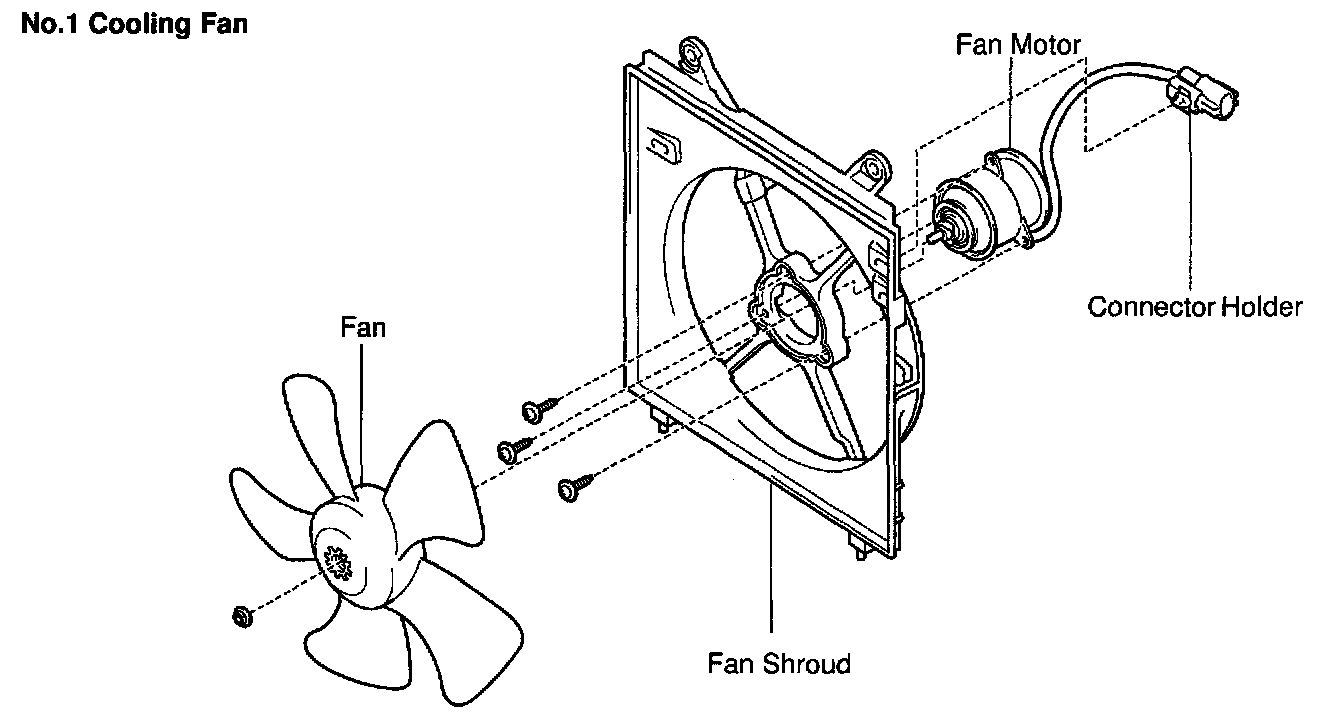

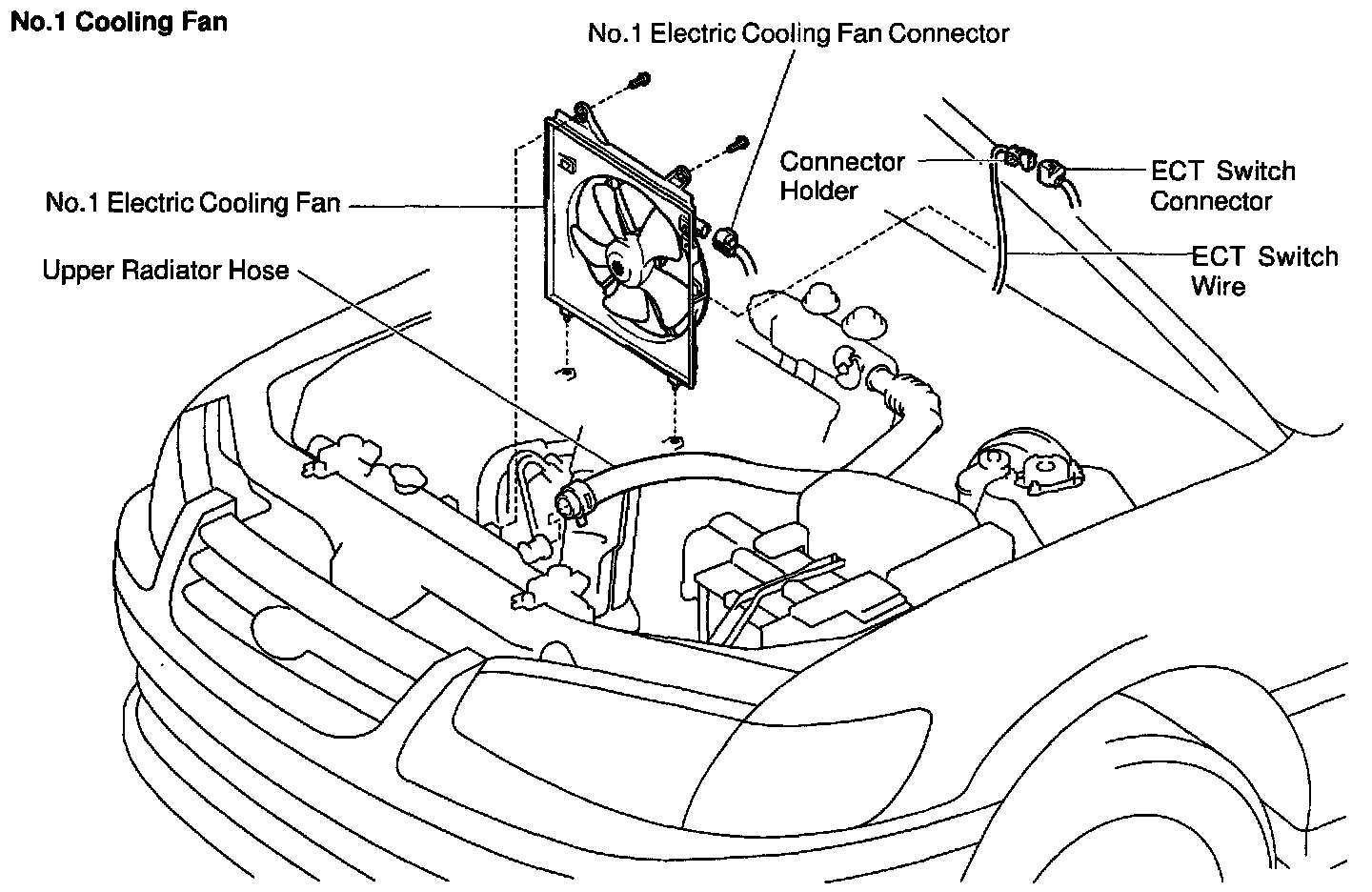

No.1 Cooling Fan





Part 1 of 2





Part 2 of 2

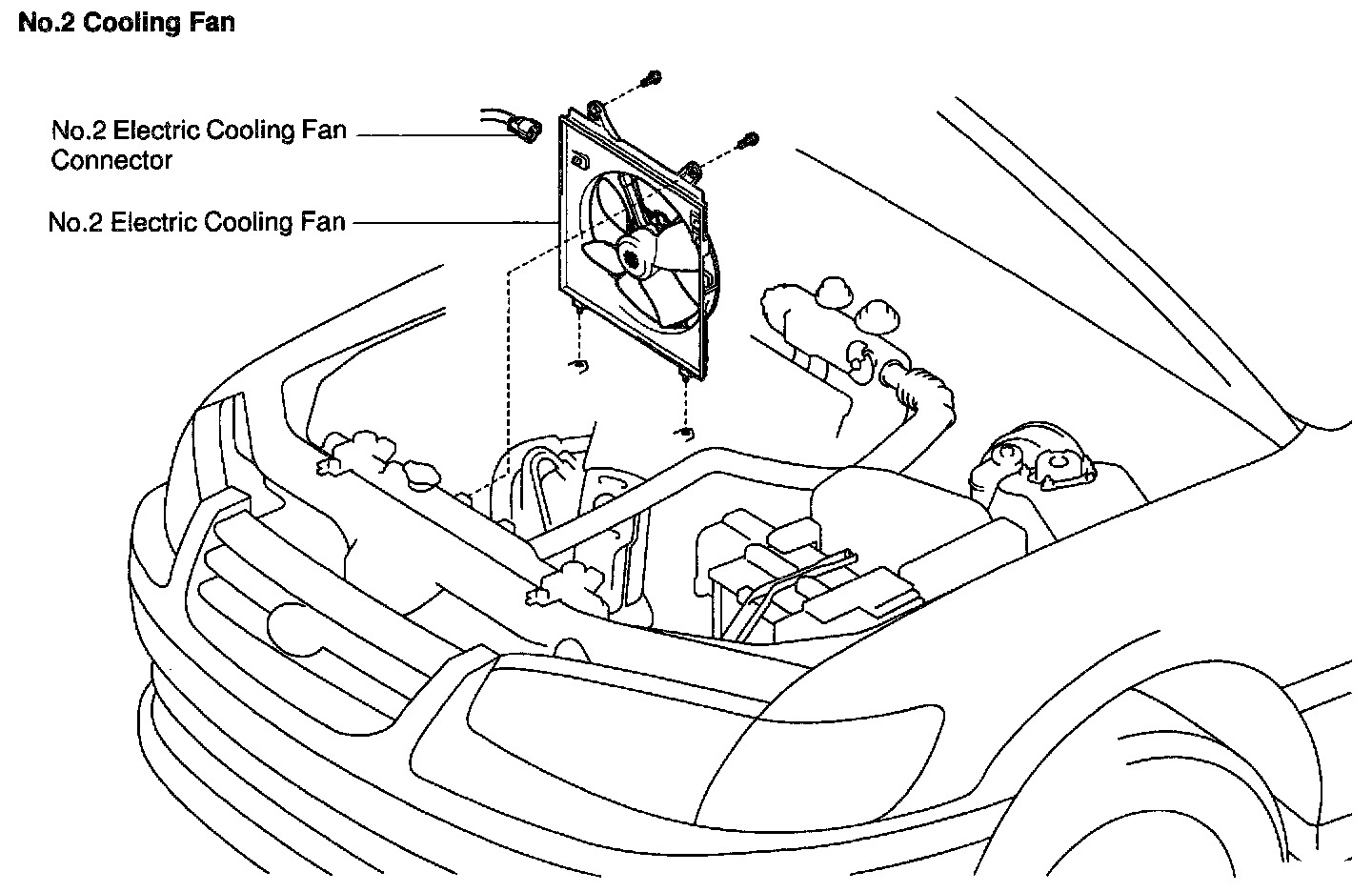

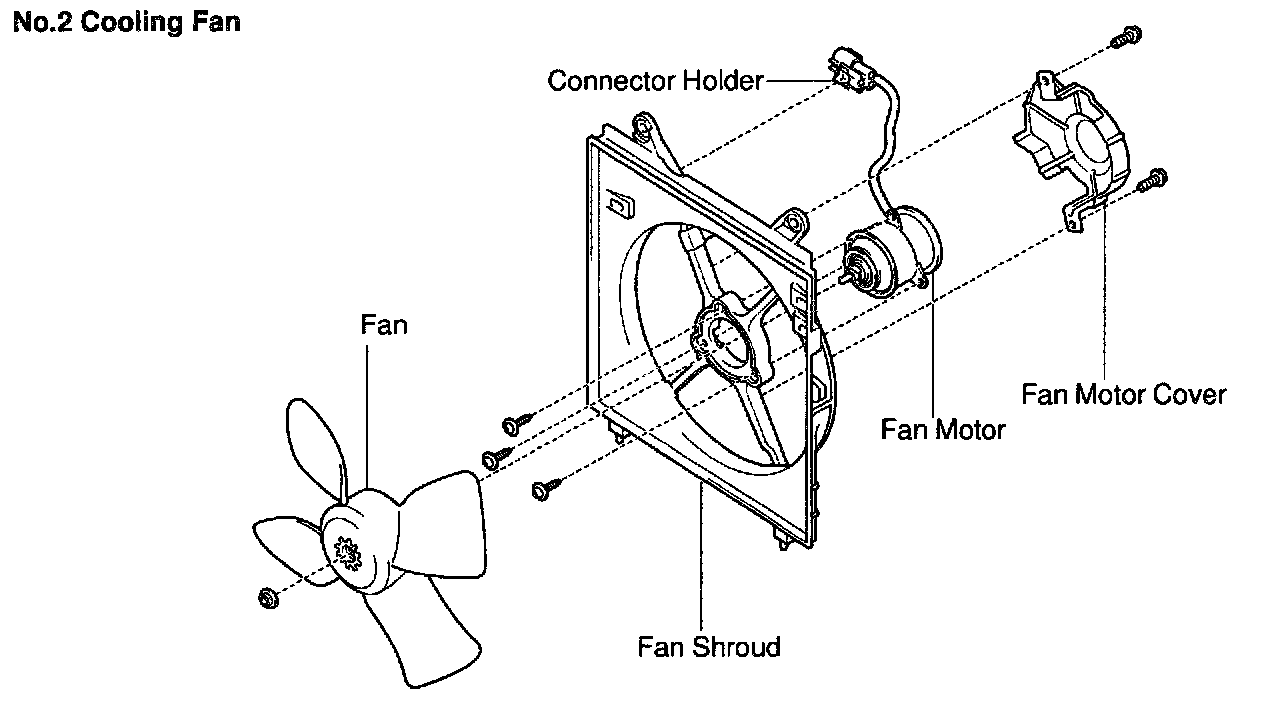

No.2 Cooling Fan





Part 1 of 2





Part 2 of 2
