P0500 - P1780 (A140E) Transaxle:

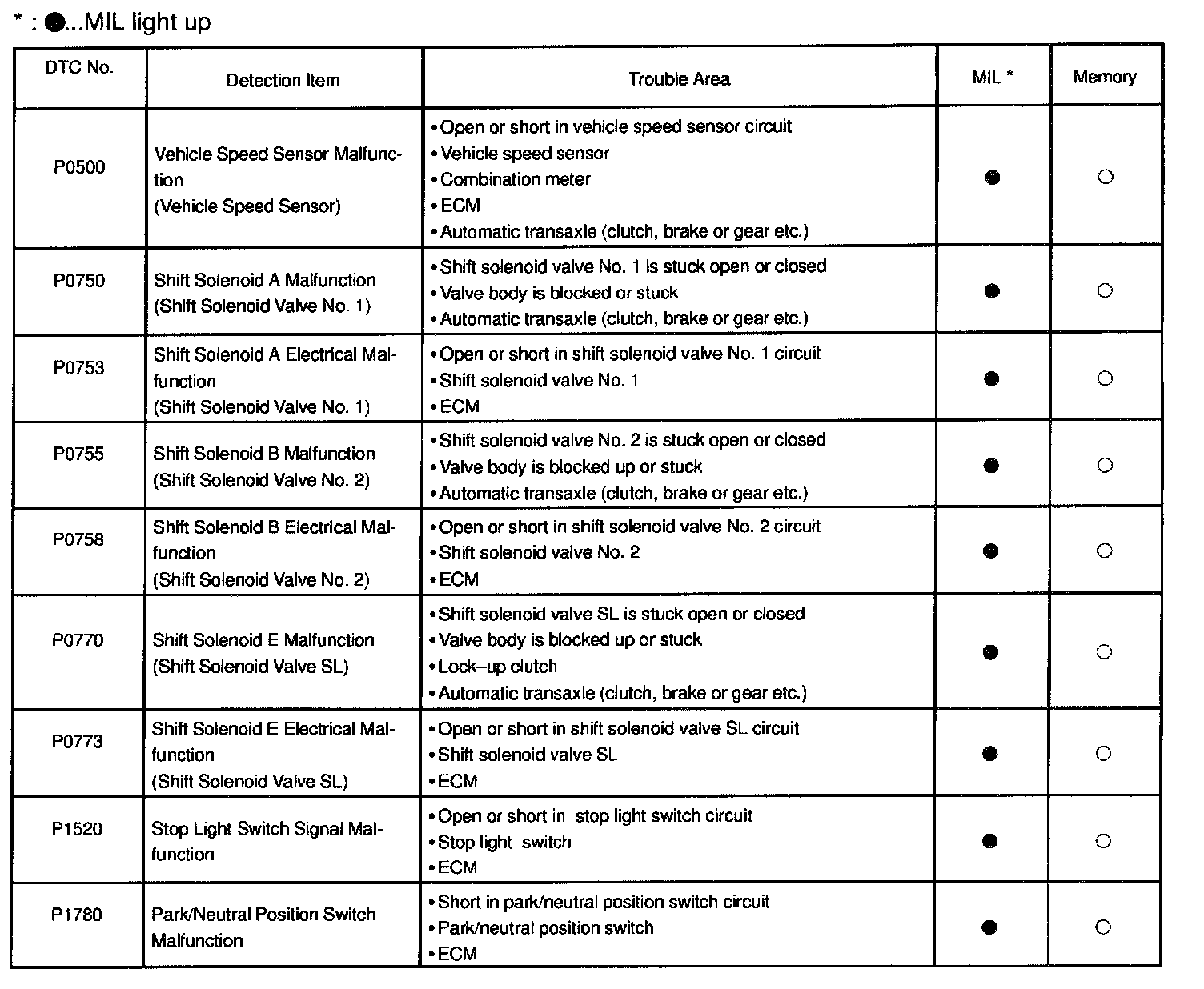

DIAGNOSTIC TROUBLE CODE CHART
If a DTC is displayed during the DTC check, check the circuit listed in the table and proceed.
