Tightening Specifications





MANUAL TRANSAXLE UNIT

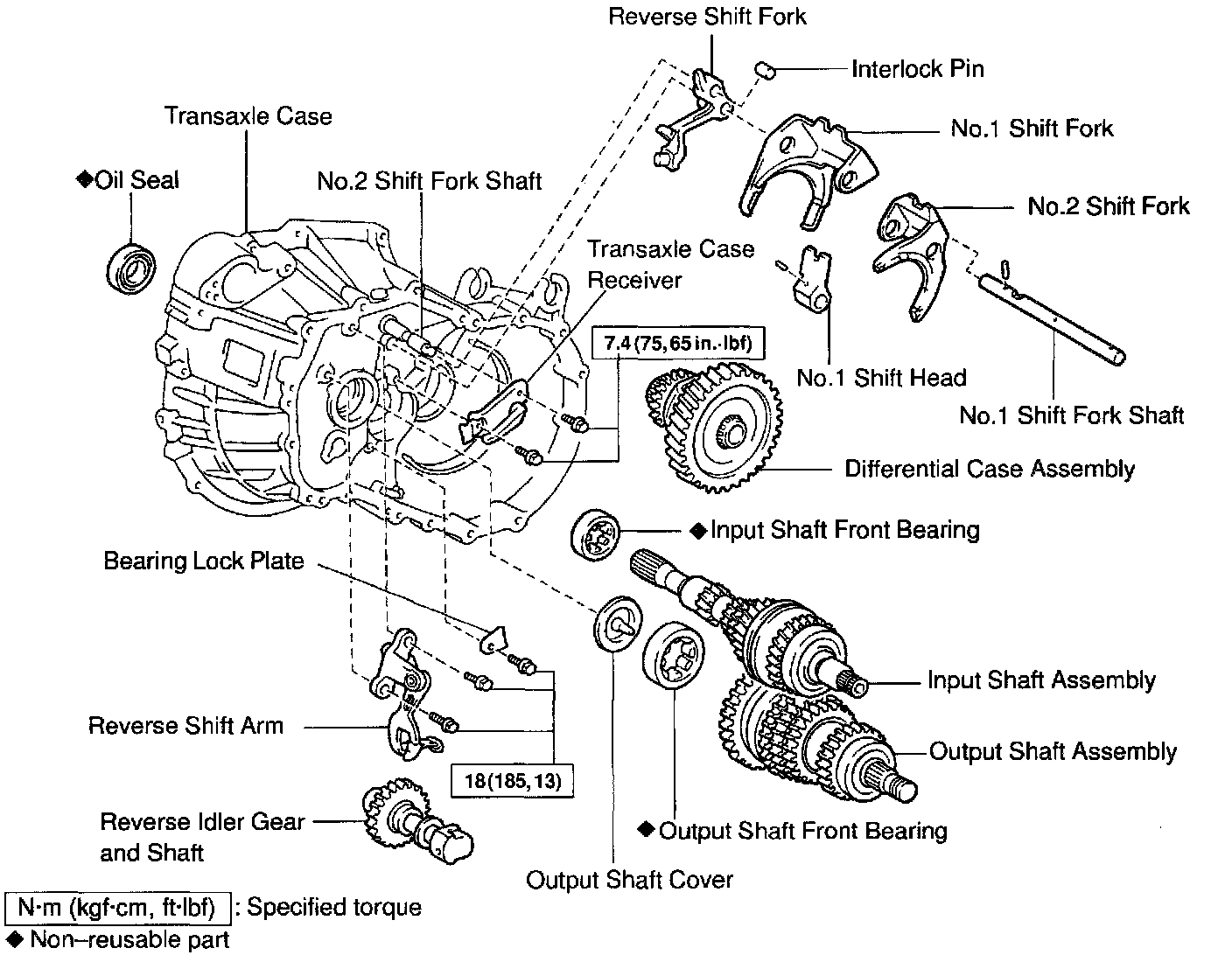

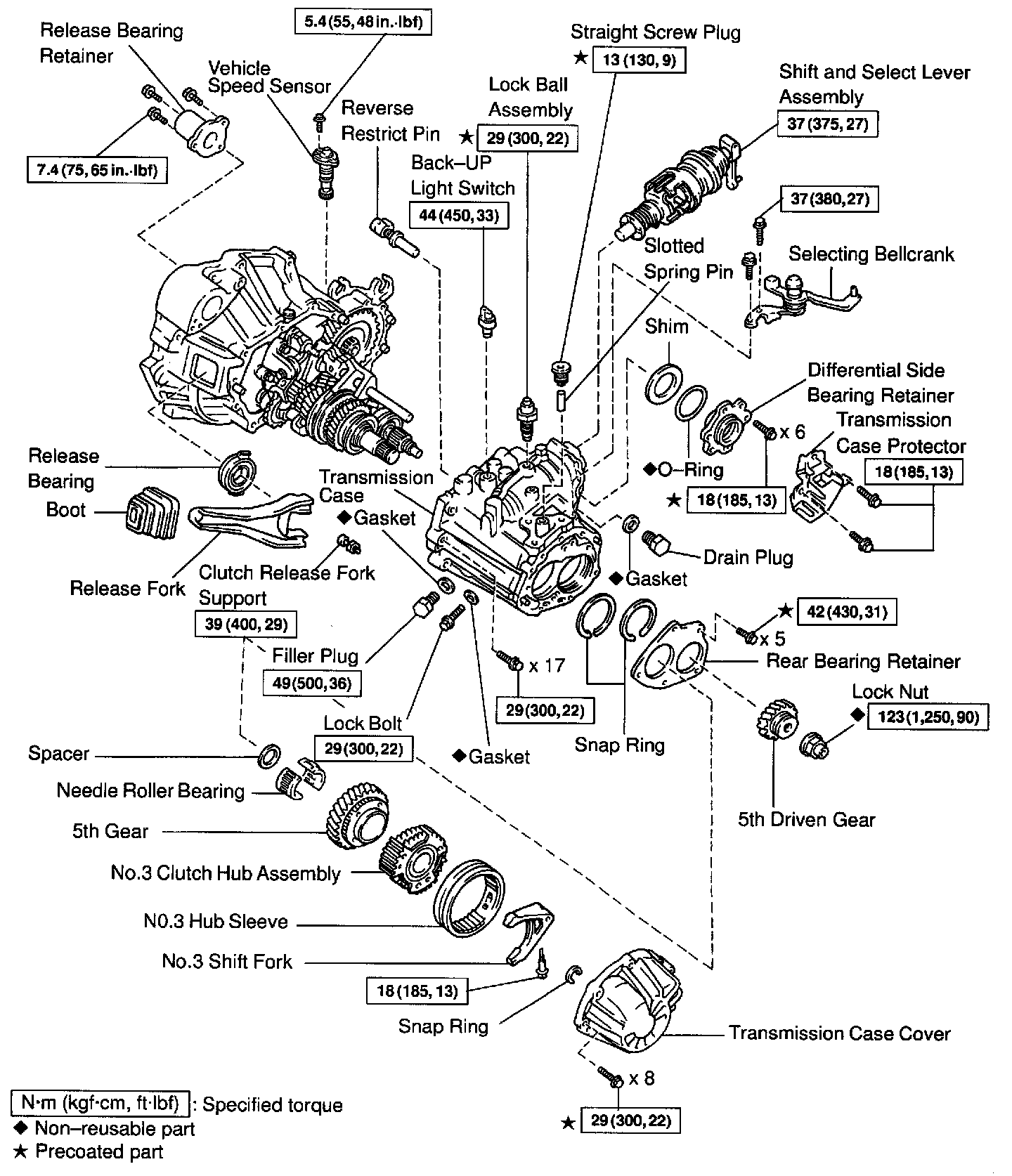

MANUAL TRANSAXLE ASSEMBLY





Part 1 of 2





Part 2 of 2

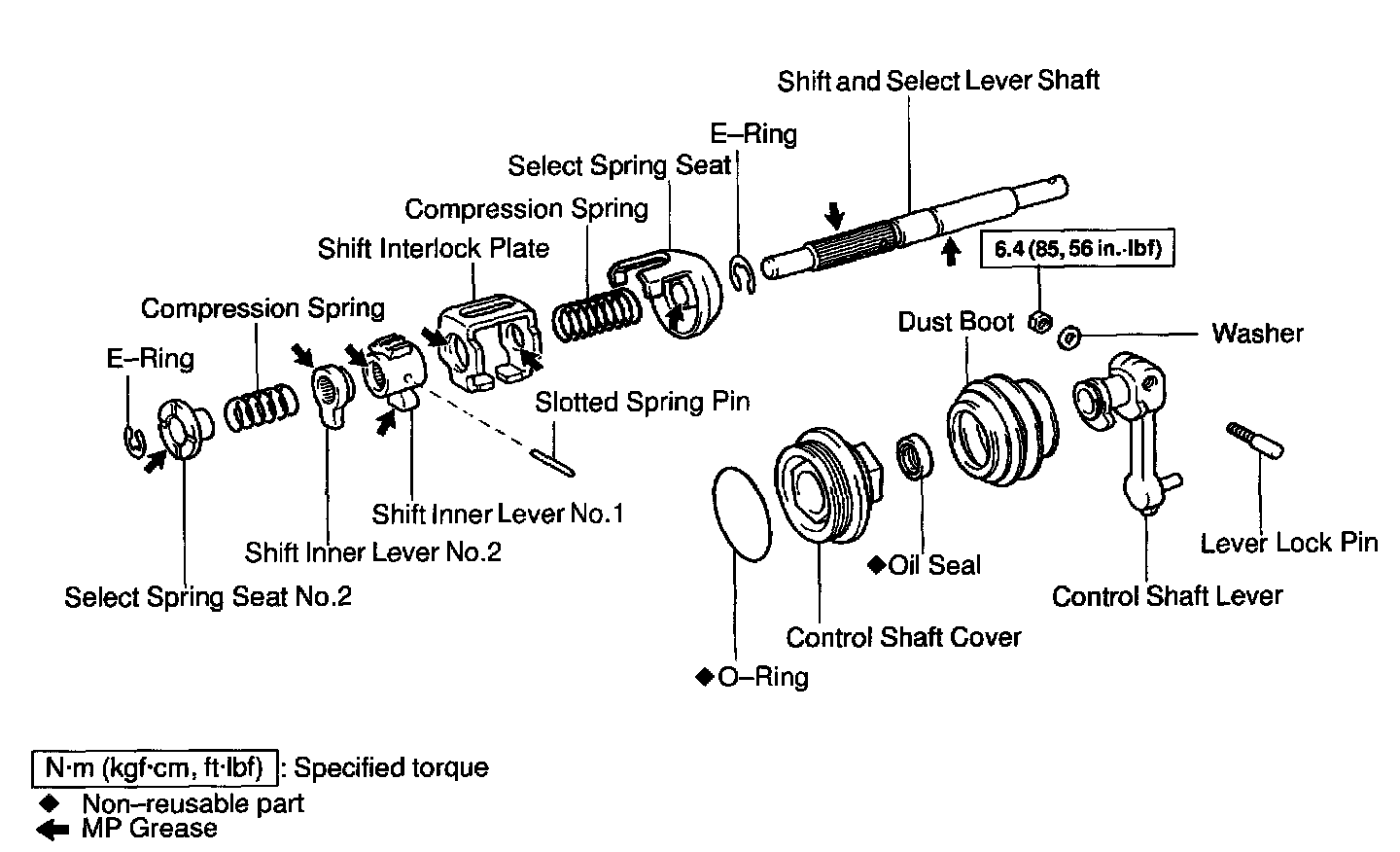

SHIFT AND SELECT LEVER SHAFT





DIFFERENTIAL CASE





SHIFT LEVER AND CONTROL CABLE
