Ignition Coil: Service and Repair

Ignition Coil:

REPLACEMENT

1. DISCONNECT THROTTLE BODY FROM INTAKE MANIFOLD

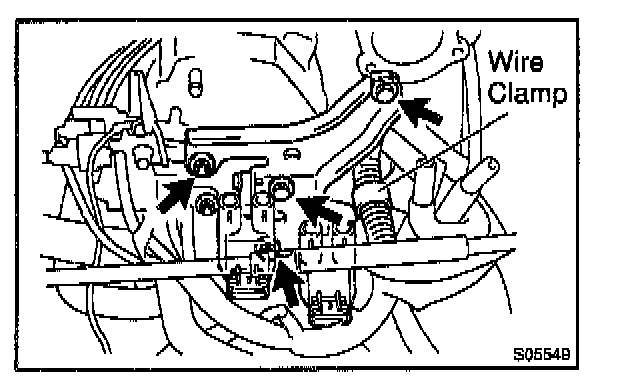

2. REMOVE IGNITION COILS AND NO.2 INTAKE MANIFOLD STAY ASSEMBLY




a. Disconnect the 2 ignition coil connectors.
b. Disconnect the wire clamp from the manifold stay.
c. TMC Made: Remove the 2 nuts, 2 bolts, 2 ignition coils and manifold stay assembly.

d. TMMK Made: Remove the nut, 3 bolts, 2 ignition coils and manifold stay assembly.

3. REMOVE IGNITION COILS FROM NO.2 INTAKE MANIFOLD STAY
Remove the 2 bolts and ignition coil. Remove the 2 ignition coils.




4. REINSTALL IGNITION COILS TO NO.2 INTAKE MANIFOLD STAY
Install the ignition coil with the 2 bolts. Install the 2 ignition coils.

Torque: 9.8 N.m (100 kgf.cm, 87 in.lbf)

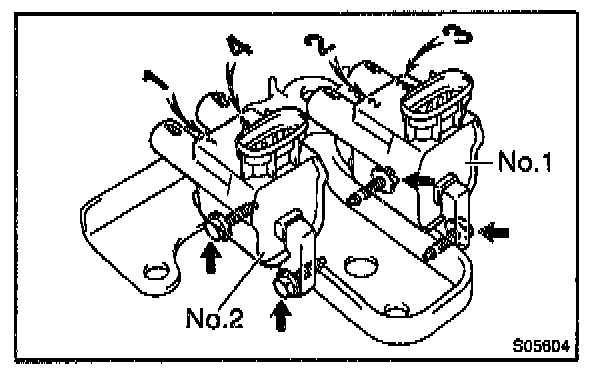

NOTE: The installation positions of the ignition coils are different for No.1 and No.2.

5. REINSTALL IGNITION COILS AND NO.2 INTAKE MANIFOLD STAY ASSEMBLY
a. TMC Made: Install the 2 ignition coils and manifold stay assembly with the 2 nuts and 2 bolts.
b. TMMK Made: Install the 2 ignition coils and manifold stay assembly with the nut and 3 bolts.

Torque:
21 N.m (214 kgf.cm, 15 ft.lbf) for 12 mm head
42 N.m (428 kgf.cm, 31 ft.lbf) for 14 mm head

c. Install the wire clamp to the manifold stay.
d. Connect the 2 ignition coil connectors.


6. REINSTALL THROTTLE BODY.
