With ABS W/EBD System
With ABS W/EBD System

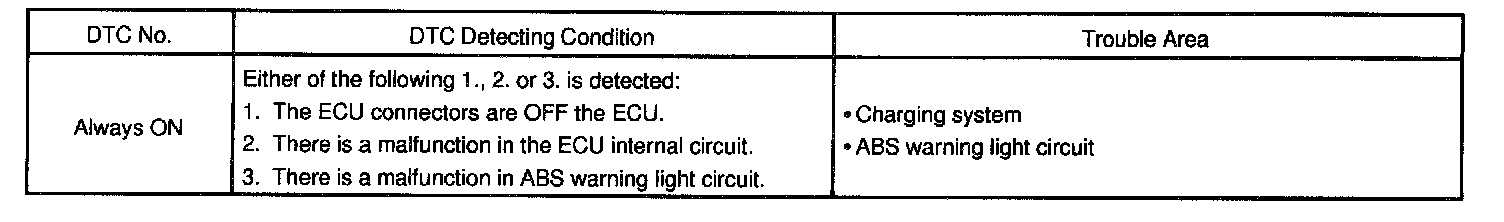

DTC Detecting Condition:
CIRCUIT DESCRIPTION

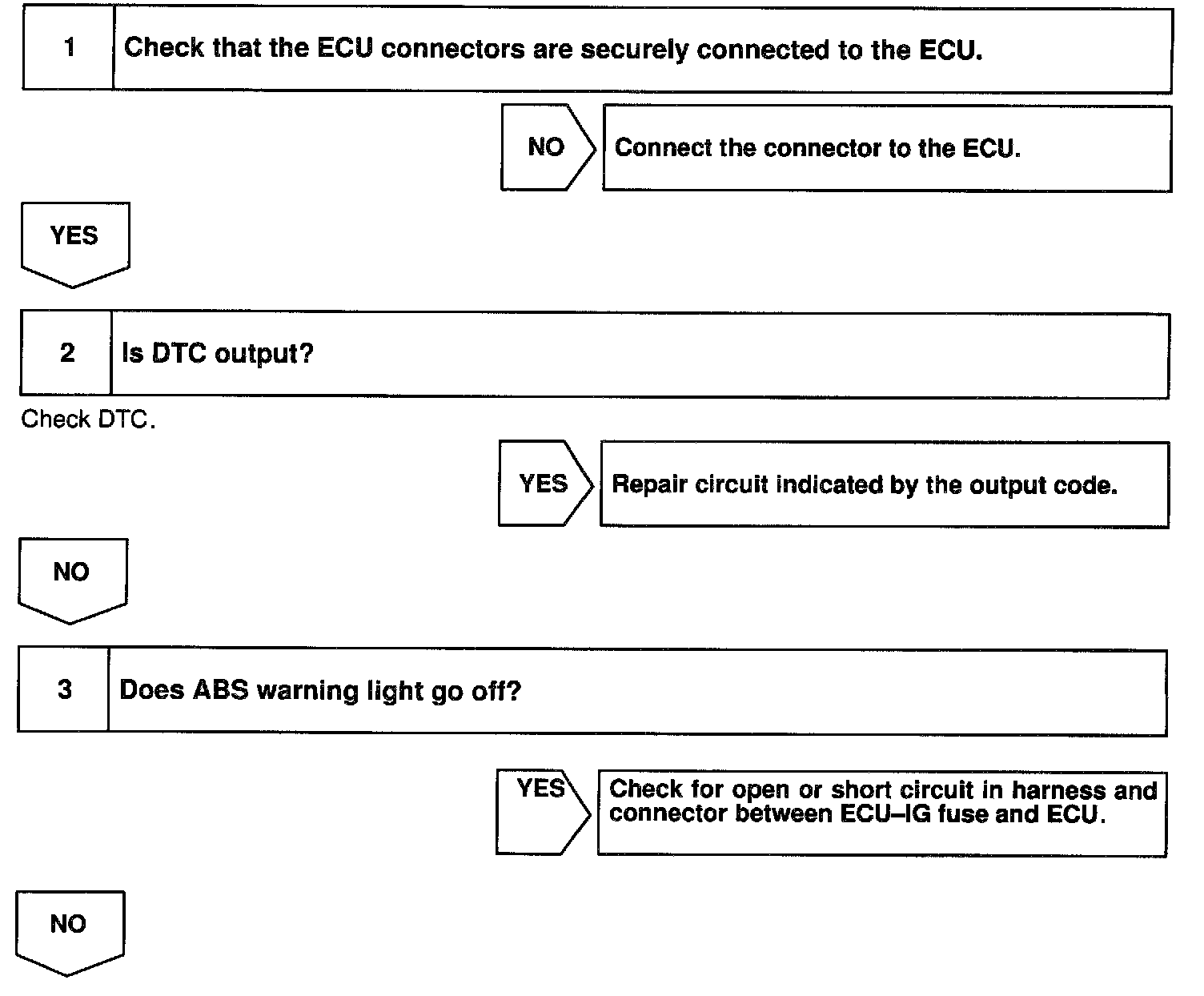

Steps 1 - 3:

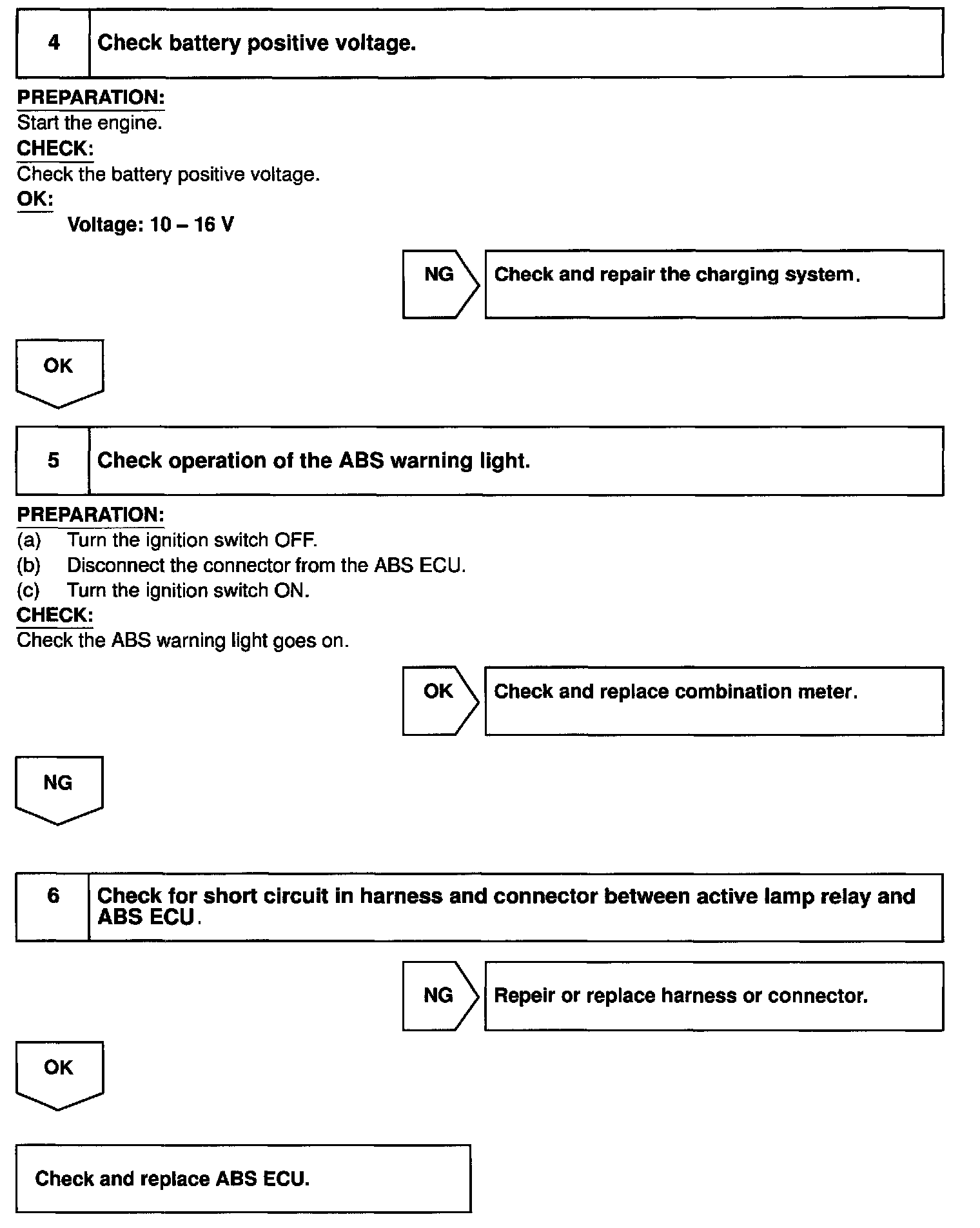

Steps 4 - 6:
INSPECTION PROCEDURE
