Light Control Switch Circuit
Light Control Switch Circuit

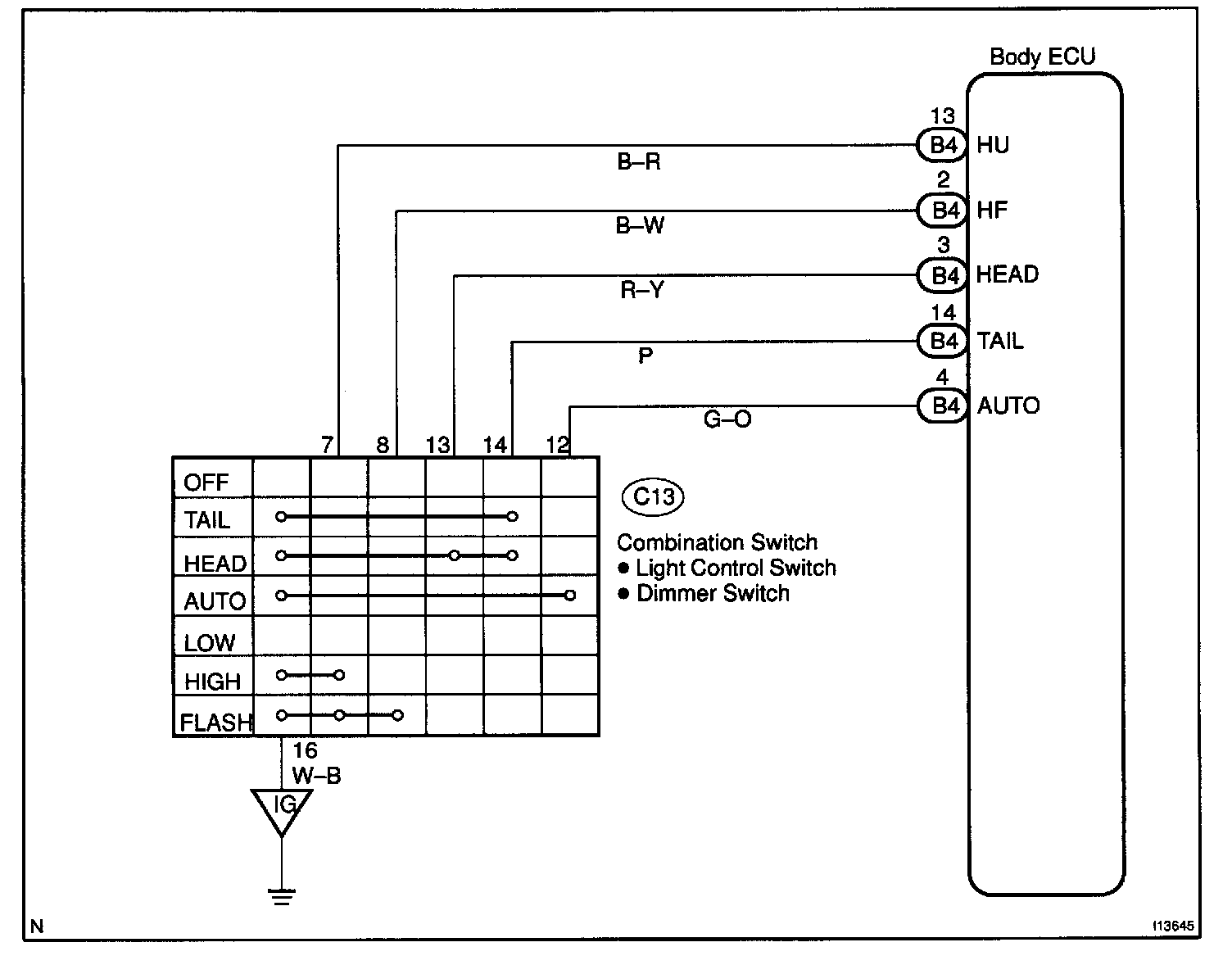

Wiring Diagram:
Steps 1 - 2:
INSPECTION PROCEDURE
