Speedometer Gear, A/T: Service and Repair

REMOVAL

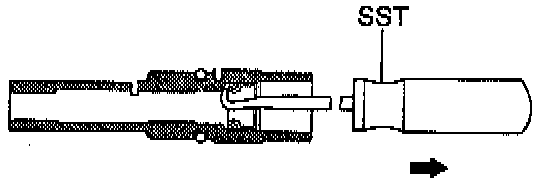

1. Remove speedometer driven gear oil seal. Using Special Service Tool (SST) 09921-00010 or equivalent, pull out the oil seal.

INSTALLATION





1. Install speedometer driven gear oil seal using SST 09201-10000 (09201-01080) or equivalents.
Drive in depth: 19 mm (0.75 inch).
