Automatic Transmission/Transaxle: Locations

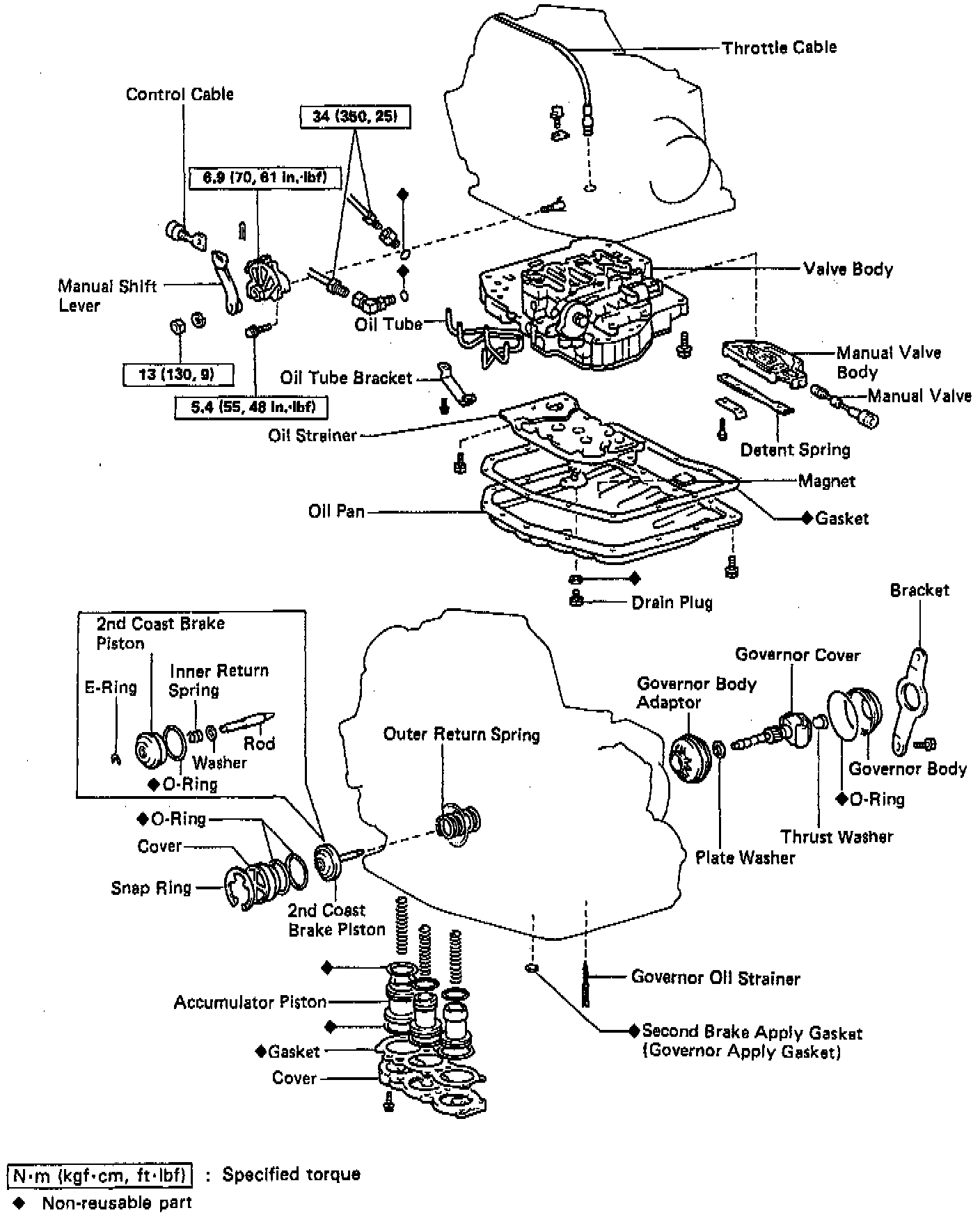

Governor, Park/Neutral Position Switch, Second Coast Brake Piston

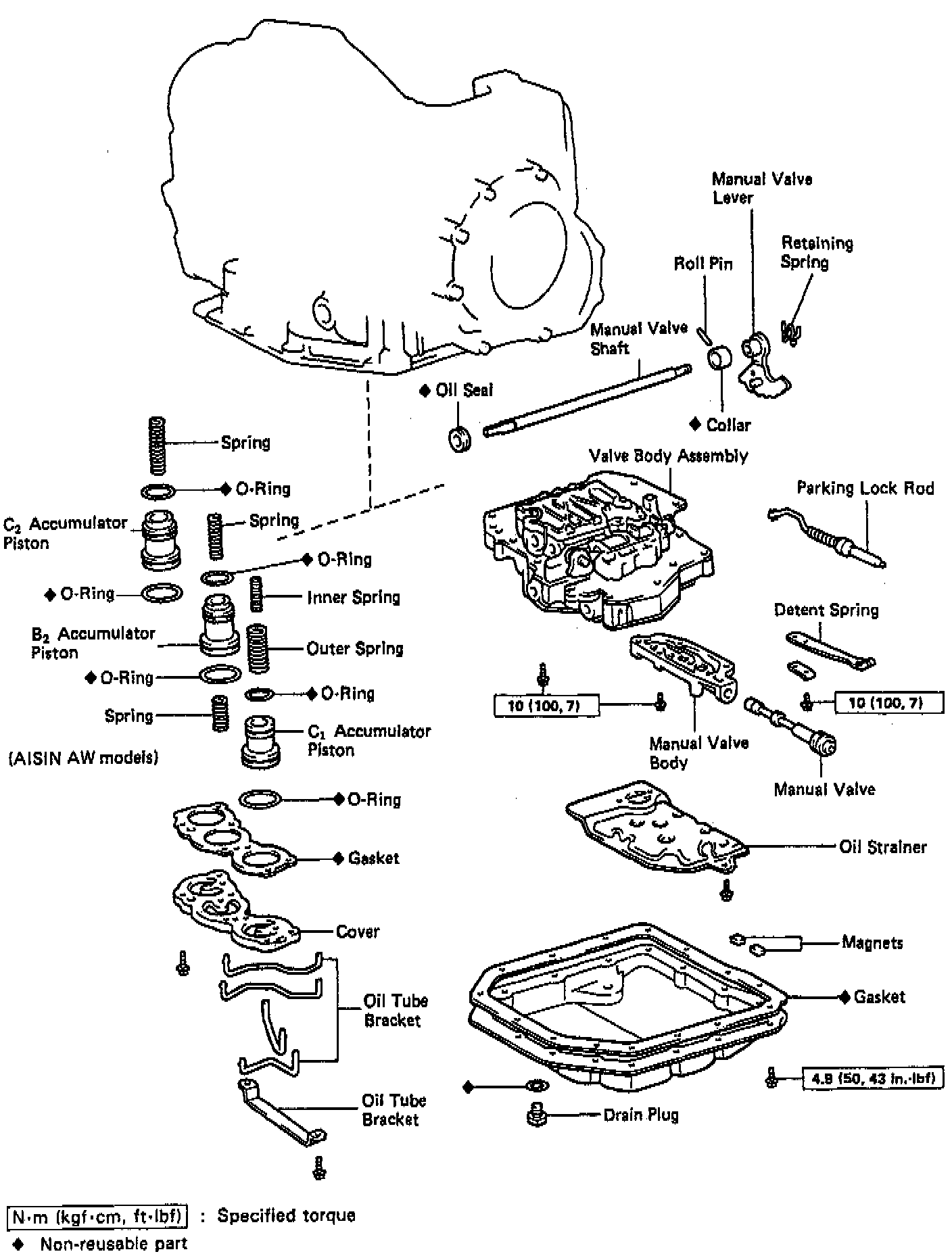

Valve Body, Accumulators

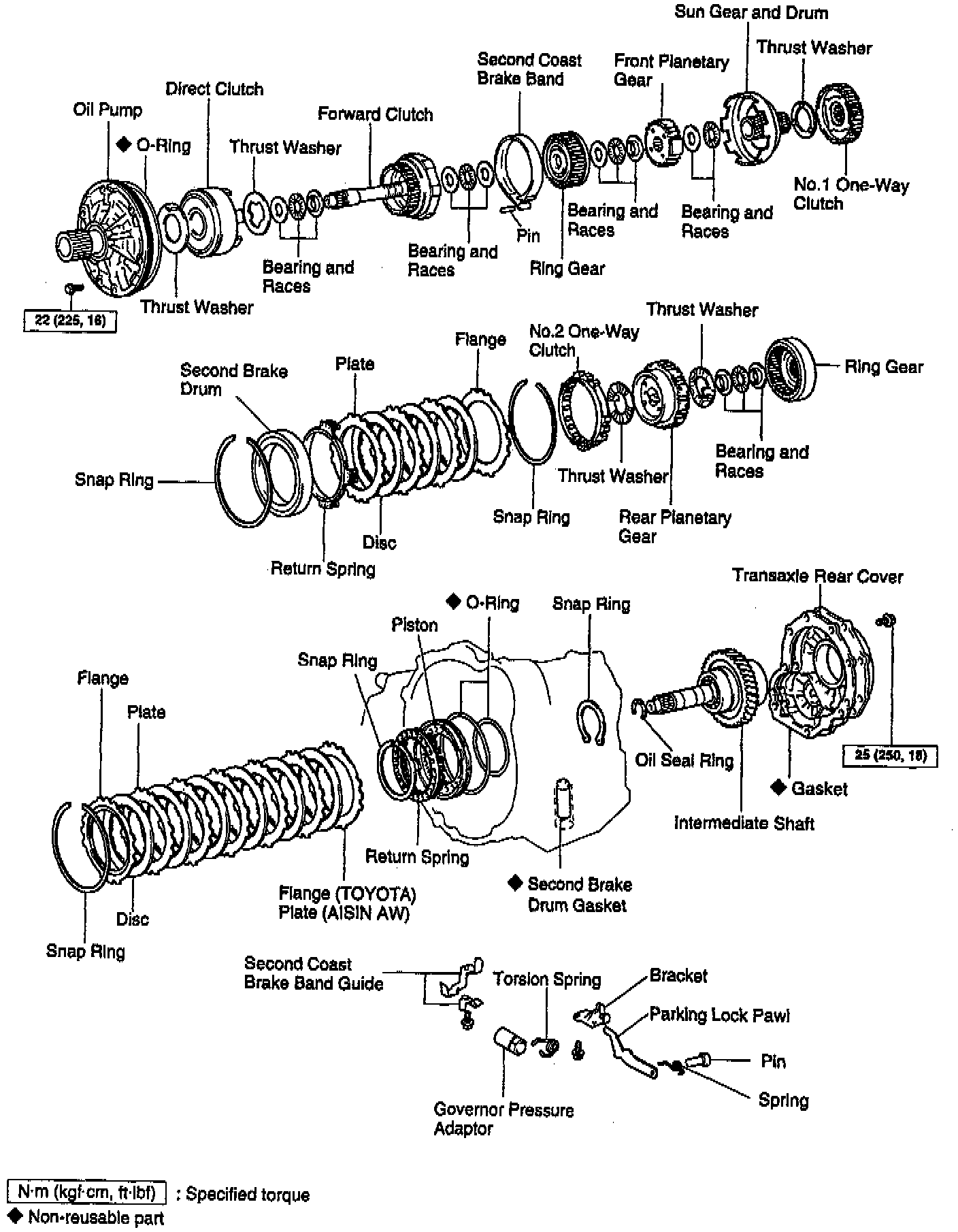

Clutches, Brakes, Oil Pump

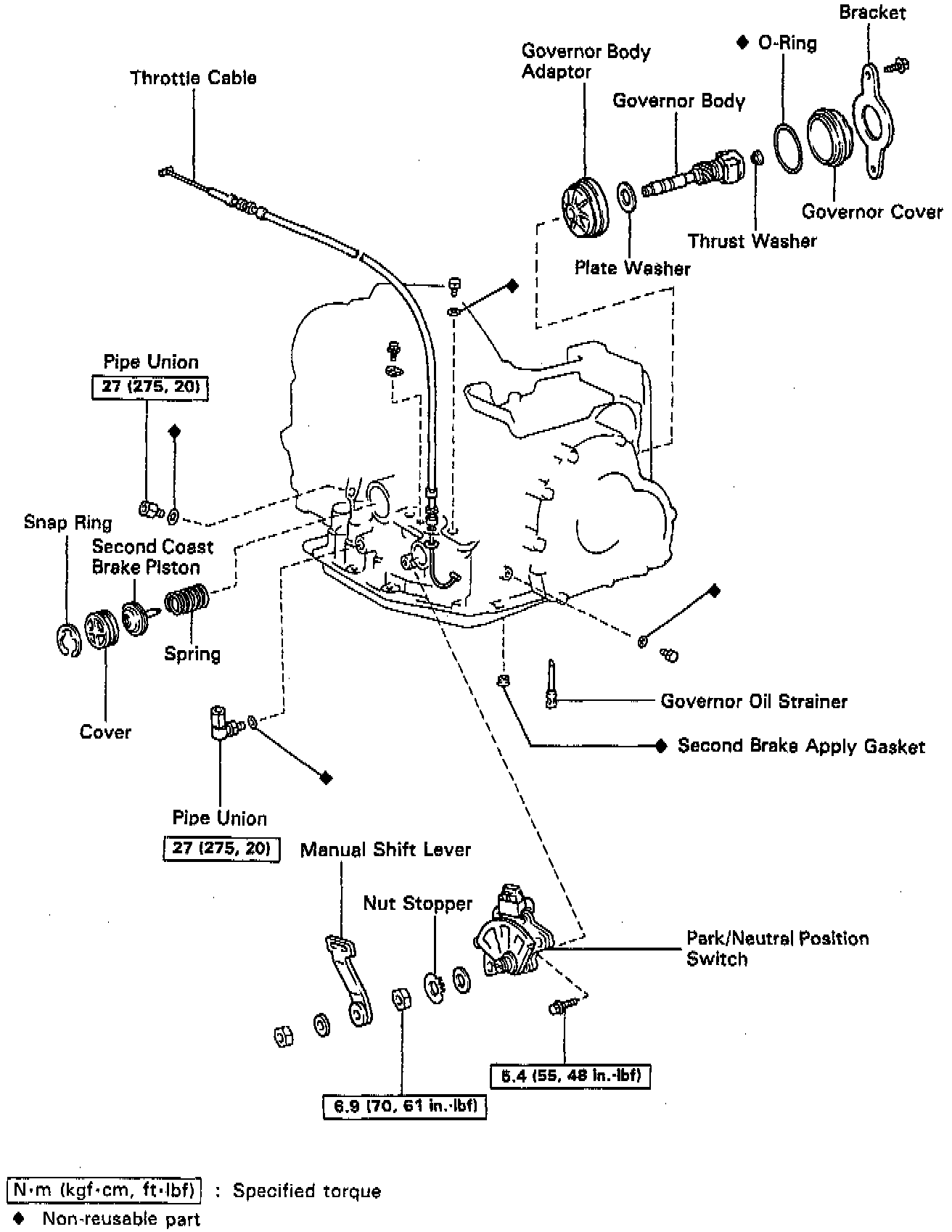

Governor, Park/Neutral Position Switch, Second Coast Brake Piston, Valve Body, Accumulators, Throttle Cable

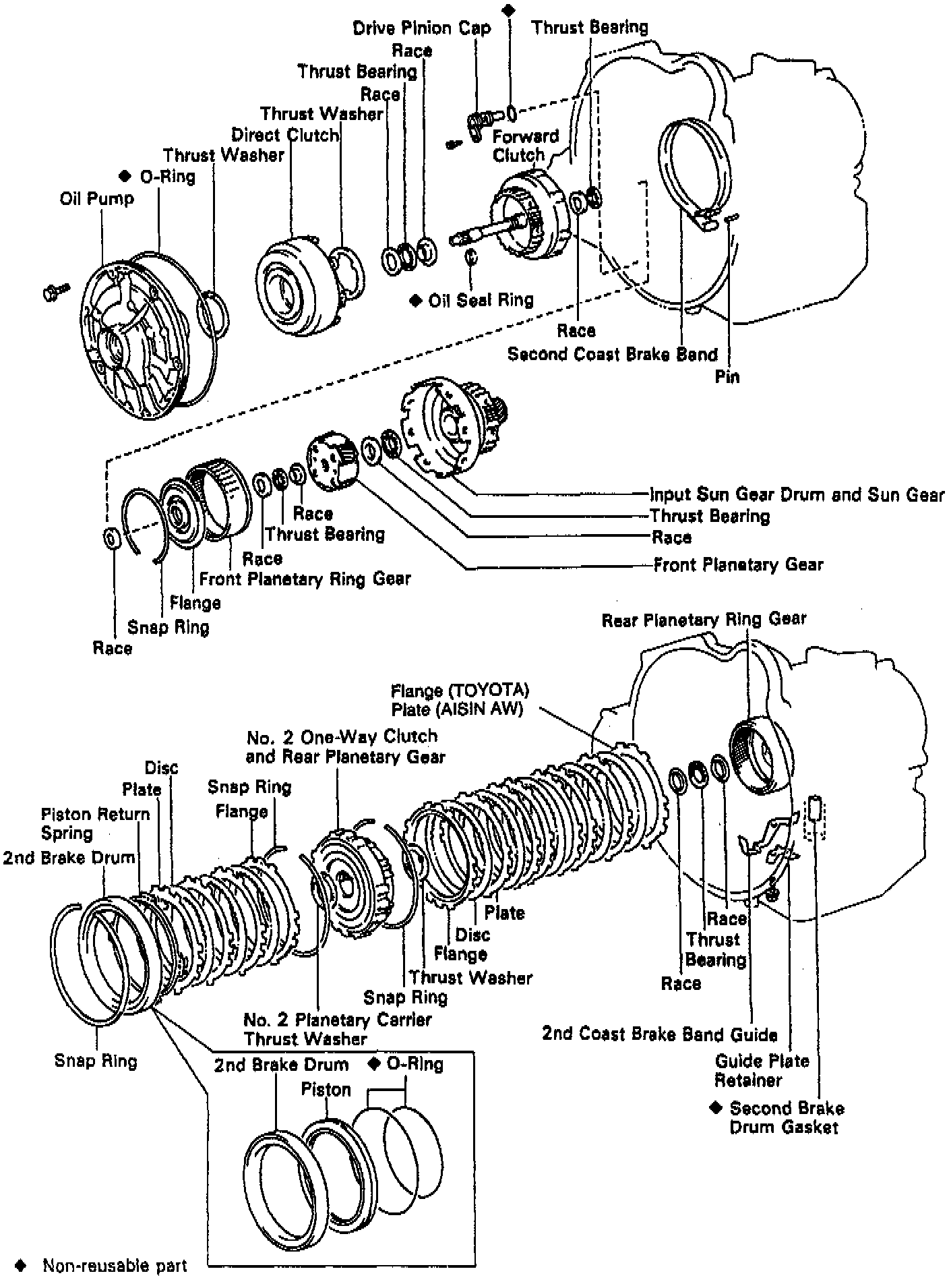

Bearings and Races, O-rings and Seals

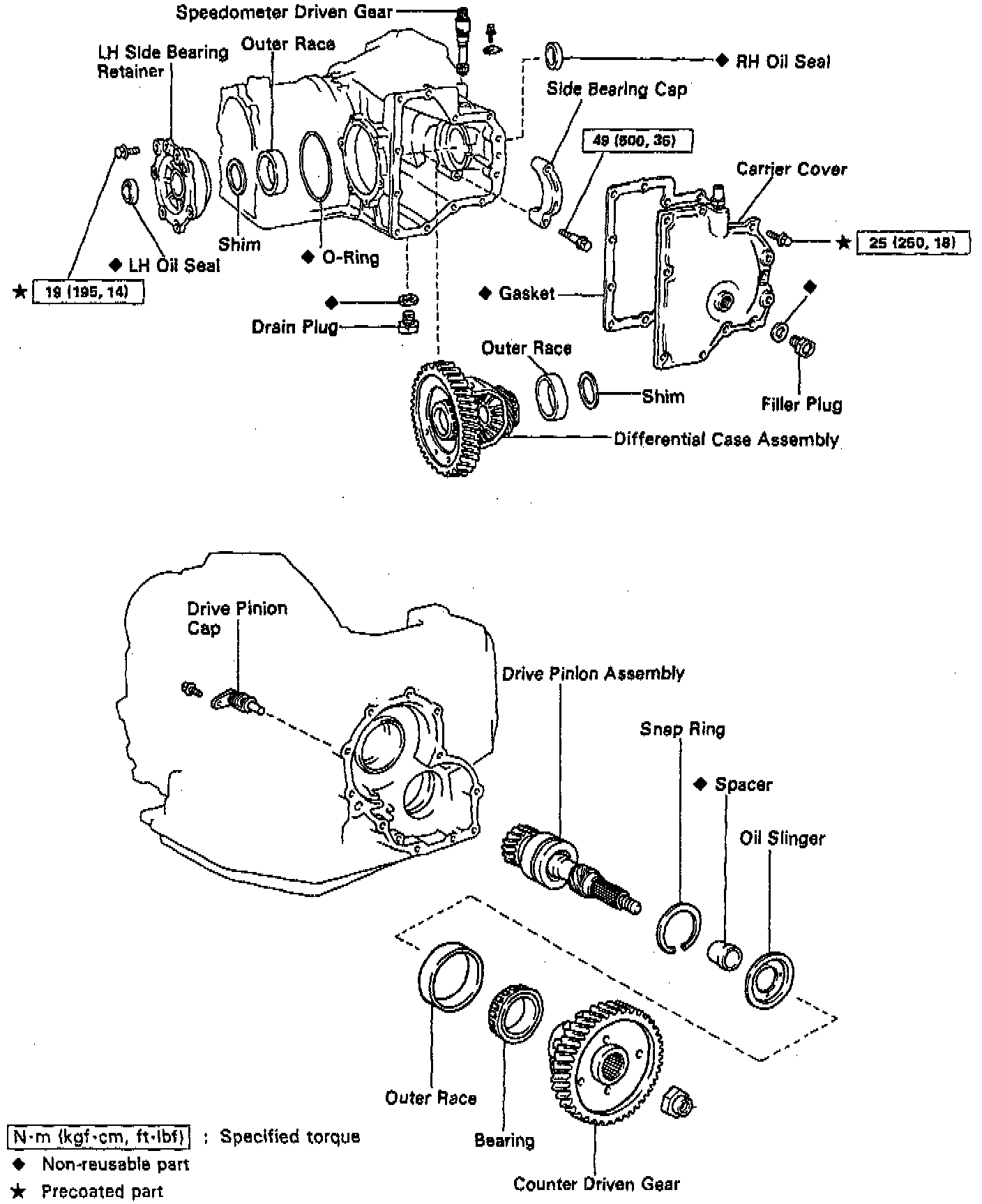

Final Drive

Parking Lock Components, Intermediate Shaft

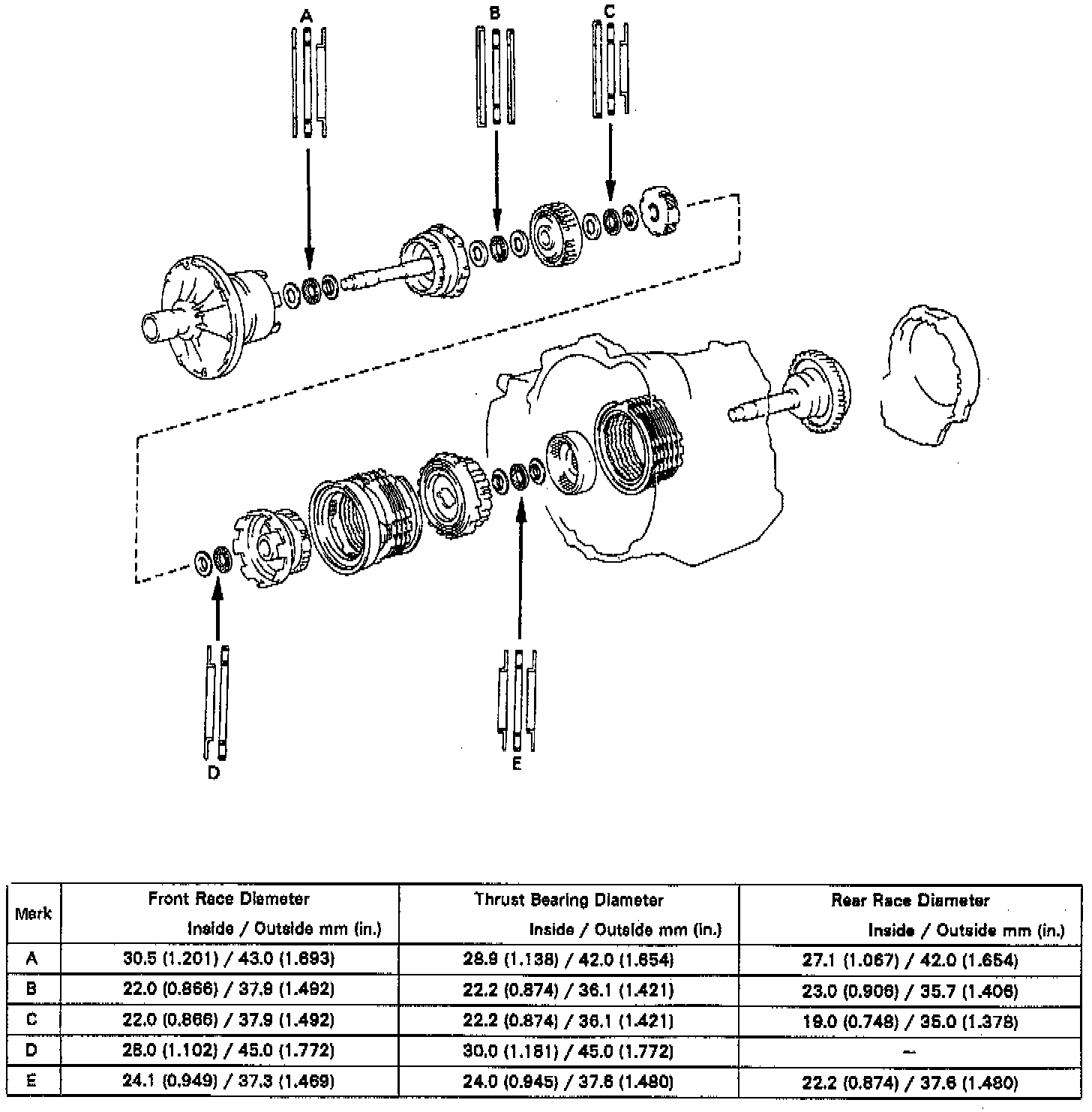

Thrust Bearing and Race Installation Direction
