Governor: Service and Repair

ON-VEHICLE REPAIR
1. REMOVE TRANSAXLE DUST COVER
2. DISCONNECT LH DRIVE SHAFT

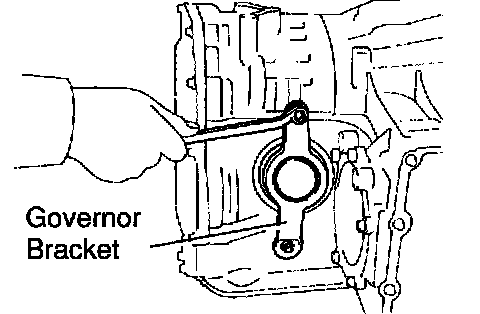

3. REMOVE GOVERNOR BRACKET

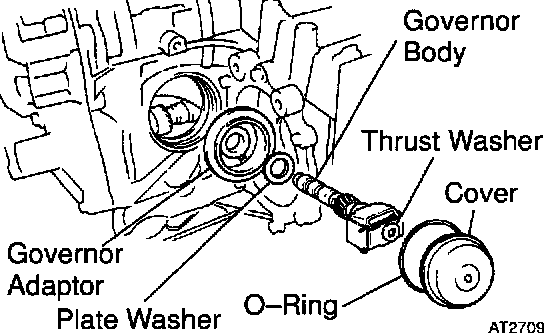

4. REMOVE GOVERNOR COVER WITH O-RING
5. REMOVE GOVERNOR BODY WITH THRUST WASHER
6. REMOVE PLATE WASHER
7. REMOVE GOVERNOR BODY ADAPTOR
8. INSTALL GOVERNOR BODY ADAPTOR
9. INSTALL PLATE WASHER
10. INSTALL GOVERNOR BODY WITH THRUST WASHER
11. INSTALL GOVERNOR COVER WITH O-RING

HINT: Replace the used O-ring with a new one.

12. INSTALL GOVERNOR BRACKET
13. CONNECT LH DRIVE SHAFT
14. INSTALL TRANSAXLE DUST COVER
