Removal and Installation

REMOVAL

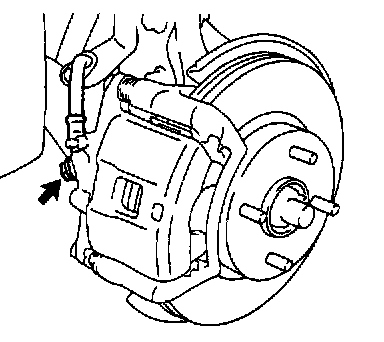

1. DISCONNECT FLEXIBLE HOSE
a. Remove the union bolt and 2 gaskets from the caliper, then disconnect the flexible hose from the caliper.
Torque: 30 Nm (310 kgf-cm, 22 ft. lbs.)

HINT: At the time of installation, install the flexible hose lock securely in the lock hole in the caliper.

b. Use a container to catch the brake fluid as it drains out.
2. REMOVE CALIPER
a. Remove the 2 installation bolts.
Torque: 34 Nm (350 kgf-cm, 25 ft. lbs.)
b. Remove the caliper from the torque plate.
3. REMOVE 2 BRAKE PADS WITH 4 ANTI-SQUEAL SHIMS
4. REMOVE 2 PAD SUPPORT PLATES

INSTALLATION
Installation is in the reverse order of removal.

HINT: After installation, fill the brake reservoir with brake fluid, bleed brake system and check for leaks.
