DTC 12

DTC 12 SHORT IN SQUIB CIRCUIT (TO B +)




CIRCUIT DESCRIPTION
The D squib circuit consists of the airbag sensor assembly, spiral cable, steering wheel pad.
It causes the SRS to deploy when the SRS deployment conditions are satisfied.
For details of the function of each component, see OPERATION.

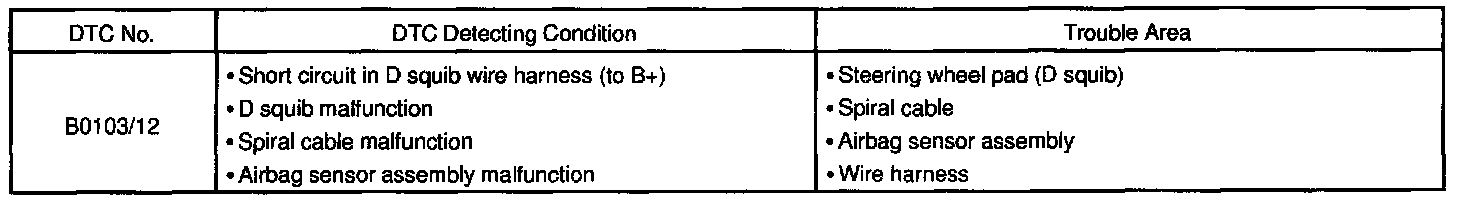

DTC B0103/12 is recorded when a B+ short is detected in the D squib circuit.

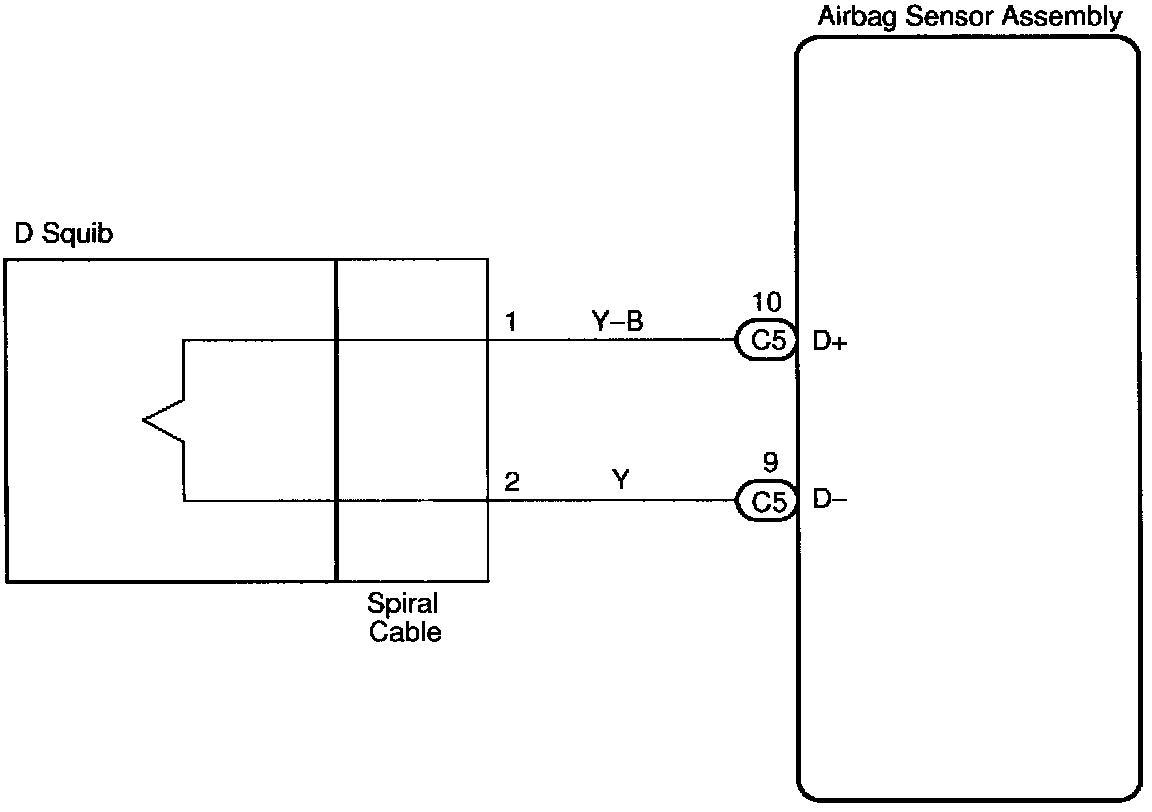

WIRING DIAGRAM

INSPECTION PROCEDURE

B0103/12 (1 Of 6):

Step 1/Prepare for Inspection

B0103/12 (2 Of 6):

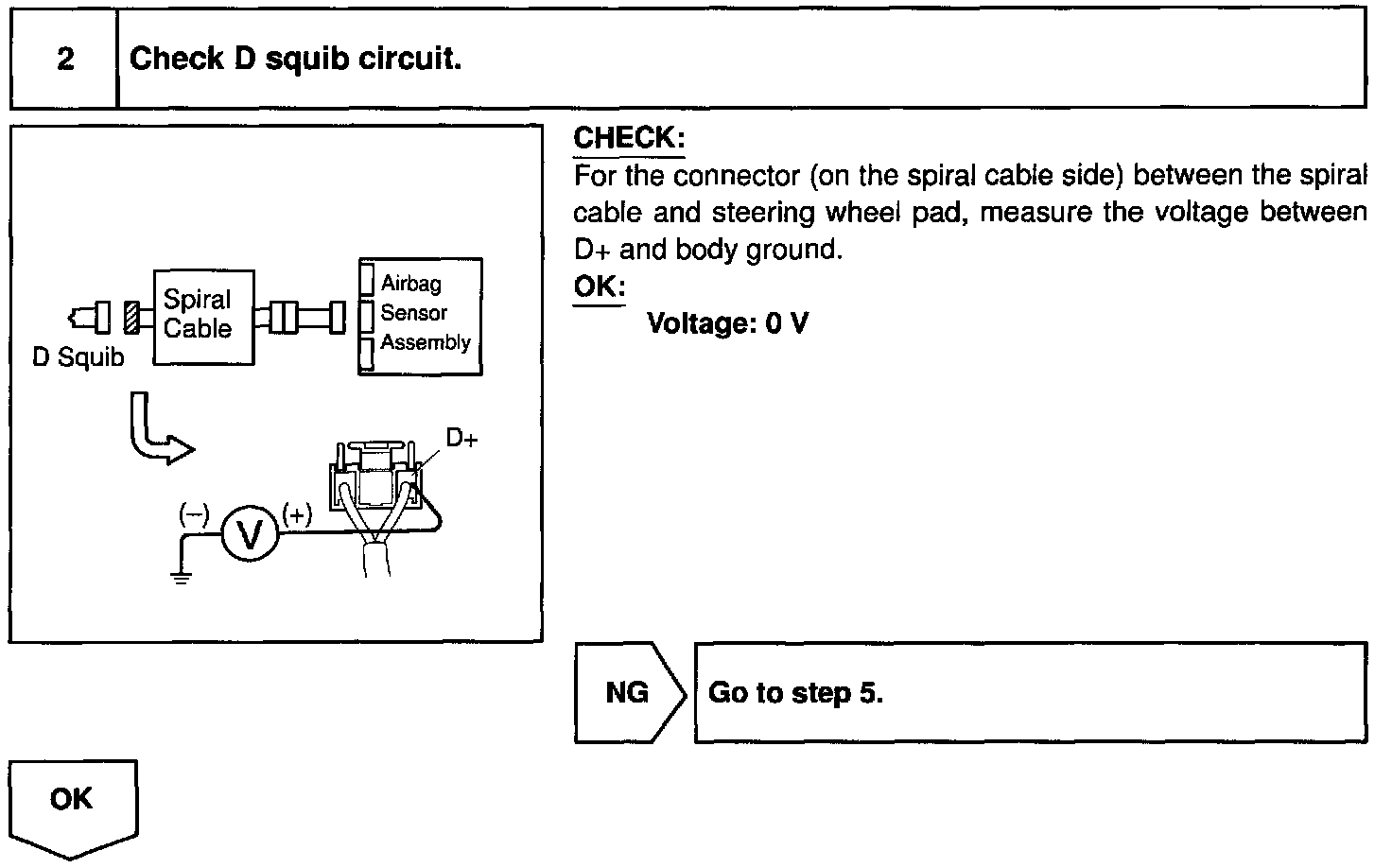

Step 2/Check D squib circuit

B0103/12 (3 Of 6):

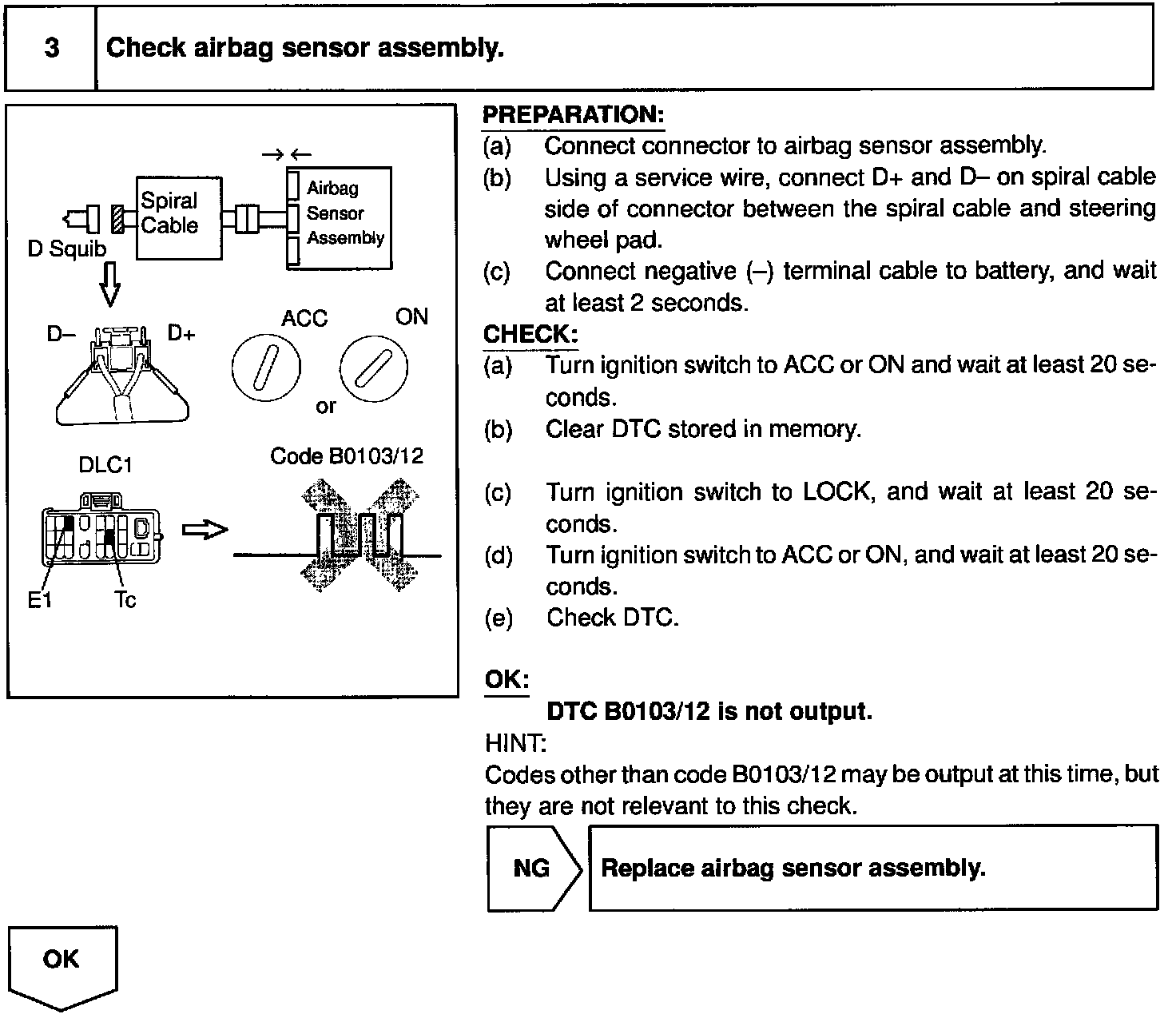

Step 3/Check airbag sensor assembly

B0103/12 (4 Of 6):

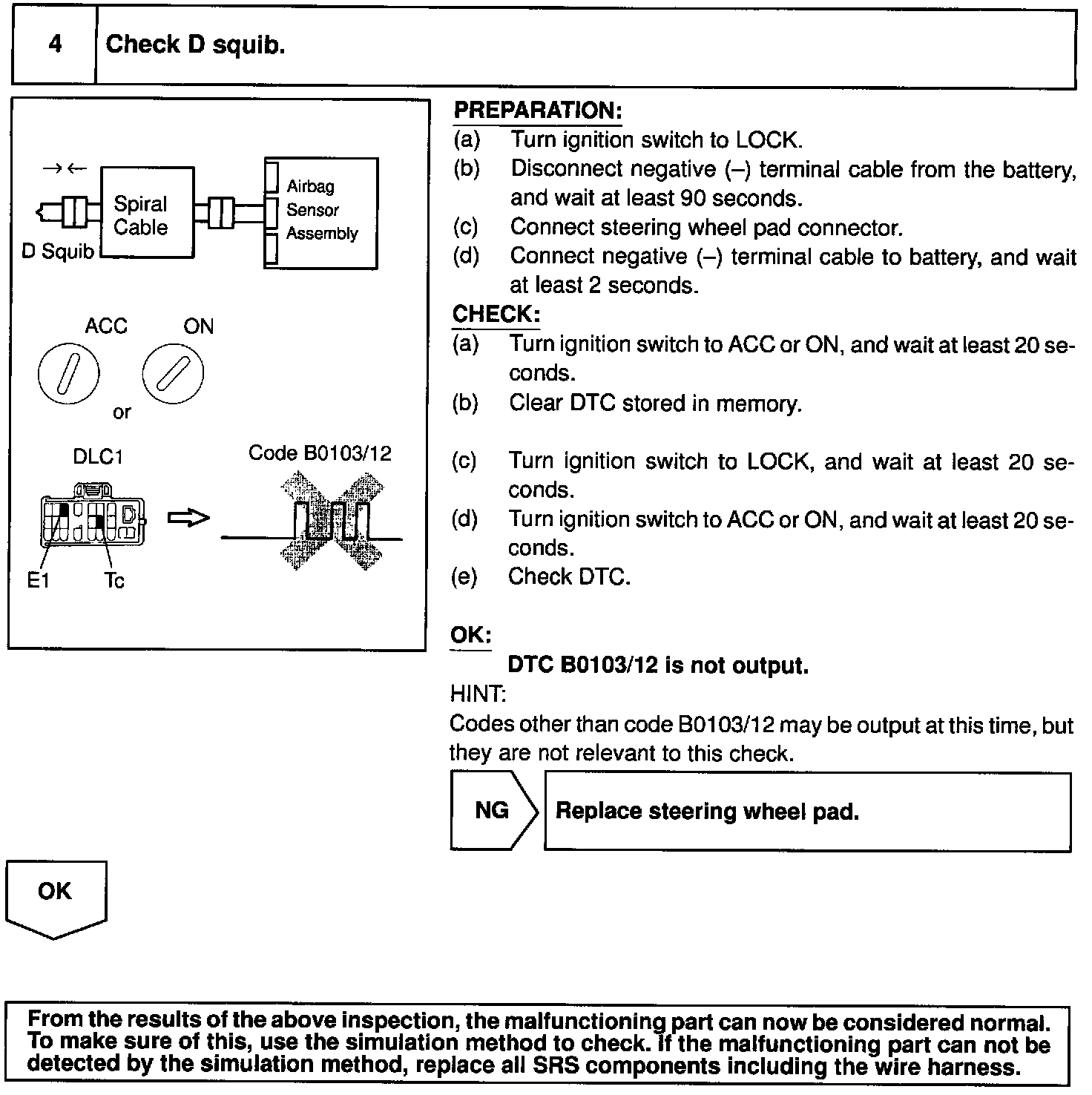

Step 4/Check D squib

B0103/12 (5 Of 6):

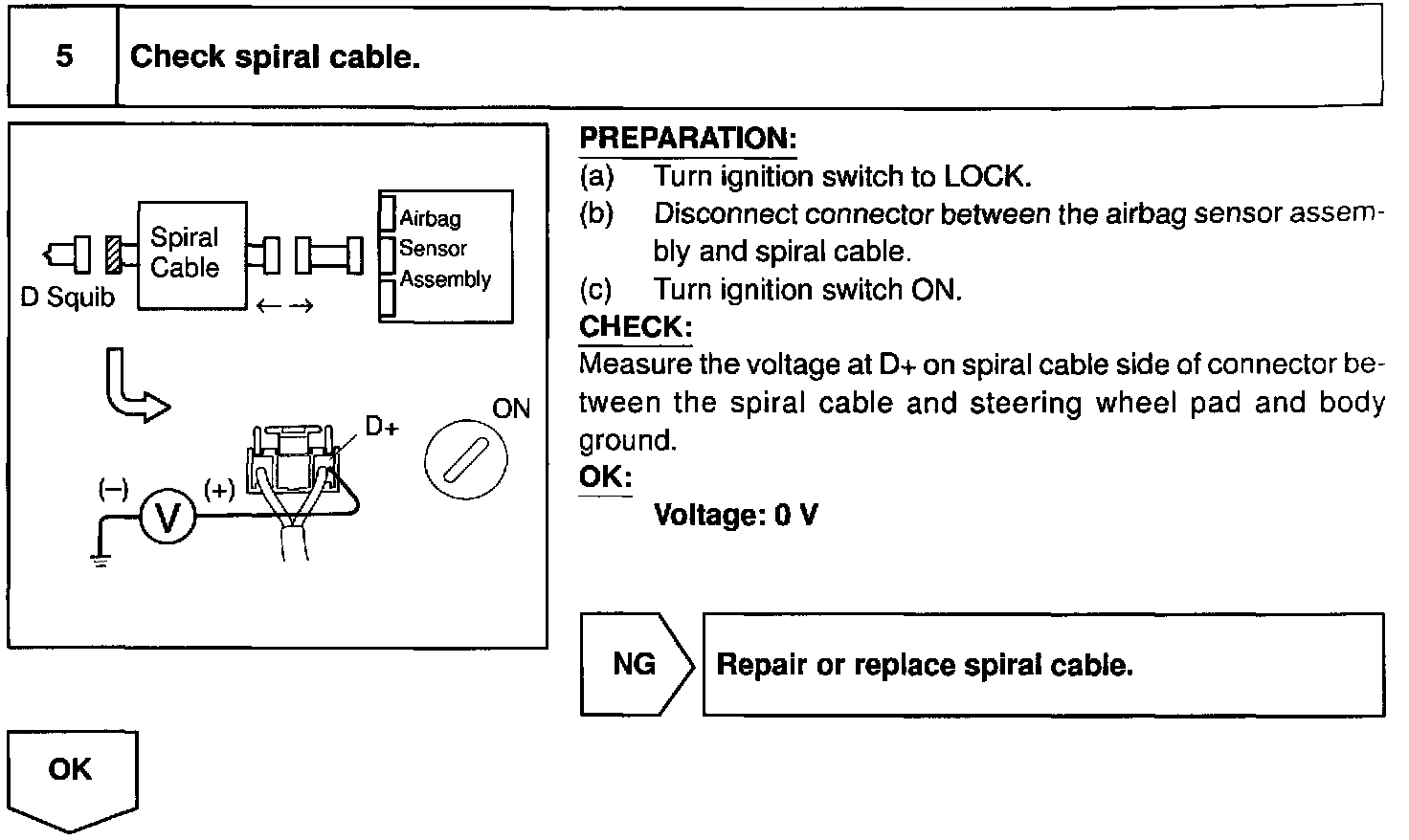

Step 5/Check Spiral Cable

B0103/12 (6 Of 6):

Step 6/Check harness between airbag sensor assembly and spiral cable
