Windshield Washer Spray Nozzle: Adjustments




ADJUST WASHER NOZZLE

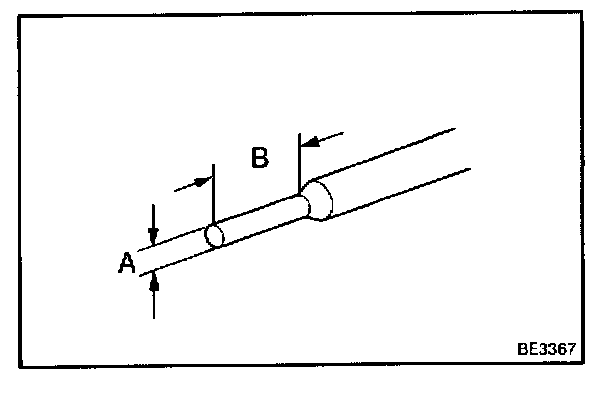

Using a tool like the one shown in the illustration, rotate the nozzle to adjust the fluid direction against the windshield.

A:
U.S.A.: 0.7-0.75 mm (0.028-0.0295 in.)
CANADA: 0.55-0.6 mm (0.0217-0.024 in.)
B: 2.0-2.5 mm (0.079-0.098 in.)
