Underdrive Brake

UNDERDRIVE BRAKE

Components





Underdrive Brake Inspection





1. INSPECT DISCS, PLATES AND FLANGE
Check if the sliding surface of the discs, plates and flanges are worn or burnt. If necessary, replace them.

HINT:

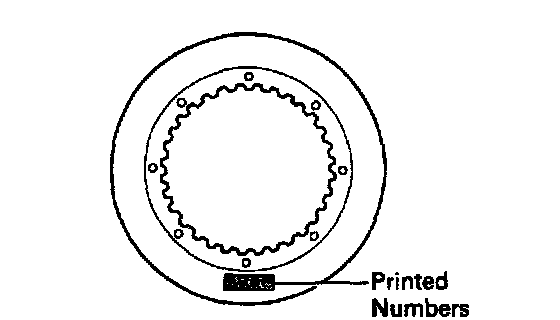

^ If the lining of the disc is peeling off or discolored, or even if a part of the printed numbers are defaced, replace the disc.
^ Before assembling new discs, soak them in ATF for at least 15 minutes.
