Mirrors - Exterior Mirror Assembly Modified

BODY
BO014-99

Title:
EXTERIOR MIRROR ASSEMBLY

Models
'99 Corolla

September 24, 1999

Introduction

Changes have been made to improve the adjustment feel of the Corolla exterior rear view mirror.

Applicable Vehicles

1999 Corolla

Production Change Information

MODEL STARTING VIN

NUMMI 1NXBR12E7XZ183009
TMMC 2T1BR18E7XC187790 (US)
2T1BR12E7XC761071 (CAN)

Parts Information

PREVIOUS PART NUMBER CURRENT PART NUMBER PART NAME

87940-02090 SAME Mirror Assembly (LH)
87910-02O90 SAME Mirror Assembly (RH)

Repair Procedure





Remove the old mirror assembly and install a counter measure mirror assembly.

To identify counter measure parts check the date code of the part. Countermeasure parts have a date code greater than 9048.

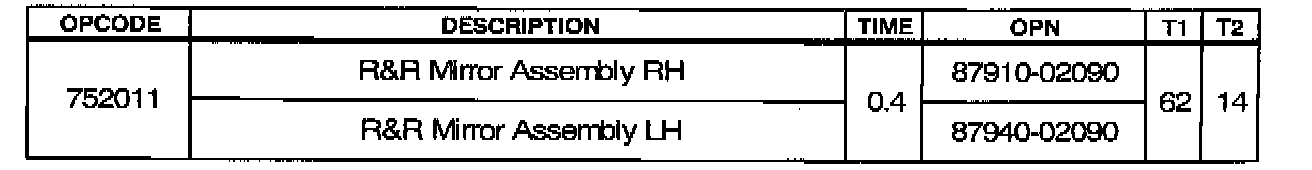

Warranty Information

Applicable Warranty*:
This repair is covered under the Toyota Basic Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date.

* Warranty application is limited to correction of a problem based upon a customer's specific complaint.
